Galilean 광학 시스템( 0.8x – 5.6x 줌 범위)은 향상된 코팅으로 적절한 배율에서 샘플의 종류에 상관없이 최상의 이미지를 제공하기 위해 높은 N.A.와 왜곡을 없앤 다양한 렌즈와 함께 사용되어 집니다.

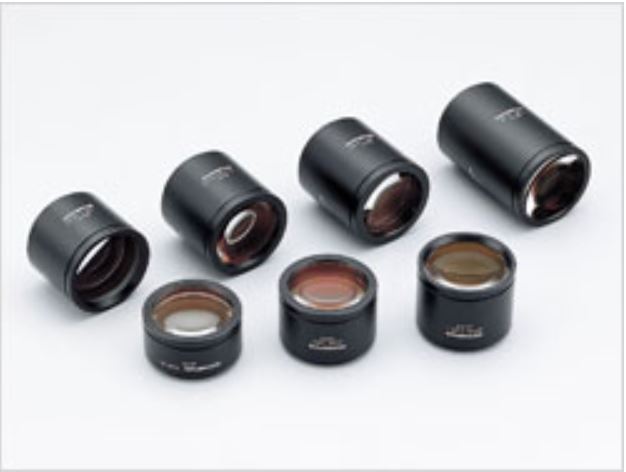

대물 렌즈의 종류
DFPL2x/DPFL1.5x/DFPL 0.75x/DFPL 0.5x
DFPL 렌즈 시리즈는 뛰어난 색 재현성과 샘플의 모양을 정확하게 구현합니다.
DFPLAPO 1.25x /DFPLAP01x-4
색 수차 및 구면 수차를 제거한 가장 높은 성능의 렌즈.
뛰어난 분해능과 contrast, 이미지 평면도와 최소한의 왜곡.
SZX-ACH1.25x /SZX-ACH1x
Long Working Distance와 고분해능을 갖춘 균형잡힌 렌즈
LED 조명 스탠드
Ultra-thin 의 친환경 LED 스탠드는 에너지 효율성을 높혔습니다.
Dual Interlock Light Guide Illuminator
특별히 제작된 광섬유 광원은 스탠드에 직접 결합되어 작업공간을 차지 하지 않습니다. 단독 혹은 더블 방식의 Interlock과 Ring 방식이 있으며, 이 시스템은 오랜 시간 밝은 조명장치로 사용할 수 있습니다.
Stereo microscope System SZX7 | ||||||
Optical System | Galilean Optical System | |||||
Total Magnification | 4.0x-336x*1 | |||||
Zoom Body | Zoom Ratio | 7 (0.8x-5.6x) | ||||
AS | Option | |||||
Observation Tube | Binocular/Trinocular/Tilting Trinocular Observation Tube | |||||
Extendable Eyepoint Adjuster | SZX2-EEPA | |||||
Focus | Stand | |||||
Objective Lens | Magnification | Type | N.A. | W.D. (mm) | Total Magnification | Field Diameter |
*2 *3 | of View (mm)*2 *3 | |||||
0.5x | Plan Achromat | 0.05 | 171 | 4x-28x | Ø55-Ø7.9 | |
0.75x | Plan Achromat | 0.08 | 116 | 6x-42x | Ø36.7-Ø5.2 | |
1x | Plan Apochromat | 0.1 | 81 | 8x-56x | Ø27.5-Ø3.9 | |
Achromat | 0.1 | 90 | 8x-56x | Ø27.5-Ø3.9 | ||
1.25x | Plan Apochromat | 0.13 | 60 | 10x-70x | Ø22-Ø3.1 | |
Achromat | 0.13 | 68 | 10x-70x | Ø22-Ø3.1 | ||
1.5x | Plan Achromat | 0.15 | 45.5 | 12x-84x | Ø18.3-Ø2.6 | |
2x | Plan Achromat | 0.2 | 33.5 | 16x-112x | Ø13.8-Ø2.0 | |
Dimensions (W x D x H) | 194 mm x 253 mm x 403 mm | |||||
Weight | 4.5 kg (in Standard Configularion) | |||||
Remark |
*1 total magnification range possible by combining an objective lens and eyepiece *2 in the case of using eyepiece 10x *3 SZX2-LTTR: intermediate magnification is 1.25X |
