Compact Vision Measuring Machine QM-Fit

Price: Contact

Manufacturer:Mitutoyo

Stock status:Contact

Available on back-order

See more:

Cataloge

Hotline+84 243 202 3000

Specifications

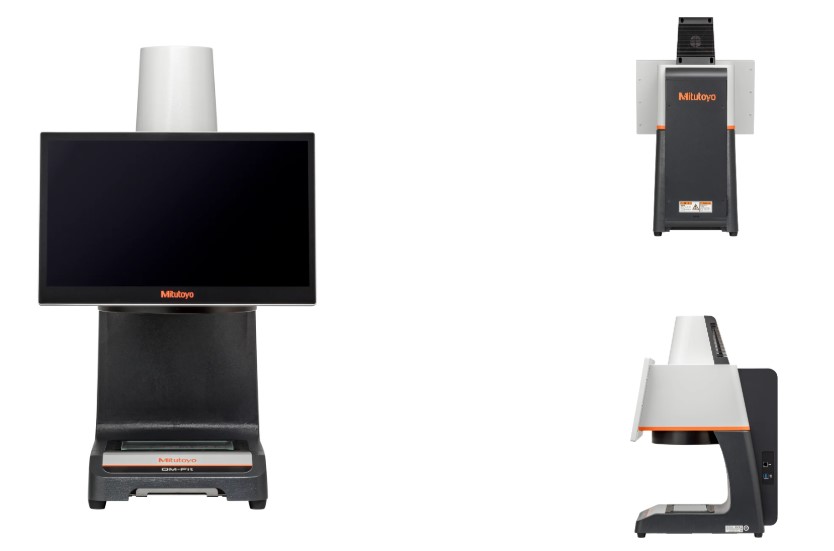

Compact, Desktop-Friendly Design

The QM-Fit is small enough to fit on a desktop yet powerful enough to deliver results comparable to larger measuring machines. It’s a standalone system with integrated PC and monitor that doesn’t require external hardware.

Automatic Element Detection

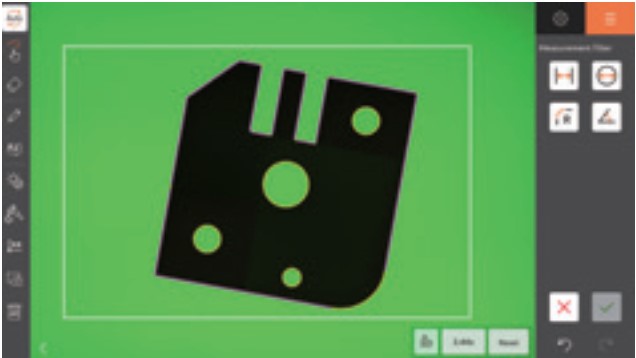

The QM-Fit detects multiple elements at once by automatically recognizing circles, lines and more with a single tap. Measurements can be performed quickly without the need to specify elements one by one in advance.

Caliper Snap

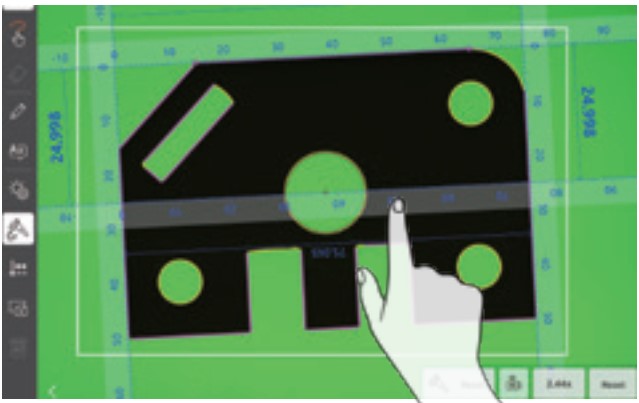

A quick measurement with virtual rulers. The rulers automatically snap to edges or circles when placed close to them. Unlike typical instruments, there is no need to align crosshairs, reducing time and effort.

Long Focal Depth Lens

Always in focus, even on tall surfaces. It clearly displays uneven parts with a height up to 36 mm and with deep depressions and protrusions. The extremely large depth of focus eliminates the need to adjust the focus for individual parts with different heights.

Specification

Measuring range	Measurable range	115 × 75 mm
	Accuracy guaranteed range	90 × 60 mm
	Maximum height	36 mm
Unit of displayed values		mm/inch
Resolution		0.0001/0.001/0.01/0.1/1 mm (Selectable)
Accuracy	Measurement accuracy	±10 μm *1
Accuracy	Repeatability	2σ ≤ 4 μm
Accuracy guaranteed temperature range		20±1 °C
Image sensor		20-megapixel color CMOS camera
Digital magnification		1 to 100 times
Lighting system	Transmitted illumination	Green LED
Lighting system	Ring lighting	8-segment white LED
Measuring table	Stage glass dimensions	154 × 96 mm
Measuring table	Maximum load	10 kg (excluding extremely unbalanced loads and concentrated loads)
Display device		15.6-inch touch panel monitor
External input/output		LAN ×1, USB3.2 ×2
*Power supply2**	Power supply specifications	AC 100 V to 240 V, 50/60 Hz
*Power supply2**	Power consumption	100 W

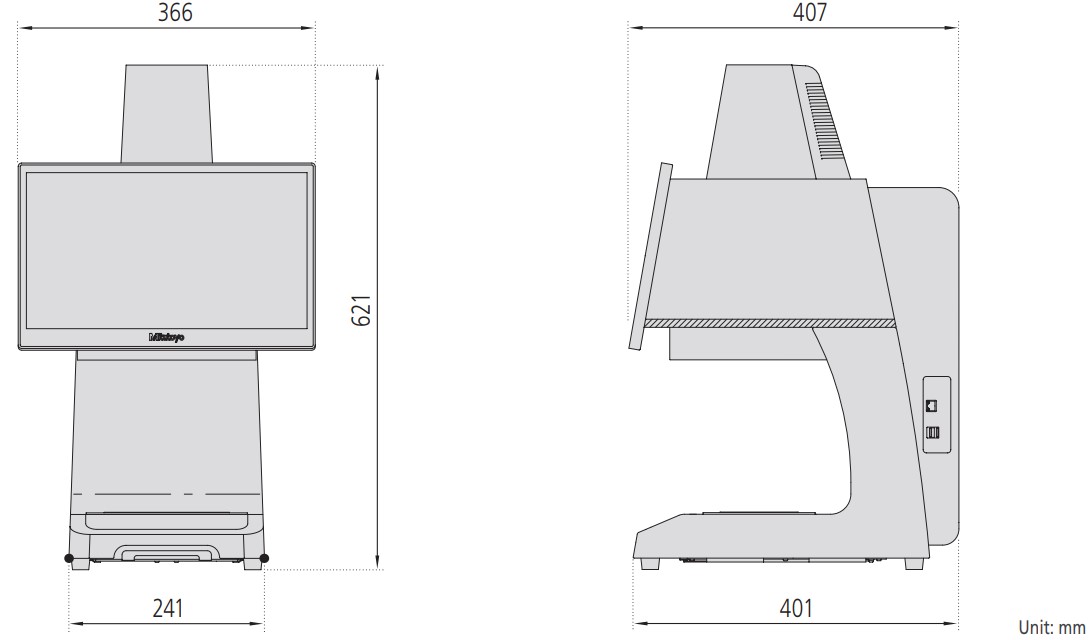

Main unit	External dimensions	366 × 407 × 621 mm
Main unit	Mass	25 kg
