Available on backorder
 |
L:
|
0 mm
|
|
a:
|
6,5 mm
|
|
|
b:
|
25 mm
|
|
|
c:
|
2.5 mm
|
|
Mass:
|
270 g
|
|
Accuracy:
|
Refer to the list of specifications (excluding qunatizing error)
|
|
Data output:
|
No
|
|
Flatness:
|
0,000012″
|
|
Measuring face:
|
Carbide-tipped, micro-lap finish
|
|
Maximum Permissible Error J MPE:
|
±0,00005″
|
|
Parallelism:
|
0,00004″ mm
|
|
Digital step:
|
0,00005″/0,001 mm (up to 4″) /0,0001″/0,001 mm(over 4″)
|
|
Battery life:
|
Approx. 2,4 years for models ≤4″
1,2 years for >4″ |
|
Delivered:
|
Including box, key, 1 battery, setting standard (from 1″ upward)
certificate of inspection (0-2″) |
|
ORIGIN (until 100 mm):
|
Yes
|
|
HOLD:
|
Yes
|
|
2 x PRESET (over 100 mm):
|
Yes
|
|
Function lock (over 100 mm):
|
Yes
|
|
ZERO/ABS:
|
Yes
|
|
Auto Power OFF
after 20 min. non use: |
Yes
|
|
Low voltage alarm:
|
Yes
|
|
Function lock:
|
Yes
|
|
Digital/Analog:
|
Digital
|
|
Inch-Metric:
|
Inch/Metric
|
|
Measuring spindle:
|
With spindle lock, ø6,35 mm, spindle pitch 0,635 mm
|
|
Functions:
|
With ratched stop
|
|
Delivered:
|
Including box, key, 1 battery, setting standard (from 1″ upward)
certificate of inspection (0-2″) |
|
Parallelism:
|
0,00004″
|
|
Scale:
|
Thimble and sleeve satin chrome finish, ø18 mm
|

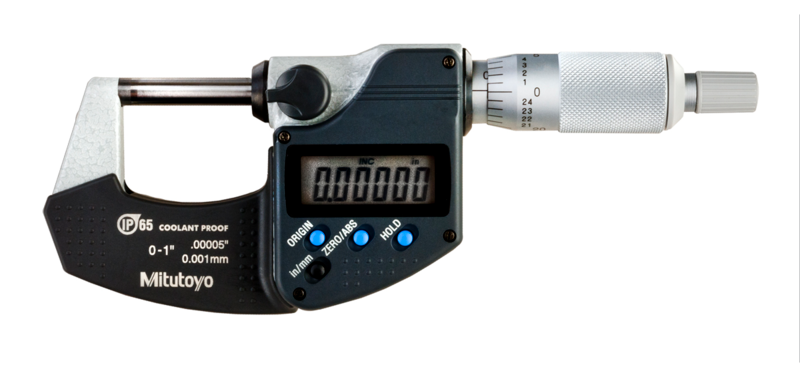

This IP65 Micrometer offers outstanding accuracy, with and without data output, is highly robust and offers the following benefits:
