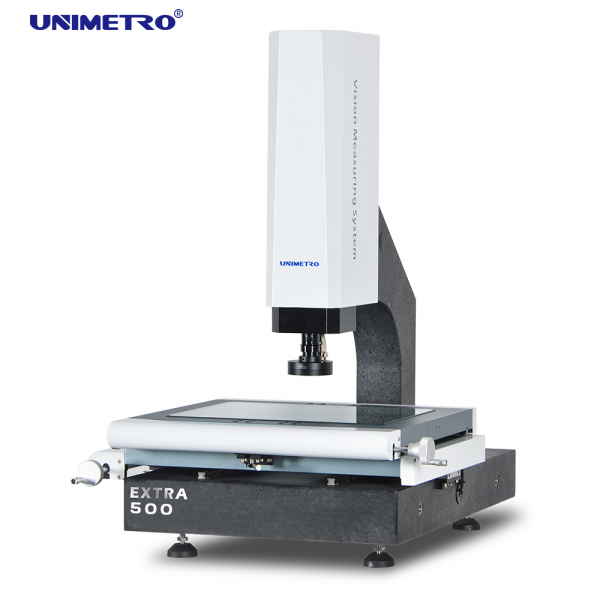

EXTRA500 –UNIMETRO Vision measuring machine
The EXTRA series manual vision measurement machine provides extra measuring function and user experience to customers over normal vision measuring products. The series configured with a servo motor in Z axis, including a manual pulse generator for fine positioning fine adjusting, also with an autofocus function, which highly increases the measuring process efficiency and end-user experience.
Smart design
For the EXTRA series machines, a mechanical design we are following the concept of lightweight, smart, and compact, in the meantime keeps the rigidity and stability. With the lowest space occupation offers the highest measuring range.
High accuracy transition system
The EXTRA series is using high accuracy linear slideway, which is totally different from the cross slideway used for other manual VMM, ensures much more stable and accurate transmitting of the work stage, also voiding the potential risk of the shorten traveling range caused by the cross slideway.
3D measuring function
Working with the Unimetro professional 3D measuring software, the EXTRA series VMM will provide a strong 3D measuring function, which becomes a powerful 2D/3D composite measuring device with an extremely reasonable price.
SPECIFICATION
| Items | EXTRA500 | |
| Dimension(mm)(L*W*H) | 800*940*980 | |
| Measuring range(mm)(X*Y*Z) | 500*400*200 | |
| Measuring Accuracy (μm) | 3+L/100 | |
| Repeatability (μm) | 3 | |
| Weight (kg) | 290kg | |
| Image and Measuring | CCD | 1.2million pixel digital camera |
| Lens | Manual dented zoom lens with magnification signal feedback 0.7-4.5X | |
| Magnification | 18-195X(For reference only. With different camera and lens the magnification will be different) | |
| Field of view | 8.1~1.3mm(For reference only, with different camera and lens combination, the value will be different) | |
| Working distance | 90mm | |
| Linear scale resolution | 0.5μm | |
| Driving system | X/Y axis manual control, Z-axis CNC full closed-loop motion (including autofocus function) | |
| Illumination | Programmable LED4-zone ring surface light, LED bottom parallel light (optional: 8-zone ring light, coaxial light) | |
Unimetro Metrology has more than 10 years of Vision Measurement Machines, Vision Measuring System, Coordinates Measurement Machine, Tool Measuring system and Profile Projector R&D and manufacturing experience. We focus on medium high level of metrology products, offers complete high accuracy measuring solutions for customers. Our products are sold to many countries and district, including Korea, India, Australia, US, Vietnam, Europe district, etc... The Unimetro products are widely used in different industries and laboratory in these countries, such as precise manufacturing, electronic, medical care, aviation etc...R&DUnimetro Metrology has strong team of R&D, both for software and hardware developing. Special application projects and customization are both available. We have specialists team in the metrology industry and capability of offering flexible measuring solutions to our customers and dealers.
