Available on back-order
|
Accuracy:
|
±4 µm
|
|
Flatness:
|
0,6 µm (spindle), 2 µm (anvil)
|
|
Anvils included:
|
201217 (Cylindrical Anvil D=3 mm) 201216 (Flat Anvil)
|
|
Mass:
|
335 g
|
|
Range:
|
0 – 25 mm
|
|
Accuracy:
|
Refer to the list of specifications (excluding quantizing error)
|
|
Spindle feed error:
|
3 µm
|
|
Measuring face:
|
Carbide-tipped micro-lap finish spindle and hardened steel anvil
|
|
Battery life:
|
Approx. 2,4 years
|
|
Maximum Permissible Error J MPE:
|
±4 µm
|
|
Parallelism:
|
3 μm mm
|
|
Digital step:
|
0,001 mm
|
|
Battery life:
|
Approx. 2,4 years
|
|
Delivered:
|
Including box, gauge block; (from 25 mm upward),
key, 1 battery |
|
Delivered:
|
Including box, setting standard (from 25 mm upward), key, 1 battery, anvils
|
|
HOLD:
|
Yes
|
|
ORIGIN:
|
Yes
|
|
ZERO/ABS:
|
Yes
|
|
Auto Power OFF
after 20 min. non use: |
Yes
|
|
Data output:
|
Yes
|
|
Low voltage alarm:
|
Yes
|
|
Function lock:
|
Yes
|
|
Digital/Analog:
|
Digital
|
|
Inch-Metric:
|
Metric
|
|
Parallelism:
|
3 μm
|
|
Measuring spindle:
|
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
|
|
Parallelism:
|
3 μm
|
|
Scale:
|
Thimble and sleeve satin chrome finish, ø18 mm
|

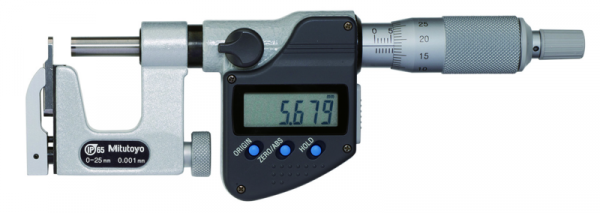

This Digimatic Micrometer Interchangeable Anvil Type lets you measure a range of different features. It offers the following benefits:
