    MPLFLN
Objective Lens For Microscope<br> MPLFLN

Objective Lens For Microscope
MPLFLN

Contact
MPLFLN
Olympus
Contact

Available on back-order

Buy
+84 243 202 3000

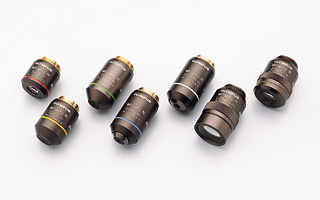

The MPLFLN objective lens has well balanced performance with a semi apochromat color correction, a fair working distance and a high numerical aperture and is suitable for the widest range of applications.

M Plan SemiApochromat – MPLFLN

  • Objective lenses dedicated to brightfield
  • Plan semi-apochromat objective lenses corrected for chromatic aberration at a high level
  • A line-up of objective lenses from 1.25x through 100x with working distance of 1mm or more
  • Unified pupil position from 5x though 100x to eliminate the need for switching DIC prism when changing objective lenses *1

*1: 1.25x and 2.5x lenses require the use an analyzer and polarizer.

Specifications

Magnification [X] 1.25 2.5 5 10 20 50 100
Numerical aperture (NA) 0.04 0.08 0.15 0.3 0.45 0.8 0.9
Working distance (WD) [mm] 3.5 10.7 20 11 3.1 1 1
Objective Field Number 22 26.5 26.5 26.5 26.5 26.5 26.5
Immersion medium Air/Dry Air/Dry Air/Dry Air/Dry Air/Dry Air/Dry Air/Dry
Spring loaded N/A N/A N/A N/A N/A N/A N/A
Correction collar N/A N/A N/A N/A N/A N/A N/A
Correction range of correction collar N/A N/A N/A N/A N/A N/A N/A
Iris N/A N/A N/A N/A N/A N/A N/A
Correction level of chromatic aberration Semi-apochromat Semi-apochromat Semi-apochromat Semi-apochromat Semi-apochromat Semi-apochromat Semi-apochromat
(FL) (FL) (FL) (FL) (FL) (FL) (FL)
Parfocalizing distance [mm] 45 45 45 45 45 45 45
Back focal plane (BFP) position – – -8 -8 -8 -8 -8
Type of screw thread W20.32X0.706(RMS) W20.32X0.706(RMS) W20.32X0.706(RMS) W20.32X0.706(RMS) W20.32X0.706(RMS) W20.32X0.706(RMS) W20.32X0.706(RMS)
Brightfield(Reflected) Good Good Good Good Good Good Good
Brightfield(Transmitted) Good Good Good Good Good Good Good
Darkfield(Reflected) N/A N/A N/A N/A N/A N/A N/A
Darkfield(Transmitted) N/A N/A N/A N/A N/A N/A N/A
DIC(Reflected) N/A N/A Good Good Good Good Good
DIC(Transmitted) N/A N/A N/A N/A N/A N/A N/A
Phase Contrast N/A N/A N/A N/A N/A N/A N/A
Relief Contrast N/A N/A N/A N/A N/A N/A N/A
Polarized Light N/A N/A Limitation Limitation Limitation Limitation Limitation
Fluorescence (B, G Excitation) N/A N/A Good Good Good Good Good
UV Fluorescence (at 365nm) N/A N/A Good Good Good N/A N/A
Multiphoton N/A N/A N/A N/A N/A N/A N/A
TIRF N/A N/A N/A N/A N/A N/A N/A
IR N/A N/A N/A N/A N/A N/A N/A
WLI N/A N/A N/A N/A N/A N/A N/A
Auto Focus N/A N/A Good Good Good Good Good

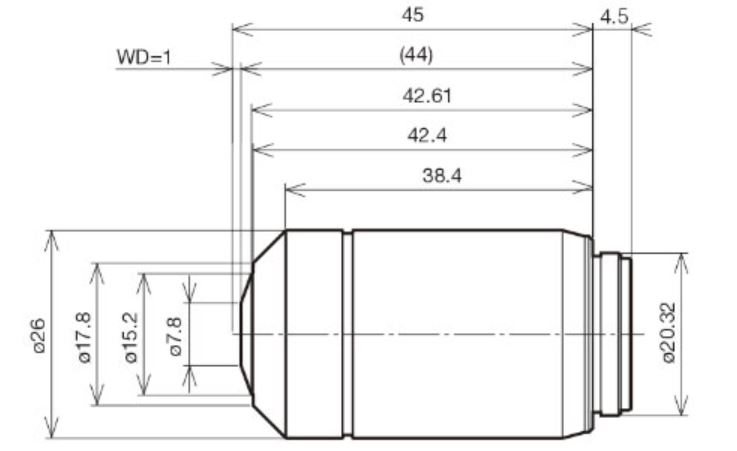

Dimensions
