The MPLFLN-BD lens has semi apochromat color correction and is suitable for the widest range of applications. Especially designed for darkfield observation and the examination of scratches or etchings on polished surfaces.

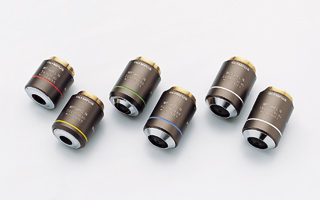

M Plan Semi-Apochromat – MPLFLN-BD

  • Designed for brightfield, darkfield, DIC (differential interference contrast), fluorescence and simple polarized light observation methods
  • Plan semi-apochromat objective lens corrected for chromatic aberration for maximum performance for even for the most challenging materials science applications
  • Complete line-up of magnifications ranging from 5x through 150x. Standard pupil position allows for the use of a single DIC prism for all objective lenses (5x-150x)

Specifications

Magnification [X] 5 10 20 50 100 150
Numerical aperture (NA) 0.15 0.3 0.45 0.8 0.9 0.9
Working distance (WD) [mm] 12 6.5 3 1 1 1
Objective Field Number 26.5 26.5 26.5 26.5 26.5 26.5
Immersion medium Air/Dry Air/Dry Air/Dry Air/Dry Air/Dry Air/Dry
Spring loaded N/A N/A N/A N/A N/A N/A
Correction collar N/A N/A N/A N/A N/A N/A
Correction range of correction collar N/A N/A N/A N/A N/A N/A
Iris N/A N/A N/A N/A N/A N/A
Correction level of chromatic aberration Semi-apochromat Semi-apochromat Semi-apochromat Semi-apochromat Semi-apochromat Semi-apochromat
(FL) (FL) (FL) (FL) (FL) (FL)
Parfocalizing distance [mm] 45 45 45 45 45 45
Back focal plane (BFP) position -8 -8 -8 -8 -8 -8
Type of screw thread W26X0.706 W26X0.706 W26X0.706 W26X0.706 W26X0.706 W26X0.706
Brightfield(Reflected) Good Good Good Good Good Good
Brightfield(Transmitted) Good Good Good Good Good Good
Darkfield(Reflected) Good Good Good Good Good Good
Darkfield(Transmitted) N/A N/A N/A N/A N/A N/A
DIC(Reflected) Good Good Good Good Good Good
DIC(Transmitted) N/A N/A N/A N/A N/A N/A
Phase Contrast N/A N/A N/A N/A N/A N/A
Relief Contrast N/A N/A N/A N/A N/A N/A
Polarized Light Limitation Limitation Limitation Limitation Limitation Limitation
Fluorescence (B, G Excitation) Good Good Good Good Good Good
UV Fluorescence (at 365nm) Good Good Good N/A N/A N/A
Multiphoton N/A N/A N/A N/A N/A N/A
TIRF N/A N/A N/A N/A N/A N/A
IR N/A N/A N/A N/A N/A N/A
WLI N/A N/A N/A N/A N/A N/A
Auto Focus Good Good Good Good Good Good
