Available on back-order
|
Range:
|
0-24″/0-600 mm
|
|
Accuracy:
|
±(2,4+2,1L/600) µm
L = Measuring length (mm) |
|
Repeatability:
|
(2σ) ≤ 1,8 µm
|
|
Air floating:
|
no
|
|
Perpendicularity:
|
12 µm
|
|
Data output:
|
Yes
|
|
Mass:
|
26 kg
|
|
Scale:
|
ABSOLUTE electromagnetic inductive
|
|
Measuring force:
|
1.5 ± 0.5 N
|
|
Guiding
method: |
Roller bearing
|
|
Measuring function:
|
1D measurement: height diameter, pitch, Max/Min/TIR (Max-Min), tolerance, preset, data memory
|
|
Drive method:
|
Manual
|
|
Sliding method:
|
Roller bearing
|
|
Measuring force:
|
1.5 N ± 0.5 N
|
|
Power supply:
|
Alkaline battery size AA LR6 (4pcs.), rechargeable battery size AA Ni-MH (4pcs.),
AC-Adapter (optional) |
|
Digital step:
|
0,00005/0,0001/0,0002″ or 0,001/0,005 mm
|
|

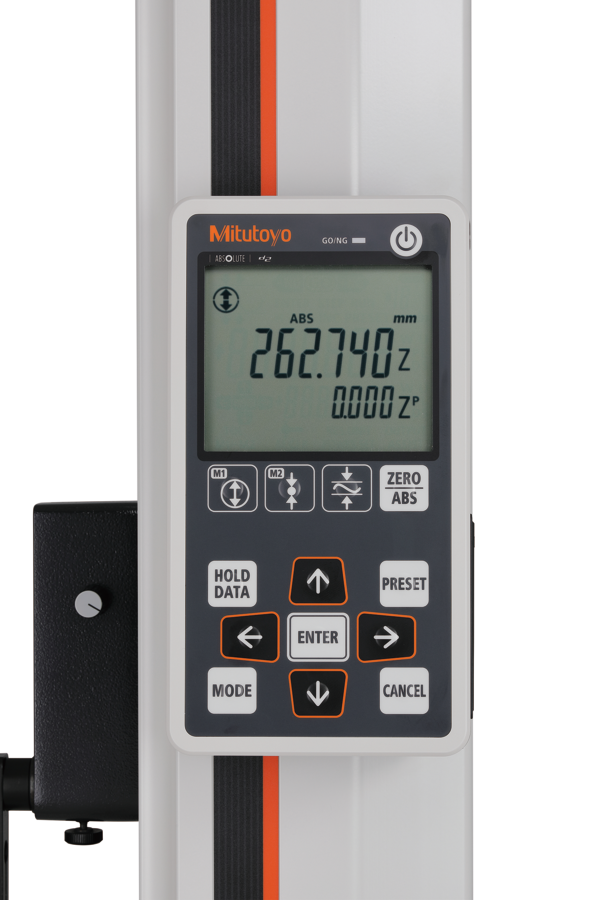

Display:
|
TN monochrome LCD
|
|
Battery life:
|
Approx. 1200 h
(without air floating) Approx. 90 h (with air floating) |
|
Delivered:
|
Including 4 batteries, setting block, ball offset probe
|
|
Digital/Analog:
|
Digital
|
|
Inch-Metric:
|
Inch/Metric
|
This is a high precision ABSOLUTE Digital Height Gauge that offers you the following benefits:
