Available on back-order
 |
L:
|
25 mm
|
|
b:
|
11.1 mm
|
|
|
c:
|
32.9 mm
|
|
|
a:
|
16 mm
|
|
Accuracy:
|
±6 µm
|
|
Mass:
|
340 g
|
|
Flatness:
|
0,3 µm
|
|
Range:
|
25 – 50 mm
|
|
Accuracy:
|
Refer to the list of specifications (excluding quantizing error)
|
|
Measuring face:
|
Carbide-tipped, micro-lap finish
|
|
Delivered:
|
Including box, setting standard (from 25 mm upward), key, 1 battery
|
|
Maximum Permissible Error J MPE:
|
±6 µm
|
|
Parallelism:
|
4 µm mm
|
|
Digital step:
|
0,001 mm
|
|
Spindle pitch:
|
Ø 6.35 mm, spindle pitch 0.5 mm
|
|
Battery life:
|
Approx. 2,4 years
|
|
Battery life:
|
Approx. 2,4 years
|
|
HOLD:
|
Yes
|
|
ORIGIN:
|
Yes
|
|
ZERO/ABS:
|
Yes
|
|
Auto Power OFF
after 20 min. non use: |
Yes
|
|
Data output:
|
Yes
|
|
Low voltage alarm:
|
Yes
|
|
Function lock:
|
Yes
|
|
Digital/Analog:
|
Digital
|
|
Inch-Metric:
|
Metric
|
|
Parallelism:
|
(3+L/75) µm,
L = max. range (mm) |
|
Measuring spindle:
|
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
|
|
Parallelism:
|
3 µm
|
|
Scale:
|
Thimble and sleeve satin chrome finish, ø18 mm
|

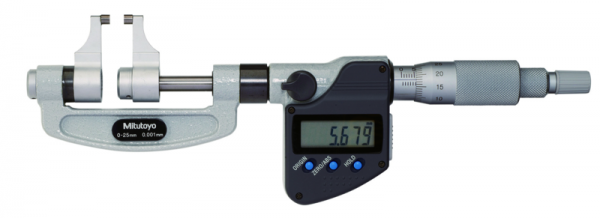

This Digimatic Caliper Jaw Micrometer has been specially designed for measuring in hard-to-reach places.
