UCMOS is an ultra-high performance CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface. UCMOS hardware resolutions ranges from 0.35M to 14M and comes with the Integrated zinc aluminum alloy compact housing. UCMOS comes with advanced video & image processing application ToupView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API; The UCMOS can be widely used in bright field light environment and microscope image capture and analysis with moderate frame rate.
The basic characteristic of UCMOS cameras are as follows:
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Responsivity Dynamic range SNRmax |
FPS/Resolution | Binning | Exposure |
| UCMOS03100KPA TP603100A |
3.1M/MT9T001(C) 1/2“ (6.55×4.92) |
3.2×3.2 | 1.0 V/lux-sec 61dB 43dB |
8@2048×1536 22@1024×768 43@680×510 |
1×1, 2×2, 3×3 | 0.244ms~2000ms |
| OTHER HARDWARE CONFIGURATION | |
|---|---|
| Spectral Range | 380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used |
| White Balance | ROI White Balance/ Manual Temp-Tint Adjustment |
| Color Rendering Technique | Ultra Fine Color Engine |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc); |
| Recording System | Still Picture and Movie |
| Cooling System* | Natural |
| OPERATING ENVIRONMENT | |
| Operating Temperature | -10 °C~ 50 °C |
| Storage Temperature | -20 °C~ 60 °C |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 5V over PC USB Port |
| SOFTWARE ENVIRONMENT | |
| Operating System | Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit) OS X (Mac OS X), Linux |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
| Memory: 2GB or More | |
| USB port: USB2.0 High-speed Port | |
| Display: 17″ or Larger | |
| CD-ROM | |

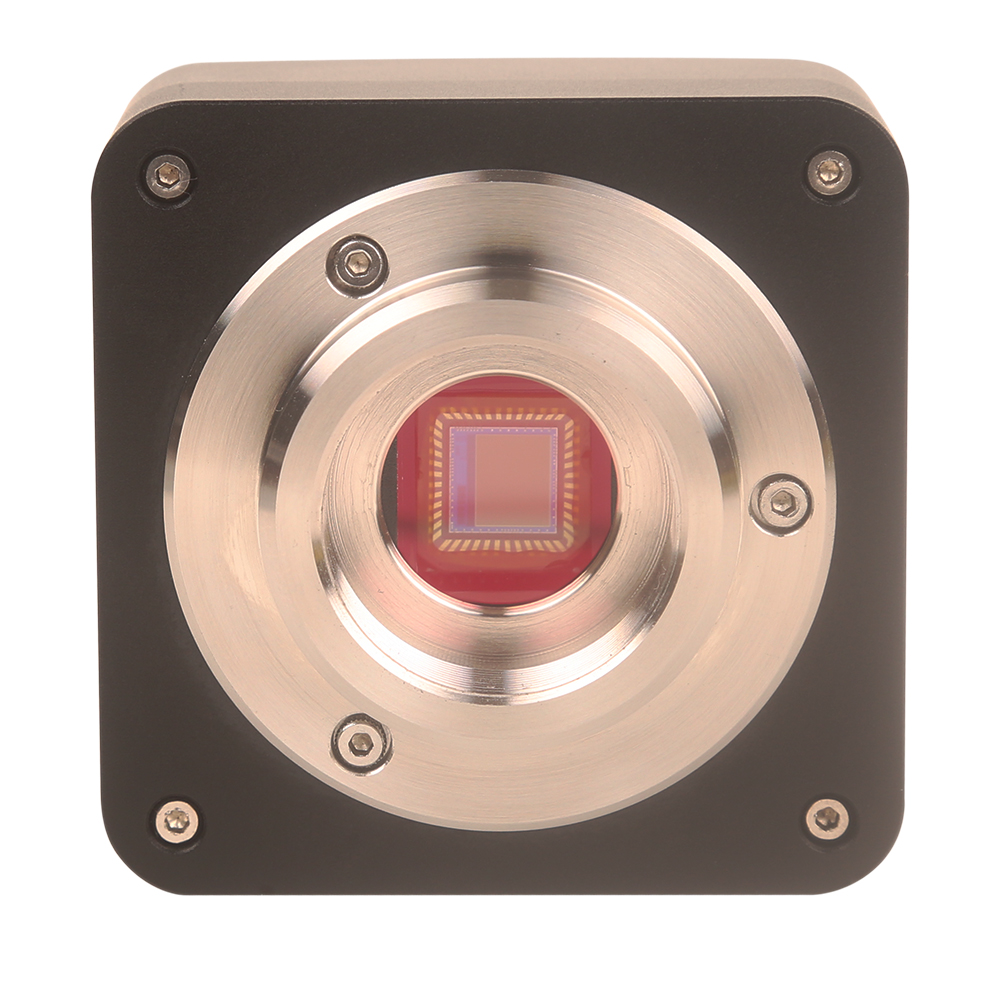

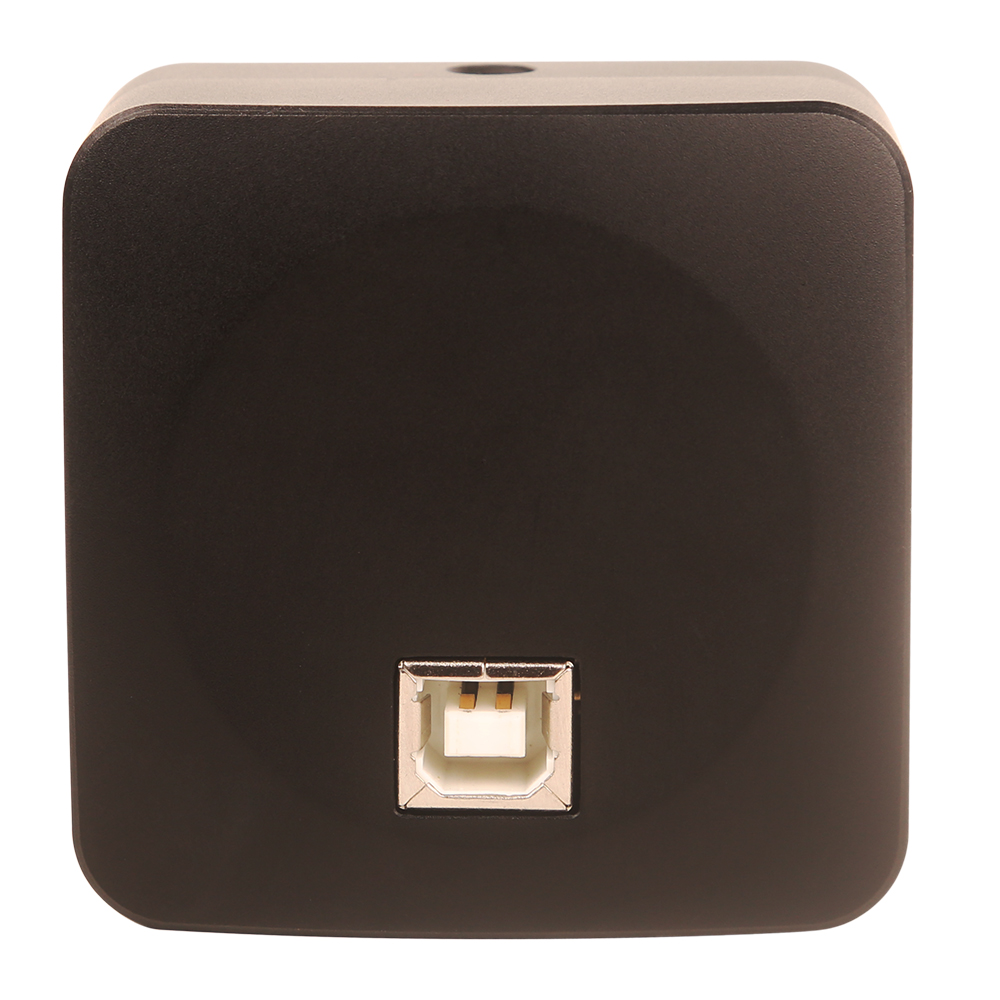

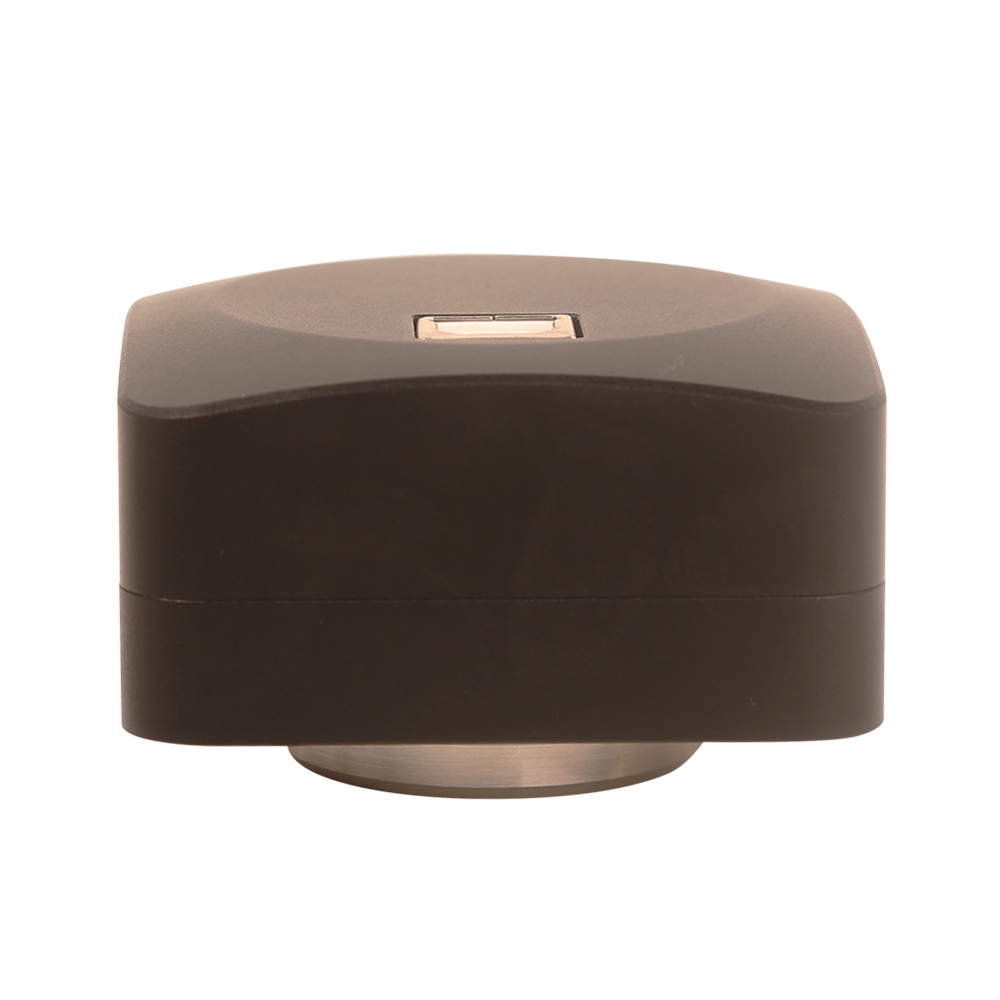

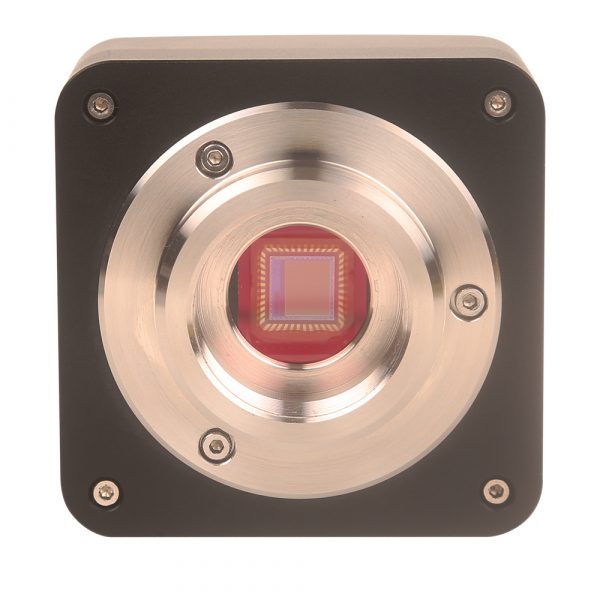

The UCMOS Series USB2.0 Camera body, made from tough, CNC alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased life span when compared to other industrial camera solutions.
