Available on backorder
ToupTek UHCCD is an ultra-high performance Super HAD CCD camera. The camera adopts Sony Super HAD CCD sensor as the image-picking device; The Super HAD CCD is a version of Sony’s high performance CCD HAD (Hole-Accumulation Diode) sensor with sharply improved sensitivity by the incorporation of a new semiconductor technology developed by Sony Corporation. USB2.0 is used as the data transfer interface. UHCCD comes with advanced video & image processing application ToupView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API; The UHCCD can be widely used in bright field light environment and microscope image capture and analysis.
The UHCCD’s basic characteristic is as follows:
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal |
FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| UHCCD05200KPA TP705200A |
ICX655AQ(C) 2/3″(8.44×7.07) |
3.45×3.45 | 420mv with 1/30s 4mv with 1/30s |
4.3@2448×2050 10.5@960×720 |
1×1 | 0.22ms~60s |
| UHCCD05100KPA TP705100A |
ICX452AQ(C) 1/1.8″(7.19×5.39) |
2.775×2.775 | 260mv with 1/30s 16mv with 1/30s |
4@2592×1944 35@560×420 |
1×1, 2×2 |
0.212ms~77ms |
| UHCCD05000KPA TP705000A |
ICX282AQ(C) 2/3″ (8.70×6.53) |
3.4×3.4 | 280mv with 1/30s 16mv with 1/30s |
4.5@2560×1920 9@1280×960 |
1×1, 2×2 |
0.203ms~60ms |
| UHCCD03100KPB TP703100B |
ICX252AQ(C) 1/1.8″(7.06×5.30) |
3.45×3.45 | 270mv with 1/30s 12mv with 1/30s |
6@2048×1536 41@640×480 |
1×1,2×2 | 0.178ms~77ms |
| UHCCD02000KPA TP702000A |
ICX274AQ(C) 1/1.8″ (7.04×5.28) |
4.40×4.40 | 420mv with 1/30s 8mv with 1/30s |
10@1600×1200 | 1×1 | 0.135ms~60s |
| UHCCD01400KPA TP7051400A |
ICX205AK(C) 1/2″(6.32×4.76) |
4.65×4.65 | 400mv with 1/30s 16mv with 1/30s |
8@1360×1024 | 1×1 | 0.227ms~60s |
| UHCCD01400KPB TP701400B |
ICX205AK(C) 1/2″ (6.32×4.76) |
4.65×4.65 | 400mv with 1/30s 16mv with 1/30s |
15@1360×1024 | 1×1 | 0.127ms~60s |
| UHCCD01400KMB TM701400B |
ICX205AK(M) 1/2″ (6.32×4.76) |
4.65×4.65 | 450mv with 1/30s 16mv with 1/30s |
15@1360×1024 | 1×1 | 0.127ms~60s |
| UHCCD00800KPA TP700800A |
ICX204AK(C) 1/3″ (4.76×3.57) |
4.65×4.65 | 400mv with 1/30s 16mv with 1/30s |
16@1024×768 | 1×1 | 0.16ms~60s |
| OTHER HARDWARE CONFIGURATION | |
|---|---|
| Spectral Range | 380-650nm (with IR-Cut filter), for Monochromatic Camera, AR Is Used |
| White Balance | ROI White Balance/ Manual Temp-Tint Adjustment |
| Color Rendering Technique | Ultra Fine Color Engine |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc); |
| Recording System | Still Picture and Movie |
| Cooling System* | Natural |
| OPERATING ENVIRONMENT | |
| Operating Temperature | -10 °C~ 50 °C |
| Storage Temperature | -20 °C~ 60 °C |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 5V over PC USB Port |
| SOFTWARE ENVIRONMENT | |
| Operating System | Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit) OS X (Mac OS X), Linux |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
| Memory: 2GB or More | |
| USB port: USB2.0 High-speed Port | |
| Display: 17″ or Larger | |
| CD-ROM | |

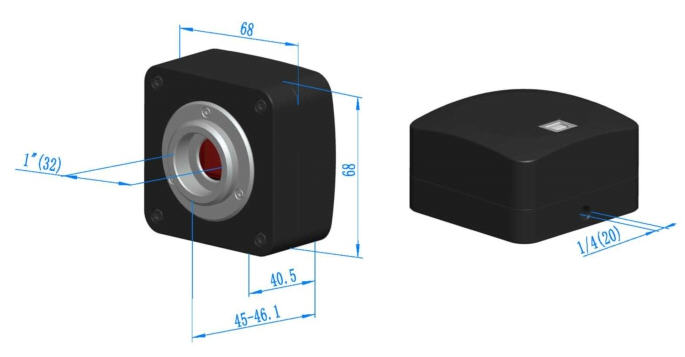

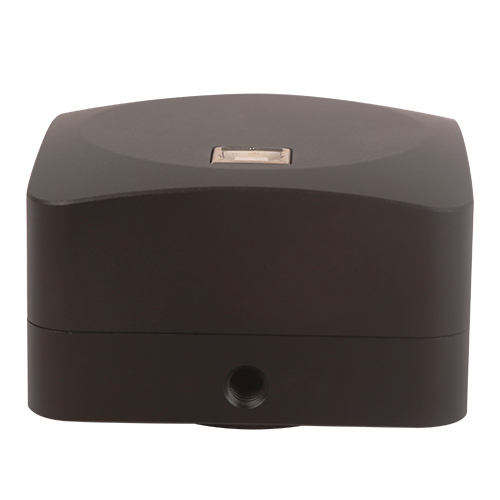

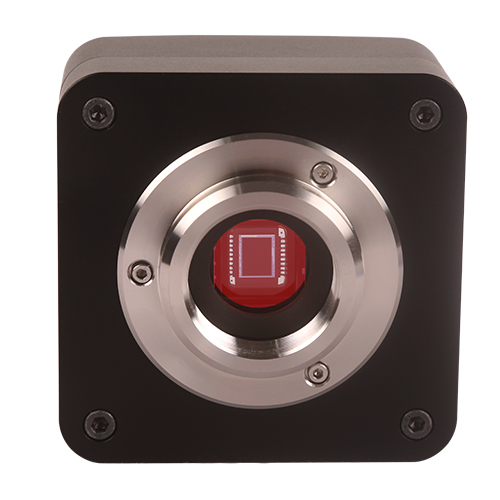

The UHCCD Series USB2.0 CCD Camera body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
