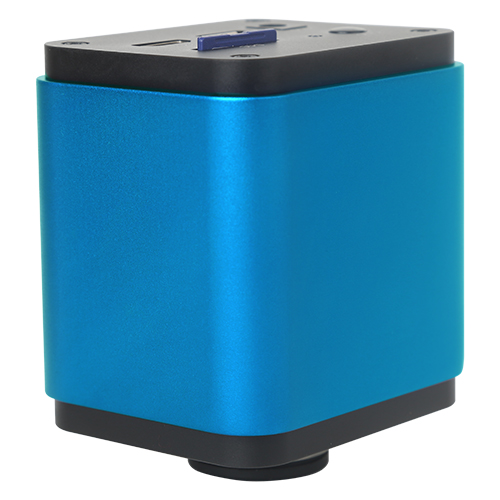

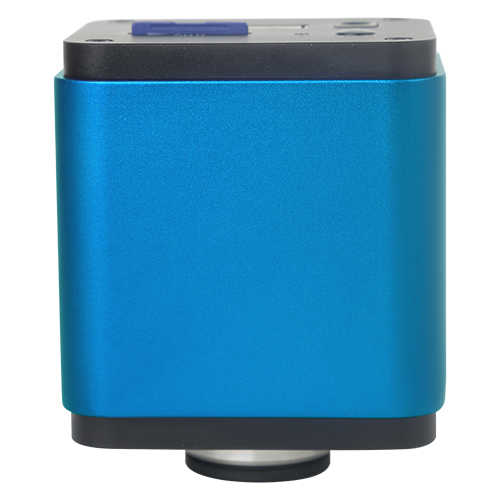

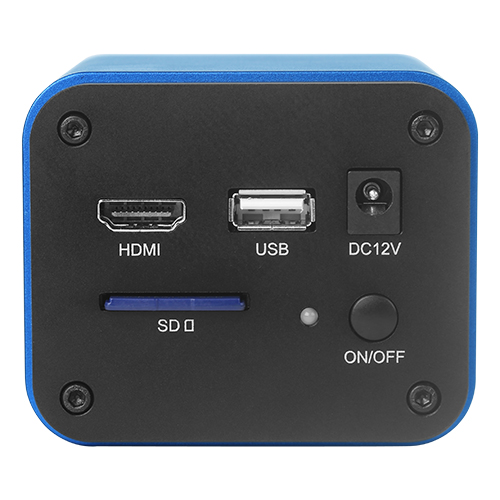

XCAM1080PHB/PHD/PHE is a multiple interfaces (HDMI+WiFi+SD card, so X here means multiple interfaces) CMOS camera and it adopts ultra-high performance Sony CMOS sensor as the image-picking device. HDMI+WiFi are used as the data transfer interface to HDMI display or computer.
For HDMI output, The XCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI screen, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video ital.
For WiFi output, unplug the mouse and plug in the USB WiFi adapter, connect the computer WiFi to the camera, then the video stream can be transfer to computer with the advanced software ToupView. With ToupView, you can control the camera, process the image as ToupTek’s other USB series camera.
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal |
FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| XCAM1080PHB XP1080B |
1080P/5M/ Sony IMX178(C) 1/1.8″(6.22×4.67) |
2.4×2.4 | 425 mv with 1/30s 0.15 mv with 1/30s |
30@1920×1080 (HDMI) 25@1920×1080 (WiFi) |
1×1 | 0.03ms~918ms |
| HDMI Output | |||||
|---|---|---|---|---|---|
| UI Operation | With USB Mouse | ||||
| Image Capture | JPEG Format with 5M Resolution (2592*1944) in SD Card(8G) (XAM1080PHB) JPEG Format with 2M Resolution in SD Card (XCAM1080PHD/PHE(Global Shutter for PHE)) |
||||
| Video Record | ASF Format 1080P 30fps in SD Card | ||||
| Camera Control Panel | Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control |
||||
| Toolbar | Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function |
||||
| WiFi Output | |||||
| UI Operation | ToupView or ToupLite on Windows/Linux/OSX/Android Platform | ||||
| WiFi Performance | 802.11n 150Mbps; RF Power 20dBm(Maximum) | ||||
| Maximum Connected Devices | 3~6(According to the Environment and Connection Distance) | ||||
| White Balance | Auto White Balance | ||||
| Color Technique | Ultra-Fine Color Engine (WiFi) | ||||
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) (WiFi) | ||||
| Recording System | Still Picture or Movie (WiFi) | ||||
| Software Environment (for USB2.0 Connection) | |||||
| Operating System | Microsoft® Windows® XP /Vista /7/8/8.1/10(32 & 64 bit) OSx(Mac OS X) Linux |
||||
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher | ||||
| Memory: 4GB or More | |||||
| USB Port: USB2.0 High-speed Port | |||||
| Display: 19” or Larger | |||||
| CD-ROM | |||||
| Operating Environment | |||||
| Operating Temperature(in Centidegree) | -10~ 50 | ||||
| Storage Temperature(in Centidegree) | -20~ 60 | ||||
| Operating Humidity | 30~80%RH | ||||
| Storage Humidity | 10~60%RH | ||||
| Power Supply | DC 12V/2A Adaptor | ||||
