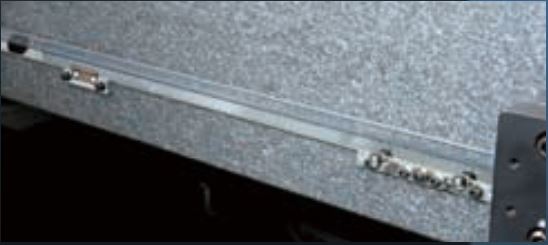

High speed and accuracy in measurement is ensured by a redesign of the machine body that has improved rigidity of the structure, and by a remodeled guide mechanism

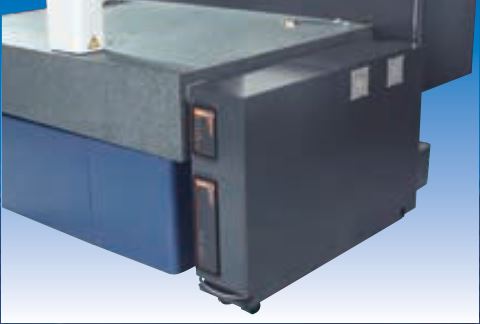

Uses a digital servo system that processes all control loops for position, speed, and current as digital signals.
The digital servo system offers the following benefits:
(1) Little drift or deterioration with time
(2) Wide dynamic range
(3) Easy implementation of various types of control algorithm
High-performance scanning measurement has been achieved through the improved structural rigidity and incorporation of a newly developed compensation technology
Maximum permissible scanning probing error: MPETHP = 1.3 μm (STRATO-Apex 574)
Maximum permissible scanning test time MPTtHP = 40 sec (STRATO-Apex 574)
(cf. Existing FALCIO Series: MPETHP = 2.2 μm)
MPTtHP = 110 sec.)
*Probe used: SP25M

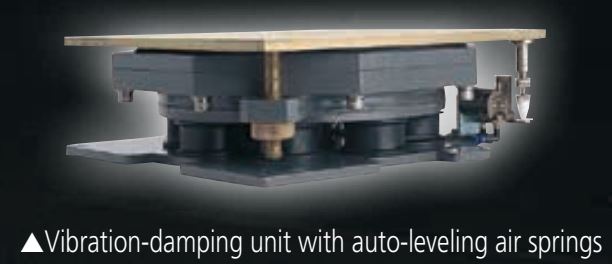

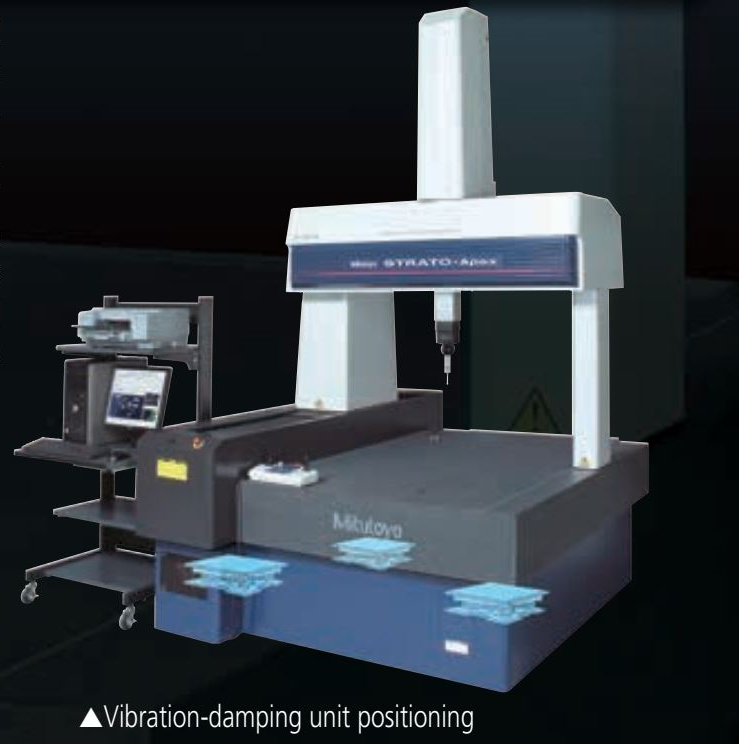

Vibration of the floor where the unit is installed shows up as measurement value variations. The STRATO-Apex Series comes equipped with a vibration- damping unit that uses auto-leveling air springs. The vibration-damping unit not only prevents floor vibrations from reaching the main unit, but also has a function that uses a sensor to detect load changes caused by movements of the individual axes and placement of a workpiece and quickly restores the main unit to horizontal orientation.

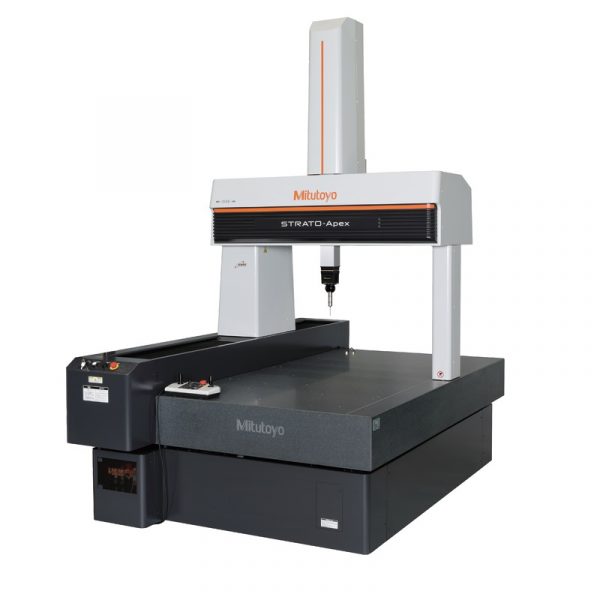

Model | STRATO-Apex 9106 |
Order No. | 355-512 |
Type | Moving Bridge Type High Accuracy |
X-axis | 35.4″ (900mm) |
Y-axis | 39.4″ (1000mm) |
Z-axis | 23.6″ (600mm) |
Resolution | 0.0000008″ (0.00002mm) |
Material | Granite |
Work Table Size | 41.81″ x 67.71″ (1062mm x 1720mm) |
Tapped Insert | M8x1.25mm |
Max. Workpiece Height | 30.31″ (770mm) |
Max. Workpiece Weight | 1763lbs (800kg) |
Mass (including stand and controller) | 5313lbs (2410kg) |
Machine Dimensions WxDxH | 65.35 x 85.03 x 111.41″ (1660 x 2160 x 1660mm) |
ISO | ISO-10360-2:2009 E0,MPE TP200: (1.5+2.5L/1000)μm** SP25: (0.9+2.5L/1000)μm** ISO-10360-2:2009 E150,MPE ISO-10360-2:2009 R0,MPL ISO-10360-4: 2000 ISO-10360-5: 2010 PFTU,MPE |

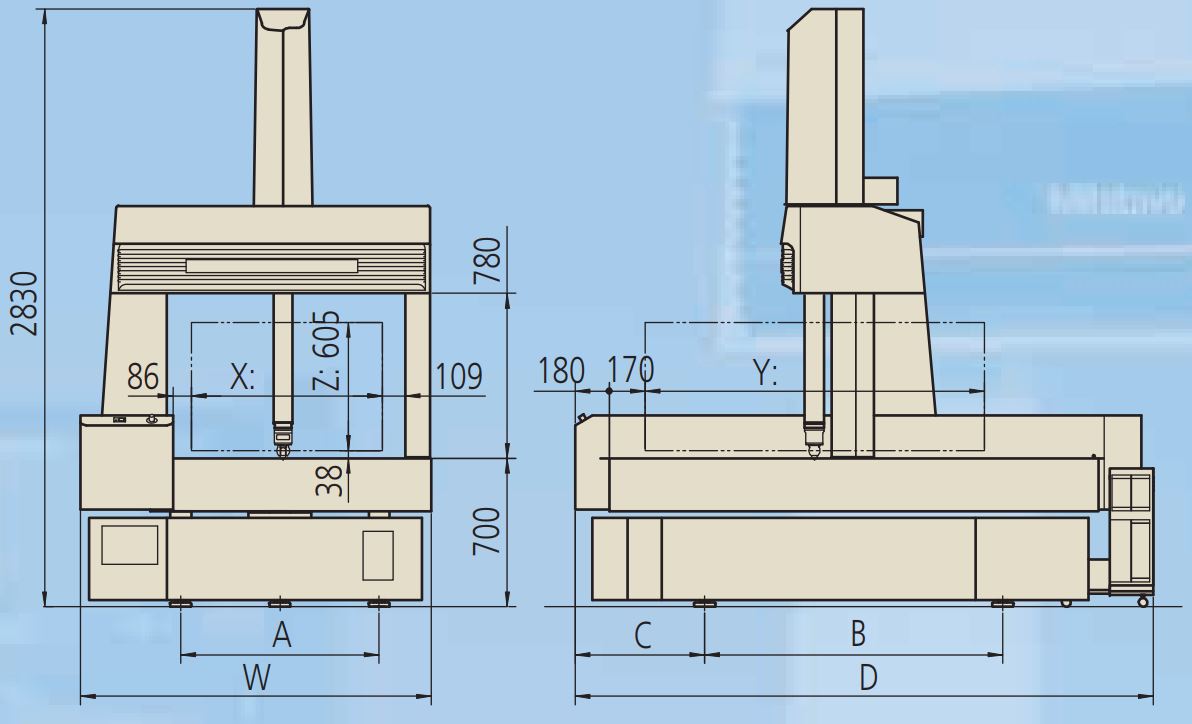

Item | STRATO-Apex 9106 |
A | 940 mm |
B | 1000 mm |
C | 540 mm |
D | 2160 mm |
W | 1660 mm |
