A jog shuttle covering a wide range of speed is a standard feature. The drive unit can be moved easily to the measurement position by using the jog shuttle.
The operation flow is significantly shortened by arranging the switches for stylus position change, measurement start/stop and return on the front of the drive unit. These operations are required for every single measurement cycle. This centralized panel can therefore reduce the workload of operators and improve measurement efficiency.
The newly designed stand allows operators to quickly and easily move the drive unit to and from the measurement height without having to push or pull. Moreover, this stand is equipped with a reference stop for quick repositioning to the measurement height, which ensures an easy and highly efficient measurement flow.
By enabling faster X-axis movement and enhancing the stylus up/down functions, the drive unit can return to the measurement start position after auto-displacement of the stylus. This is especially useful when high volume repetitive measurements are being executed by a part program.
The detector unit (Z1 axis) is equipped with a highly accurate arc scale. This scale directly tracks the arc trajectory of the stylus tip so that the most accurate compensation can be applied to the scale output, which leads to higher accuracy and resolution.

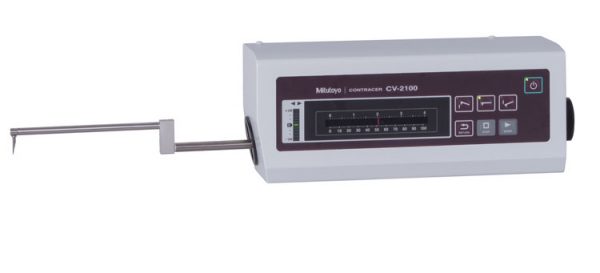

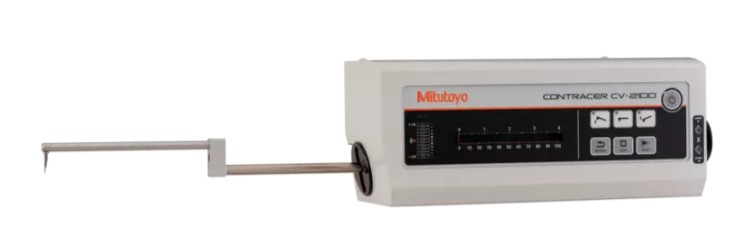

Model No. | CV-2100N4 |
X-axis measuring range | 0-4in 0-100mm |
Z1-axis measuring range | 0-2in 0-50mm |
Z2-axis vertical travel | – |
X-axis inclination angle | – |
Resolution | X-axis 3.93µin (0.1µm) |
Z1-axis 3.93µin (0.1µm) | |
Measurement direction | Push and pull |
Measuring force | (3gf)(30±10mN) |
Stylus traceable angle | Ascent 77°, Descent 87° |
(Standard accessory stylus) | (Depends on the surface condition) |

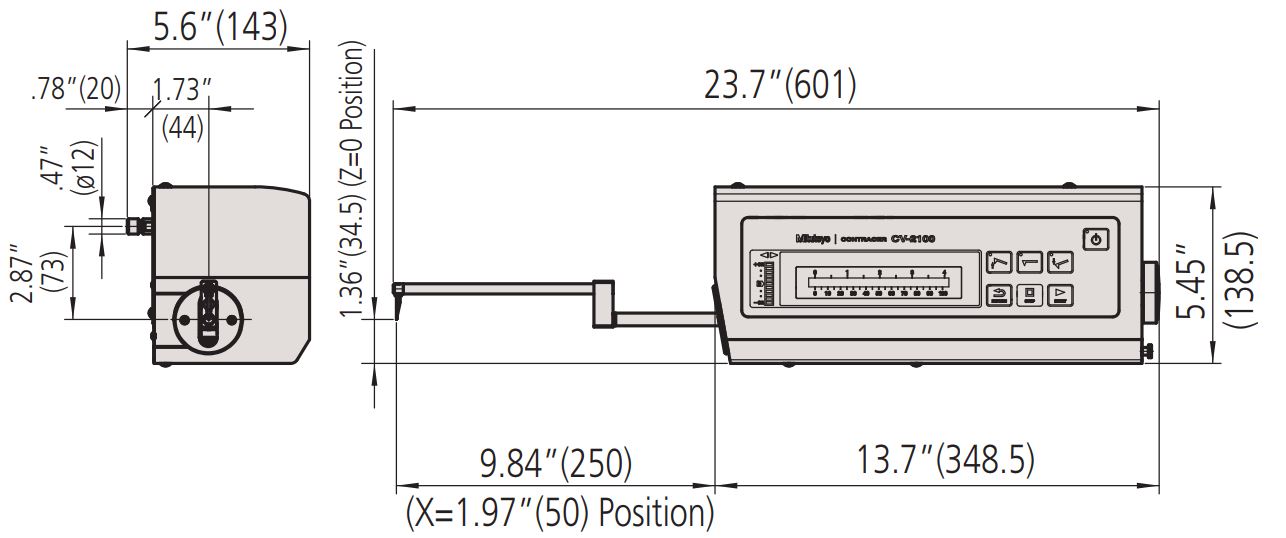

External (WxDxH) | 25.6x 5.63x 5.45in |
651x 143x 138.5mm | |
Mass | 12.78lbs 5.8kg |
