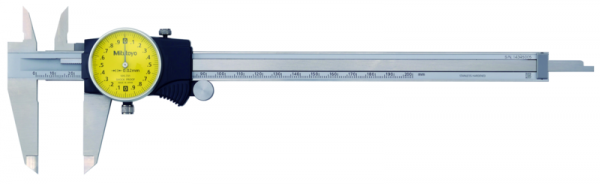

Dial Caliper
505-731
0-200mm

Contact
505-731
Mitutoyo
Contact

Available on backorder

Catalogue


a:
50 mm
L:
288 mm
b:
24.5 mm
c:
20 mm
d:
16 mm
Range:
0 – 200 mm
Accuracy:
±0,03 mm
Mass:
185 g
Graduation:
0,02 mm
2 mm/rev
Delivered:
In a box
Depth bar:
flat
Digital/Analog:
Analog
Inch-Metric:
Metric

This metric dial caliper allows you to take reliable measurements and offers you the following benefits:

  • Ultra-smooth sliding and high shock protection.
  • Easy to read dial with large character height.
