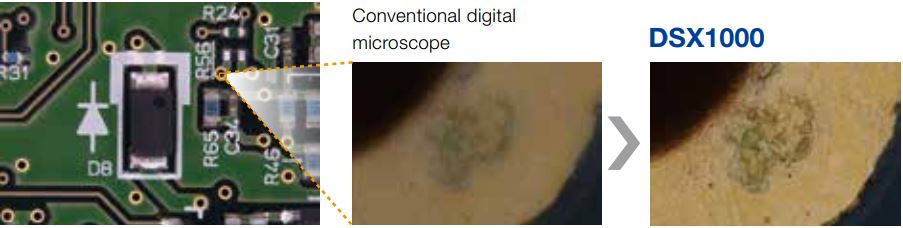

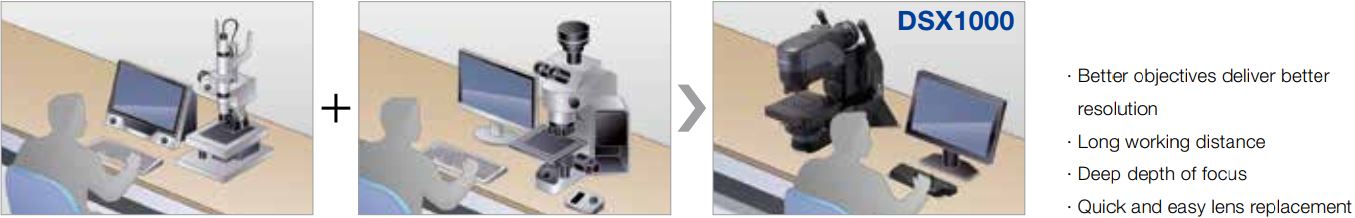

In the past, both high-magnification and low-magnification microscopes were needed to complete an inspection. Switching your samples between microscopes took time and required many setting adjustments.

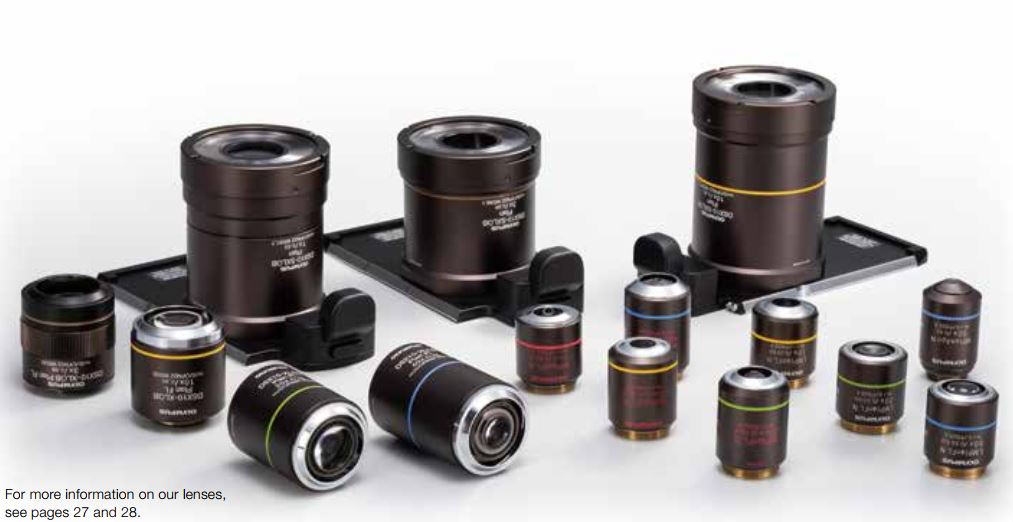

Our lineup of 17 objective lenses, including super long working distance and high numerical aperture options, provides the flexibility to obtain a wide range of images.

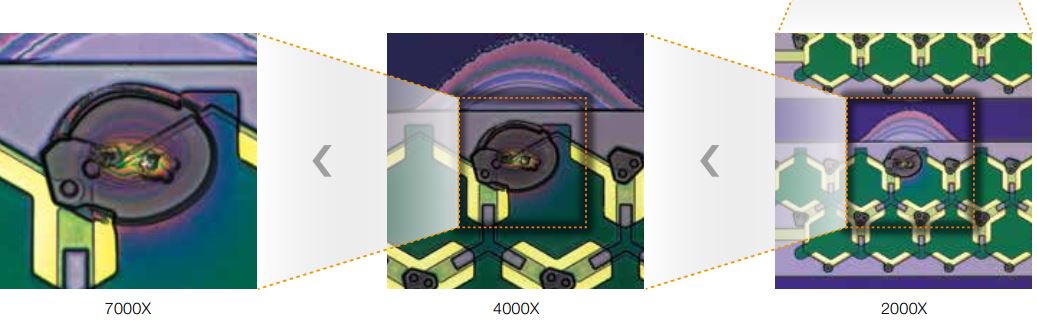

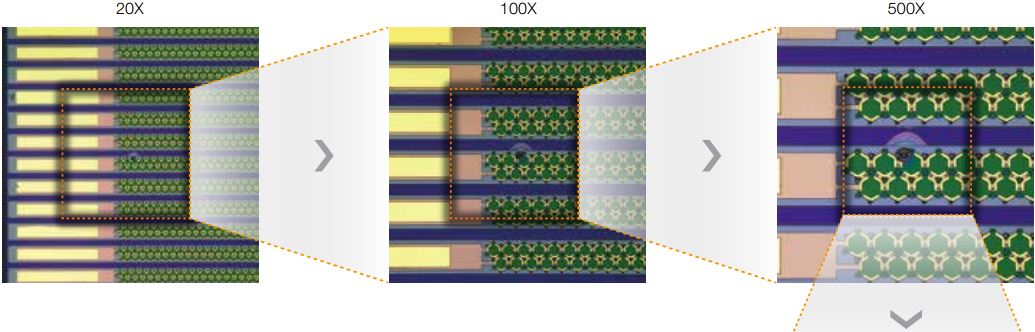

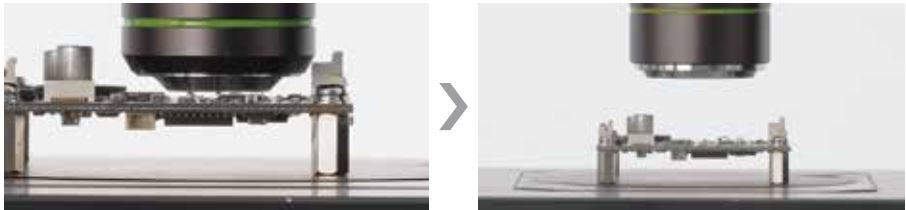

Seamlessly change magnification from high-level analysis to detailed observation by pushing a button.

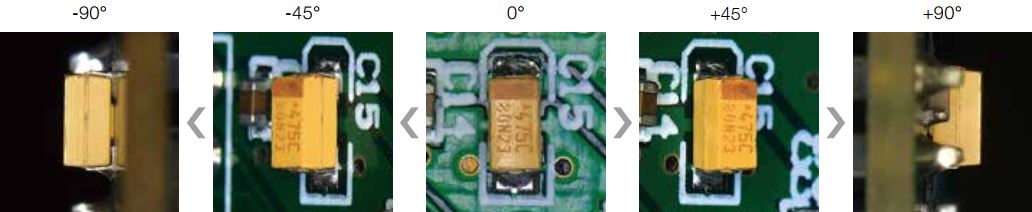

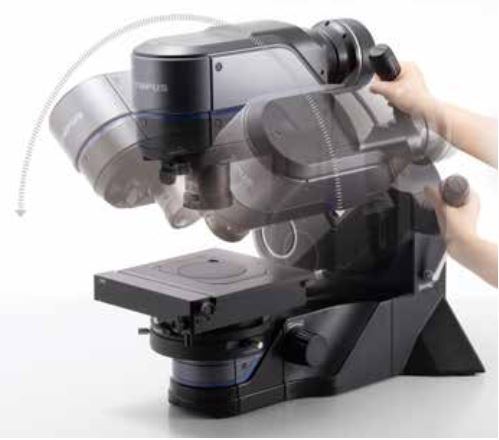

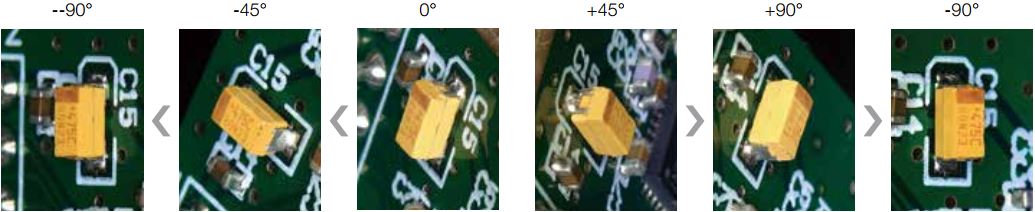

The eucentric optical design maintains a good visual field when tilted or when the stage is rotated, enabling you to observe your sample from many angles. This flexibility frees you from only having the option to observe your samples directly from above, helping you spot hard-to-see defects.

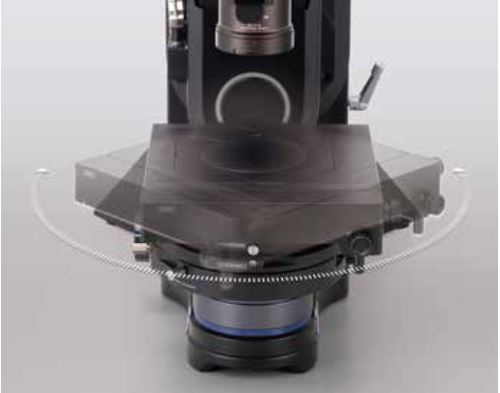

The stage rotates 90 degrees for even more flexibility in how you view your sample.
|
DSX10-SZH |
DSX10-UZH |
||
Optical System |
Optical system |
Telecentric optical system |
||
Zoom ratio |
10X (motorized) |
|||
Zoom magnification method |
Motorized |
|||
Calibration |
Automatic |
|||
Lens attachment |
Quick-switch, coded lens attachments automatically update |
|||
Maximum total magnification |
7000X |
|||
Working distance (W.D.) |
66.1 mm – 0.35 mm |
|||
Accuracy and repeatability (X-Y plane)*1 |
Accuracy of magnification: 3% |
|||
Repeatability (Z axis)*2 |
Repeatability (height): σ n – 1 ≤ 1 μm |
|||
Camera |
Image sensor |
1 / 1.2 inch, 2.35 million pixel color CMOS |
||
Cooling |
Peltier cooling |
|||
Frame rate |
60 fps (maximum) |
|||
Standard |
1200 × 1200 (1: 1) / 1600 × 1200 (4: 3) |
|||
3 CMOS mode |
Not available |
1200 × 1200 (1: 1) / 1600 × 1200 (4: 3) |
||
3 CMOS mode × pixel shift |
Not available |
3600 × 3600 (1: 1) / 4800 × 3600 (4: 3) |
||
Illumination |
Color light source |
LED |
||
Lifetime |
60,000 h (design value) |
|||
Observation |
BF (brightfield) |
Standard |
||
OBQ (oblique) |
Standard |
|||
DF (darkfield) |
Standard |
|||
MIX (brightfield+darkfield) |
Standard |
|||
PO (polarization) |
Standard |
|||
DIC (differential interference) |
Not available |
Standard |
||
Contrast up |
Standard |
|||
Depth of focus up function |
Not available |
Standard |
||
Transmitted lighting |
Standard*3 |
|||
Focus |
Focusing |
Motorized |
||
Stroke |
101 mm (motorized) |
*1 Calibration by Olympus or dealer service technician necessary. To guarantee the accuracy of XY, calibration with DSX CALS-HR (calibration sample) is required.To issue certificates, calibration work must be undertaken by an Olympus’ calibration service technician.
*2 When using a 20X or higher objective.
*3 The optional DSX10-ILT is required.
Objective |
DSX10-SXLOB |
DSX10-XLOB |
UIS2 |
|
Objective lens |
Maximum sample height |
50 mm |
115 mm |
145 mm |
Maximum sample height |
50 mm |
|||
Parfocal distance |
140 mm |
75 mm |
45 mm |
|
Lens attachment |
Integrated with lens |
Available |
||
Total magnification |
20X – 1400X |
42X – 5600X |
23X*4 – 7000X |
|
Actual F.O.V. (μm) |
19,200 µm – 270 µm |
9,100 µm – 70 µm |
17,100 µm – 50 µm |
|
Adaptor |
Diffusion adaptor (optional) |
Available |
Not Available |
|
Eliminate reflection adaptor (optional) |
Available |
Not Available |
||
Lens attachment |
Number of objectives that can be attached |
Up to 1 piece |
Up to 2 pieces |
|
Objective lens case |
Three lens attachments can be stored |
*4 Total (maximum) magnification when using MPLFLN1.25X
Stage |
DSX10-RMTS |
DSX10-MTS |
U-SIC4R2 |
XY stage: motorized / manual |
Motorized (with rotation function) |
Motorized |
Manual |
XY stroke |
Stroke priority mode: 100 mm × 100 mm |
100 mm × 100 mm |
100 mm × 105 mm |
Rotation angle |
Stroke priority mode : ±20° |
Not available |
|
Display rotation angle |
GUI |
Not available |
|
Load-resistance |
5 kg (11 lb) |
1 kg (2.2 lb) |
Frame |
DSX-UF |
DSX-TF |
Z-axis stroke |
50 mm (manual) |
|
Tilt observation |
Not available |
±90° |
Tilt angle display |
Not available |
GUI |
Tilt angle method |
Not available |
Manual, fix / release handle |
