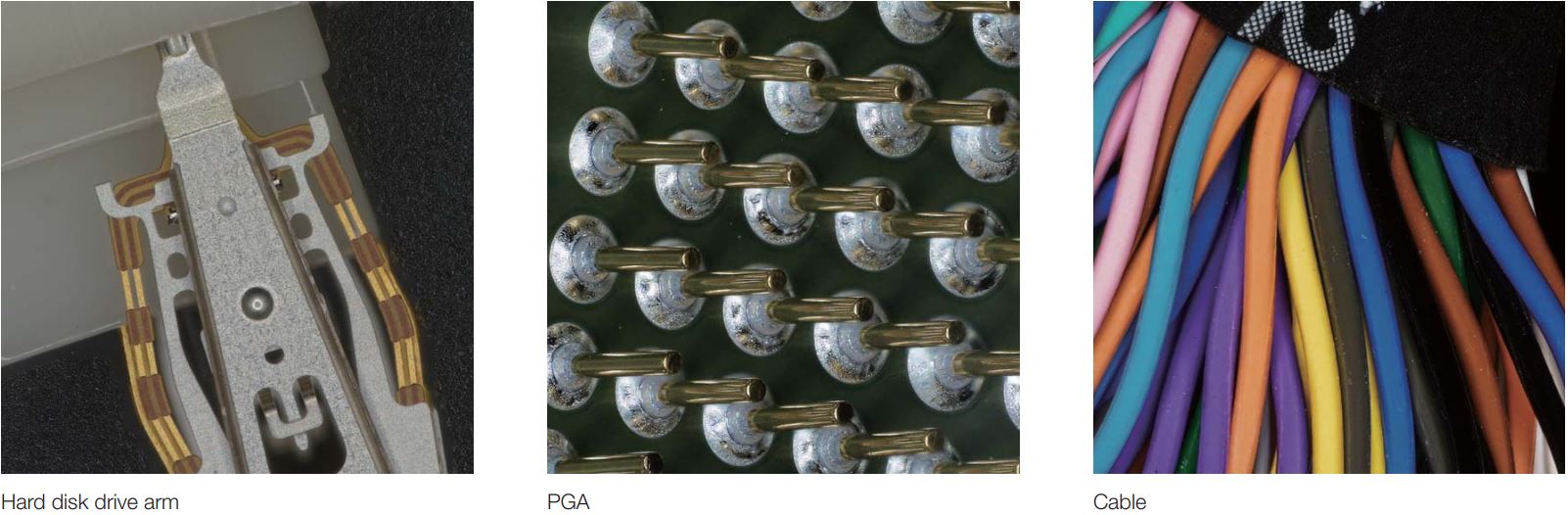

Made possible by the unique combination of optics and today’s newest digital imaging technology the DSX110 digital microscope is the culmination of a long history of superior engineering, design, and manufacturing. The microscope minimizes glare, delivers accurate color reproduction, and eliminates flare and distortion. Every sample is reproduced with such accuracy that it’s simply stunning, and stunningly simple. Take a closer look at the DSX110, and see what other digital microscopes cannot.
Change the magnification to fi t individual needs — the DSX110 provides an optical zoom up to 16X and a digital zoom up to 30X. The DSX110 also offers a wide magnification range, with a 16X
wide zoom range, and a total magnification of 7X to 1071X (with dedicated 10X lens).

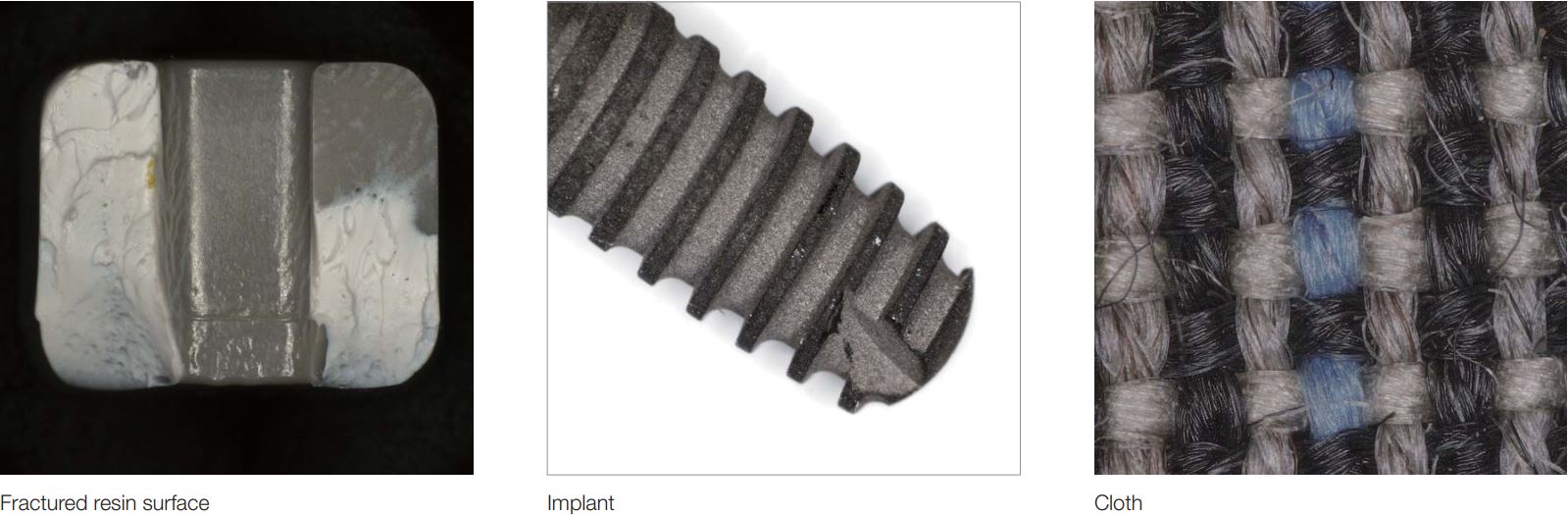

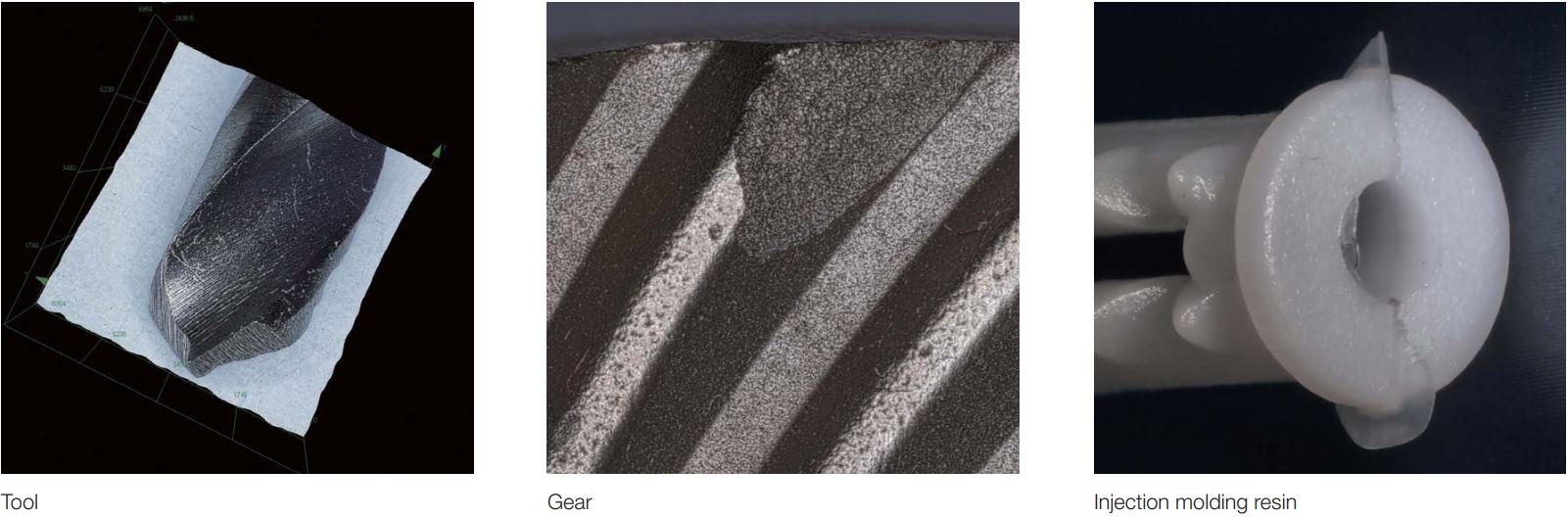

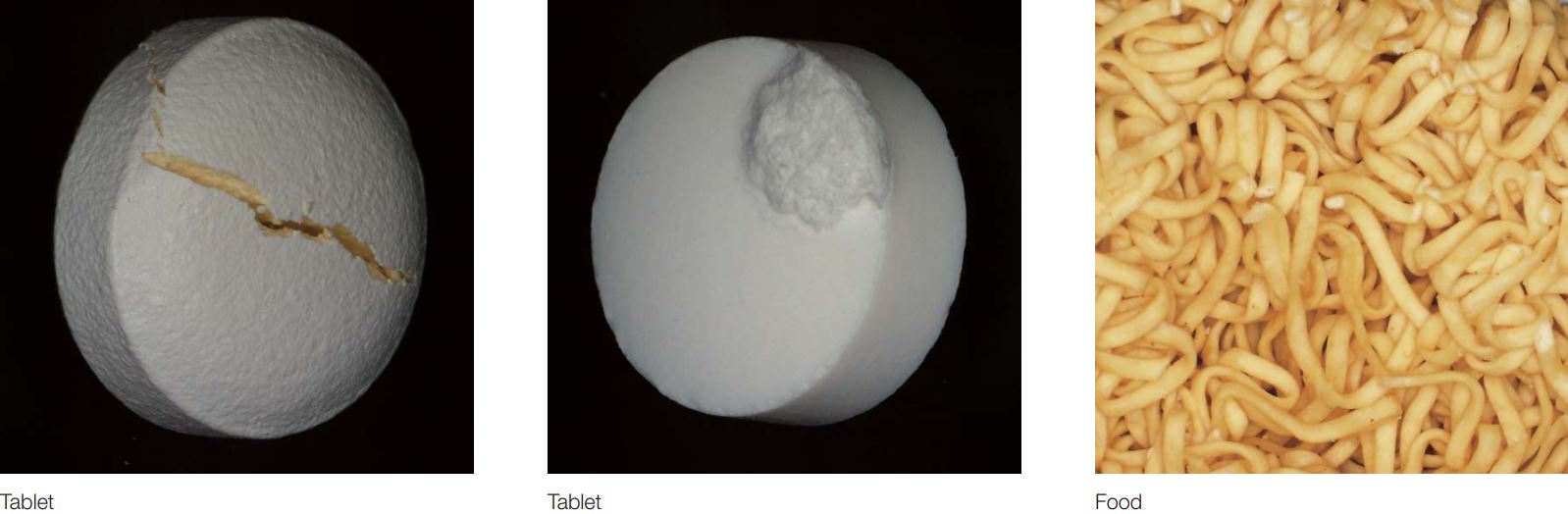

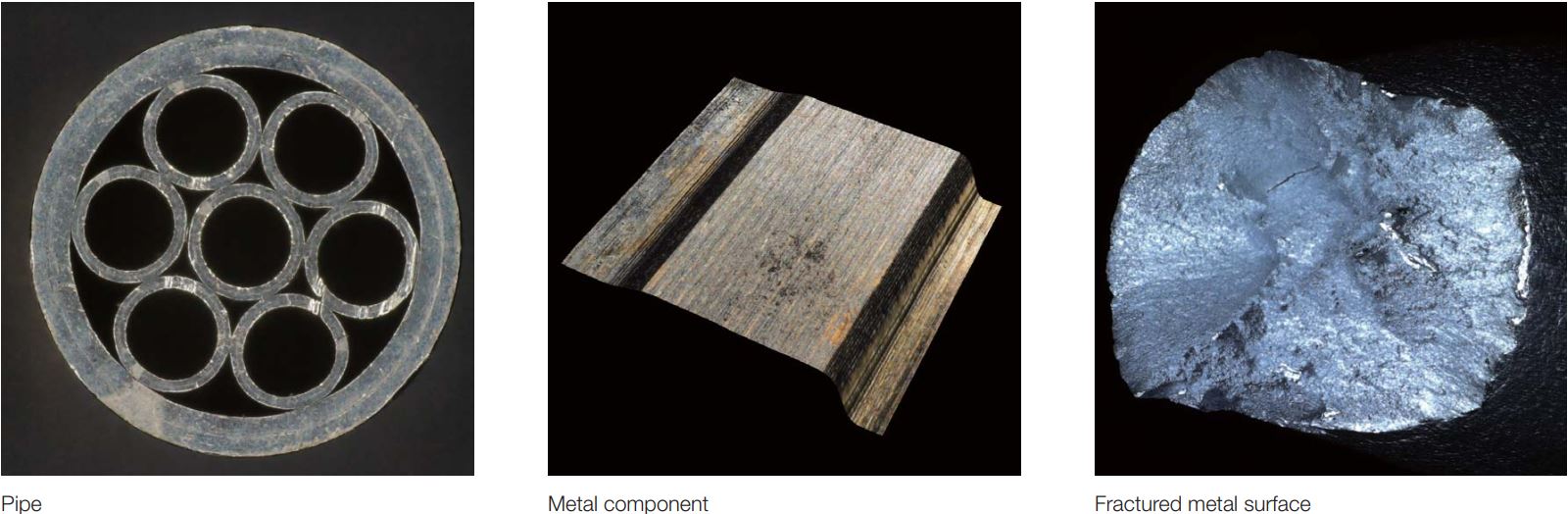

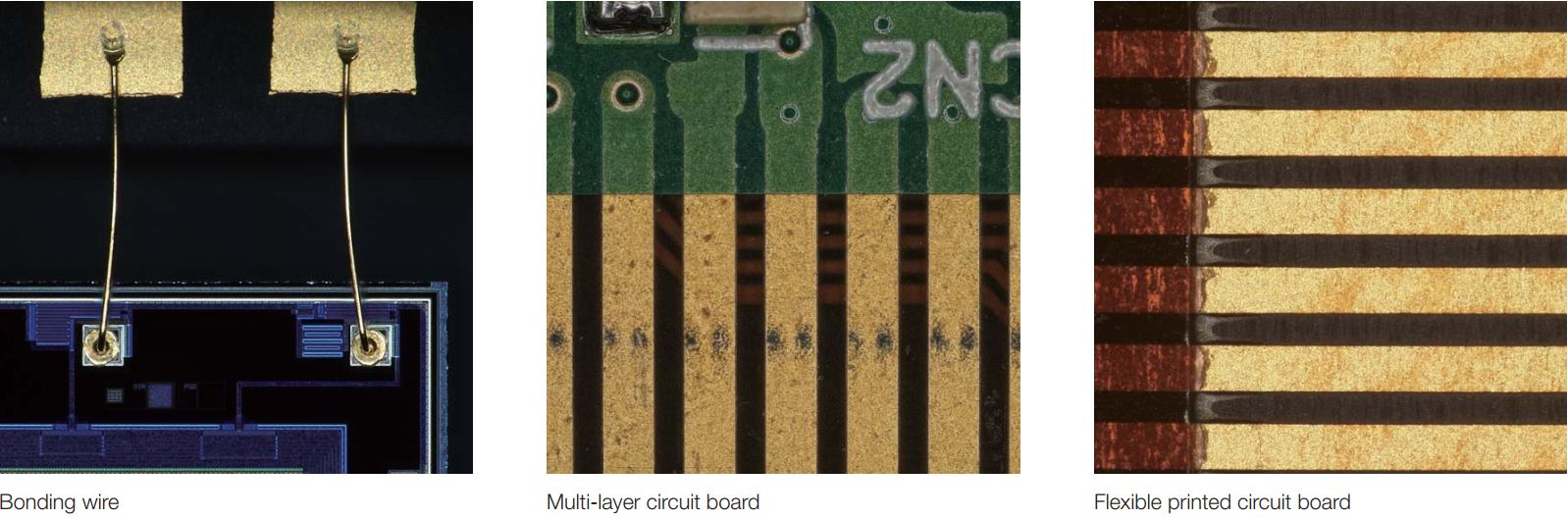

Zoom in on the sample

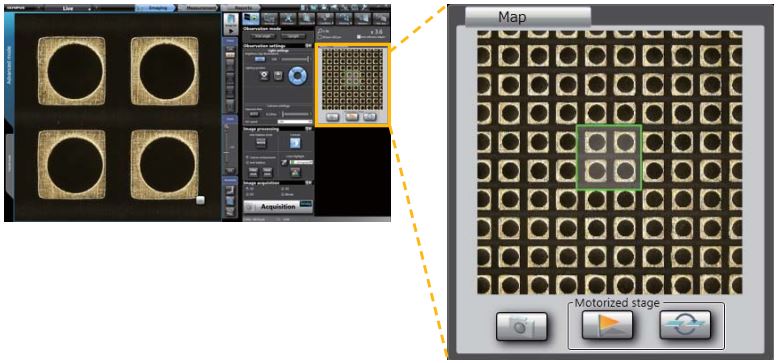

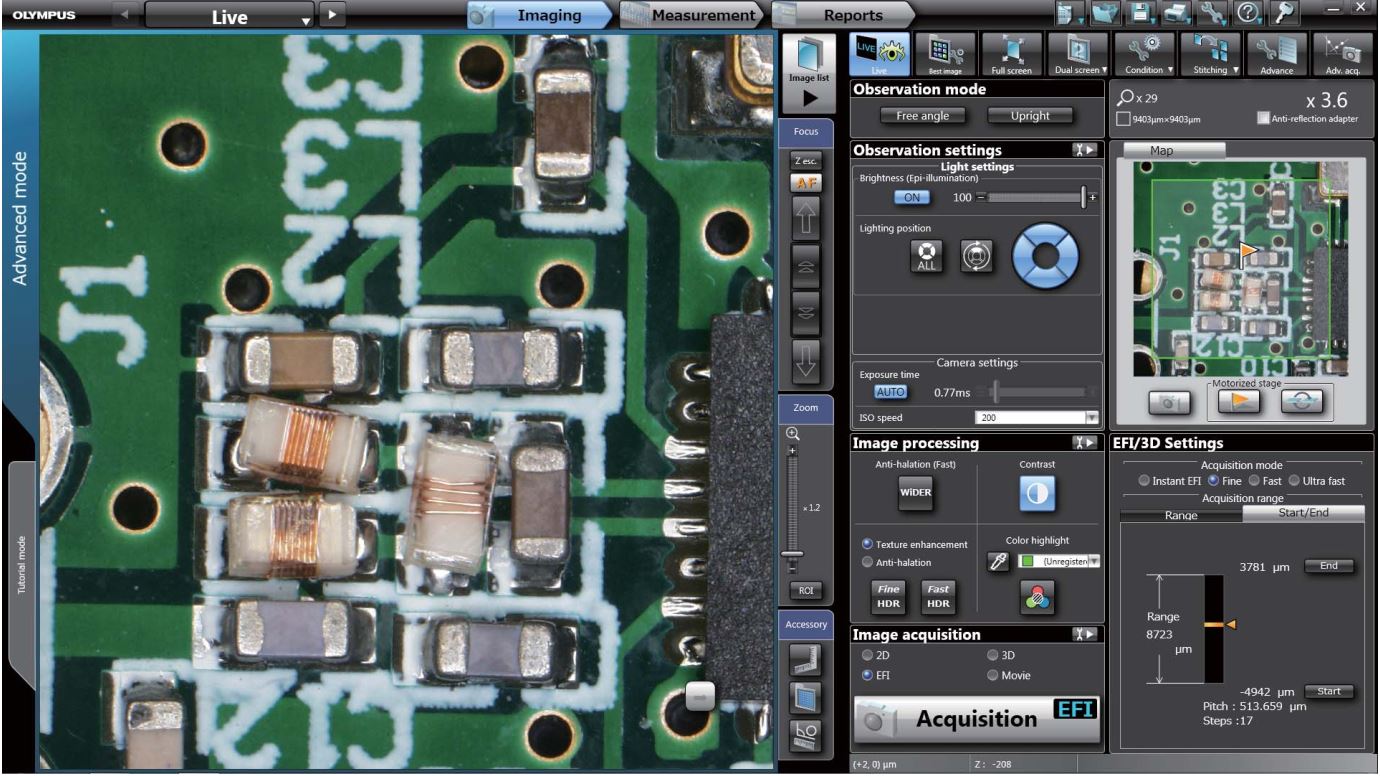

As zoom magnification is adjusted to a higher level, the area that can be seen at one time is reduced — Macro map automatically records a full field of view image in a separate macro window. On this full field image, specific location on the sample is noted and updated as the sample is moved. If using the panorama function, it will also be displayed in a macro window to provide the same convenience on an even larger area.

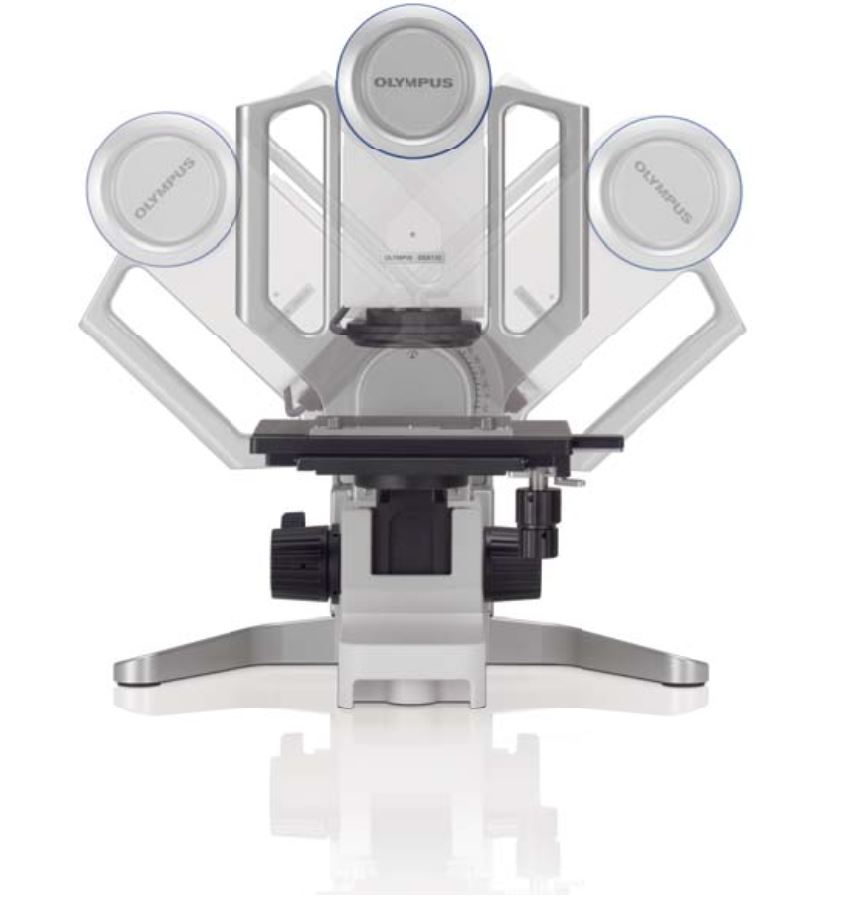

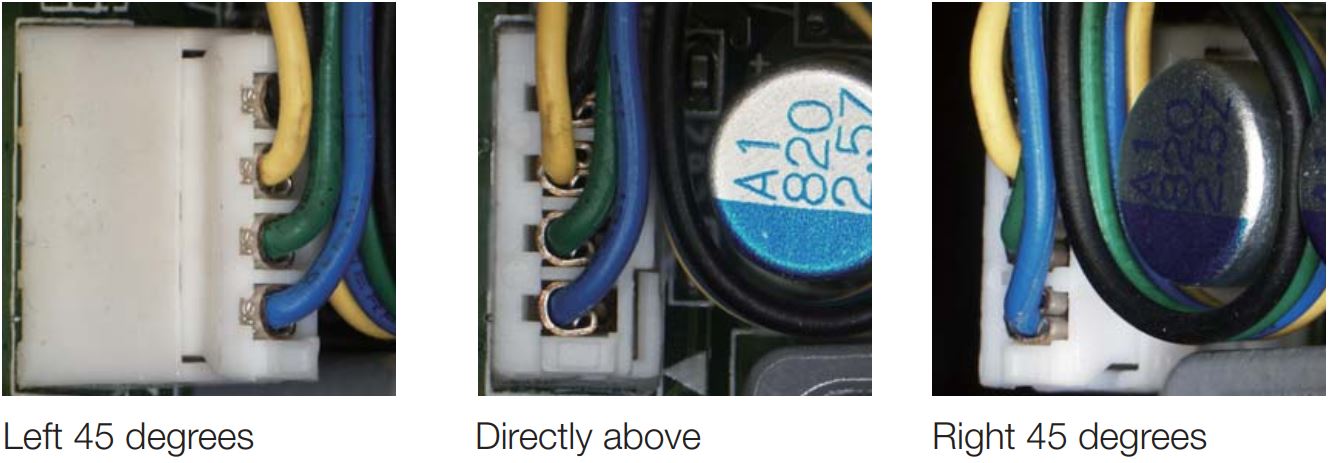

With conventional microscopes such as metallurgical microscopes, the sample needs to be moved in order to observe it from an angle, and the microscope often needs to be refocused. With the free-angle function of DSX110, merely tilt the zoom head to change the viewing angle without touching the sample. A sturdy frame with a low center of gravity provides extra stability when tilting the head.
|

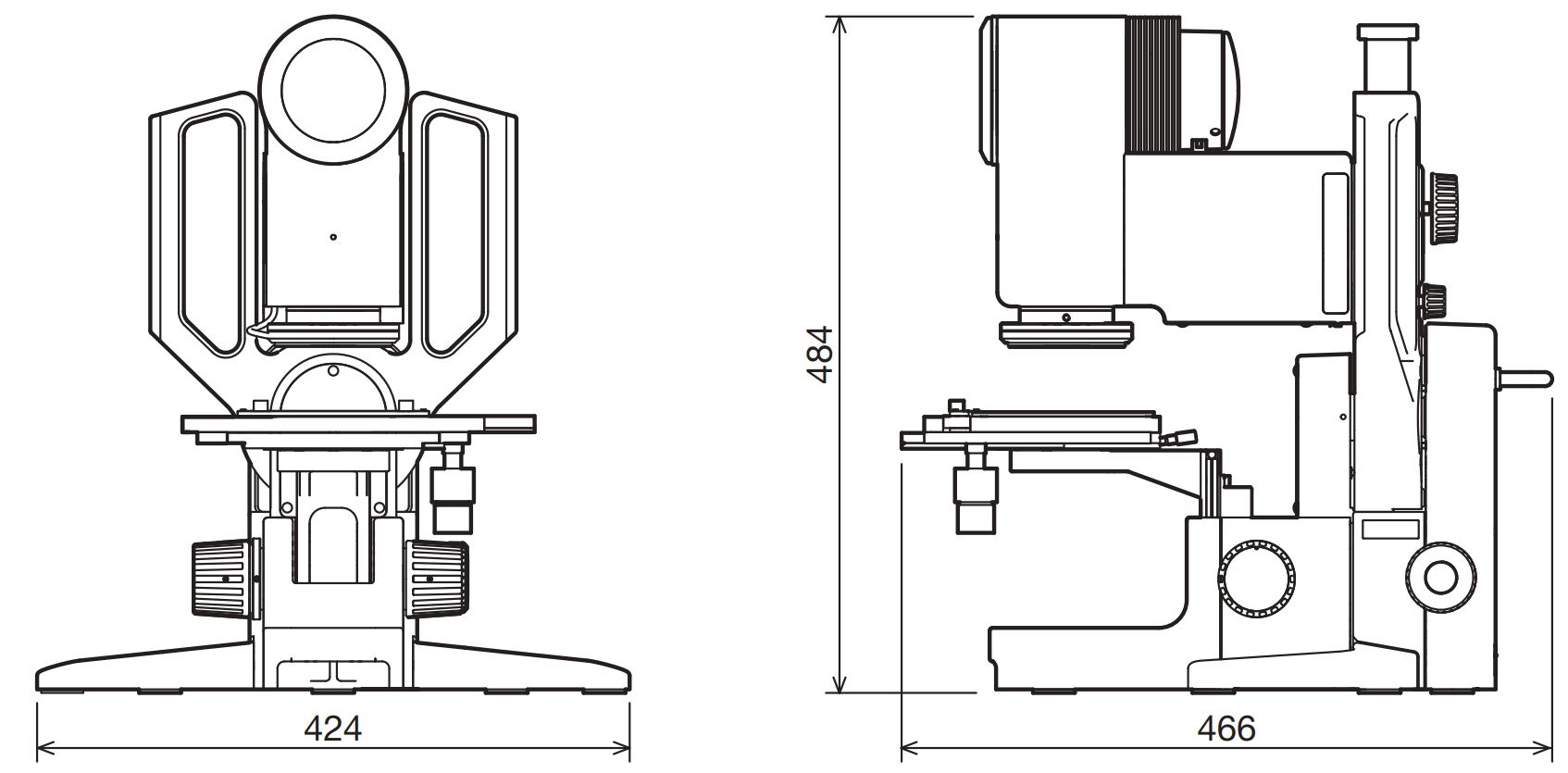

Main frame |
Zoom ratio |
Optical zoom |
DSXPLFL3.6X/1X: 1X to 16X (max) |
|
XLMPLFLN10XDSX (with DSX-LEDAD10X): |
|||
|
Digital zoom |
17X to 30X |
||
|
Mountable objective lens |
DSX dedicated objective lens |
DSXPLFL1X, DSXPLFL3.6X, XLMPLFLN10XDSX+DSX-LEDAD10X |
|
|
Illumination (Objective lens) |

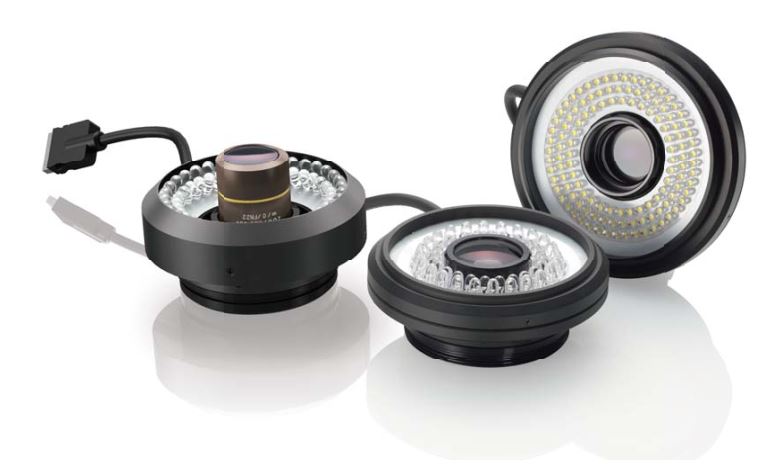

LED ring light illumination |
||
|
Camera |
Image sensor |
1/1.8 inch, 2.01 megapixels, color CCD |
|
|
Total pixels : 1688 (H) x 1248 (V) |
|||
|
Available pixels : 1628 (H) x 1236 (V) |
|||
|
Effective pixels : 1600 (H) x 1200 (V) |
|||
|
Cooling method |
Peltier cooling |
||
|
Scan mode |
Progressive scan |
||
|
Frame rate |
15 fps/27 fps with binning mode |
||
|
Image size |
Normal : 1194 x 1194 (1:1)/1592 x 1194 (4:3) |
||
|
Fine : 1194 x 1194 (1:1)/1592 x 1194 (4:3) |
|||
|
Super fine : 3594 x 3594 (1:1)/4792 x 3594 (4:3) |
|||
|
Sensitivity |
ISO 100/200/400/800/1600 equivalent |
||
|
Fine focusing (Motorized) |
Stroke |
34 mm |
|
|
Resolution |
0.4 μm |
||
|
Frame |
Coarse focusing (Manual) |
Stroke |
50 mm |
|
Maximum sample height |
Standard |
80 mm*1 |
|
|
To ensure U-centric operation in tilted operation |
50 mm*2 |
||
|
Tilt mechanism |
Type |
Manual, lock/release handle |
|
|
Tilt angle |
Left/Right 45° |
||
|
Stage |
DSX-UFSSU (Motorized)*3 |
Stroke |
100 x 100 mm |
|
Load capacity |
1 kg |
||
|
U-SIC4R2 (Manual) |
Stroke |
100 x 105 mm |
|
|
Load capacity |
1 kg |
||
|
LCD monitor |
Size |
23” with touch panel and Full HD color LCD monitor |
|
|
Resolution |
1920 (H) x 1080 (V) |
||
|
Weight |
(Main frame, Manual stage, LCD monitor, Control box, Controller) |
Approx. 36.5 kg |
|
|
Input rating |
100-120 V/220-240 V, 300 V A, 50/60 Hz |
||
*1 50 mm in case of the combination with DSX-UFSSU (not included BH2-WHR43/wafer holder plate)
*2 20 mm in case of the combination with DSX-UFSSU (not included BH2-WHR43/wafer holder plate)
*3 DSX-WZ-STAD is required to install

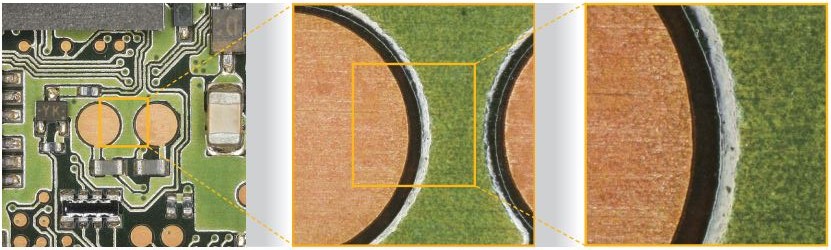

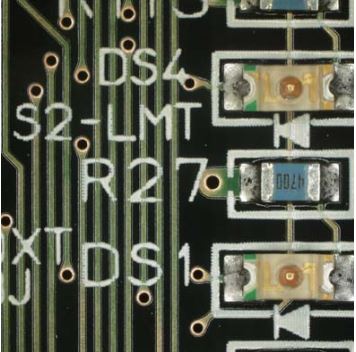

Mounted substrate

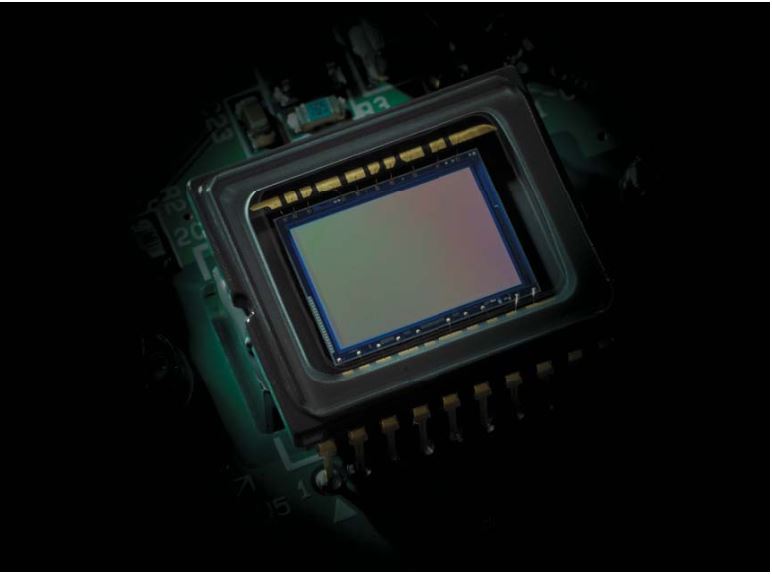

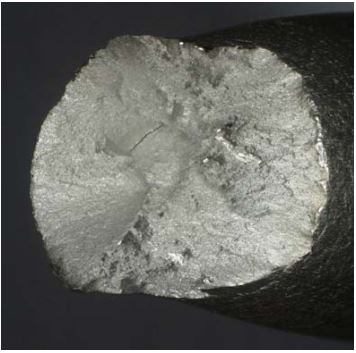

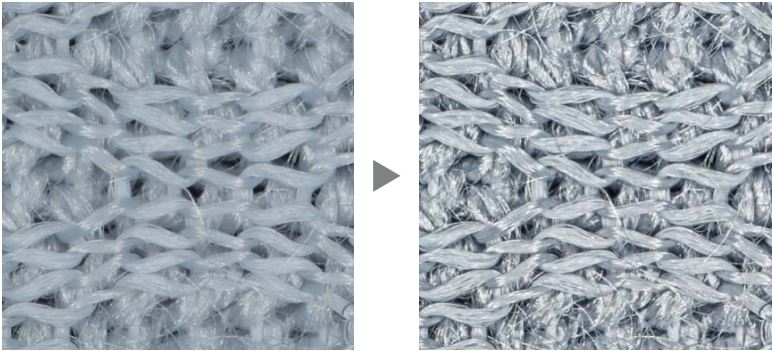

High-performance CCD
