Efficient Observation

More to See. Easier to Use.

Made possible by the unique combination of Olympus optics and today’s newest digital imaging technology, the DSX510 digital microscope is the culmination of a long history of superior engineering, design, and manufacturing. The microscope minimizes glare, delivers accurate color reproduction, and eliminates flare and distortion. Every sample is reproduced with such accuracy that it’s simply stunning, and stunningly simple. Take a closer look at the DSX510, and see what other digital microscopes cannot.

High NA — Low-Aberration Field Lenses

With lenses that have higher NA and lower aberration than current digital microscopes, plus improved evenness of light intensity, the DSX510 series of digital microscopes offer high resolution equal to the very best light microscopes. DSX510 lenses deliver the longest working distance in the class, and enables observance of highly uneven samples as well.

LED Illumination: Picture-Perfect Inspection, Reduced Energy

With the advanced LED illumination of DSX510, color does not change with the LED’s intensity, minimizing the need for white balancing, which is required with conventional light sources. This not only ensures accurate observation, but also helps reduce operating costs. Long LED working life makes the instruments virtually maintenance-free.

High-Resolution 18MP Images Reproduced with High-Performance CCD*

Olympus’s high-performance CCD is the engine that shows exactly what our high-quality optics reveal. Our image shift function ensures high fi delity with fi ne detail processing, so clarity extends from corner to corner. Features include a Full HD camera and HDR digital processing.















A Variety of Observation Methods, Freely Usable

Quickly and Easily Acquire the Images Required for Observation

Ideal for any industrial microscopic observation method, the DSX510 offers a variety of observation modes that deliver the highresolution images users expect from high-end optics.

Choose the Observation Method with One Easy Click

With virtually every industrial observation method just a clickaway, the DSX510 makes it easy to choose the right one for thetask at hand. No complicated adjustments needed — simply choose between modes (brightfield, darkfield, MIX [BF + DF], Differential Interference Contrast, polarized light) and start creating high-end images that meet precise demands.

Advanced Image Processing

HDR: High-Definition Visuals Beyond the Human Eye

Sample appearance can vary depending on quality of material, surface conditions, or illumination methods. One of a variety of observation methods made possible by the advanced digital technology of DSX510, the HDR (High Dynamic Range) function, combines several images taken at different exposures to accurately correct brightness differences on the sample surface, delivering a more consistently accurate sample rendition. HDR provides high-fidelity images that show not only textures but also flaws and defects that were previously undetectable. Glare can also be reduced for more comfortable observation.

WiDER: Easy Inspection of Samples with High Reflectance Difference

If a non-reflective image area cannot be seen, merely increasing illumination power is often not enough, as glare can occur. The DSX510 eliminates this issue with WiDER, a proprietary image processing system that takes care of high-contrast problems with one click. No blackouts. No glare.

Color Enhancement: See Only What’s Required

The color enhancement feature of DSX510 allows color to be placed where it is needed while leaving the rest of the image in black-and-white, making it much easier to locate defects. Ideal for focusing on one particular defect.

Inspection is easier when you can highlight possible defects or contamination for inspection

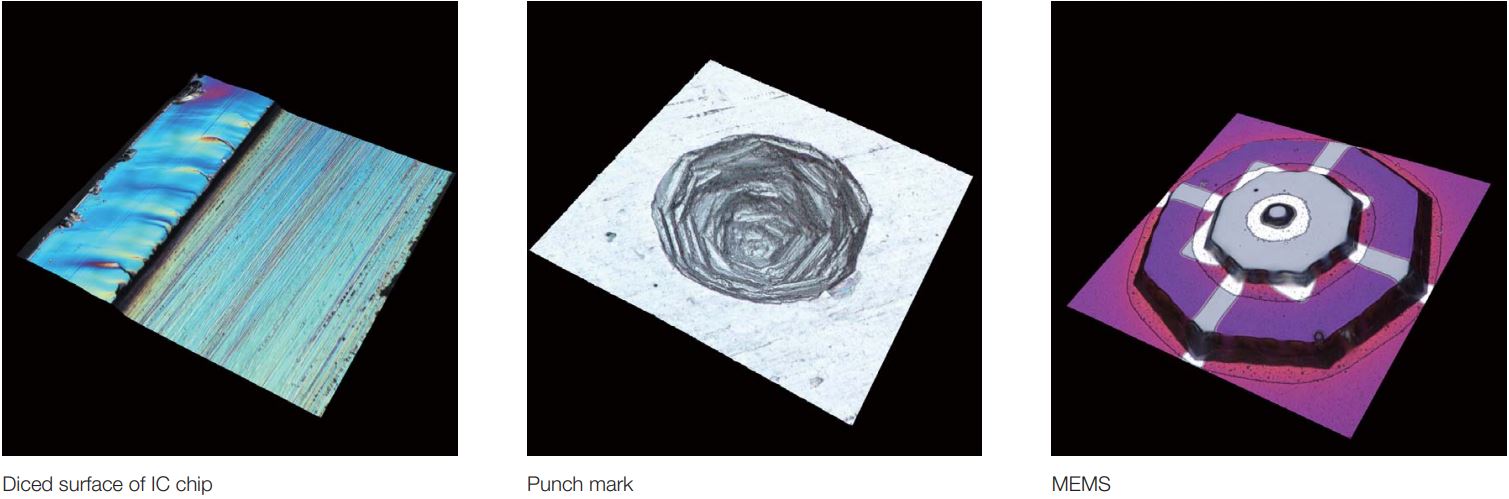

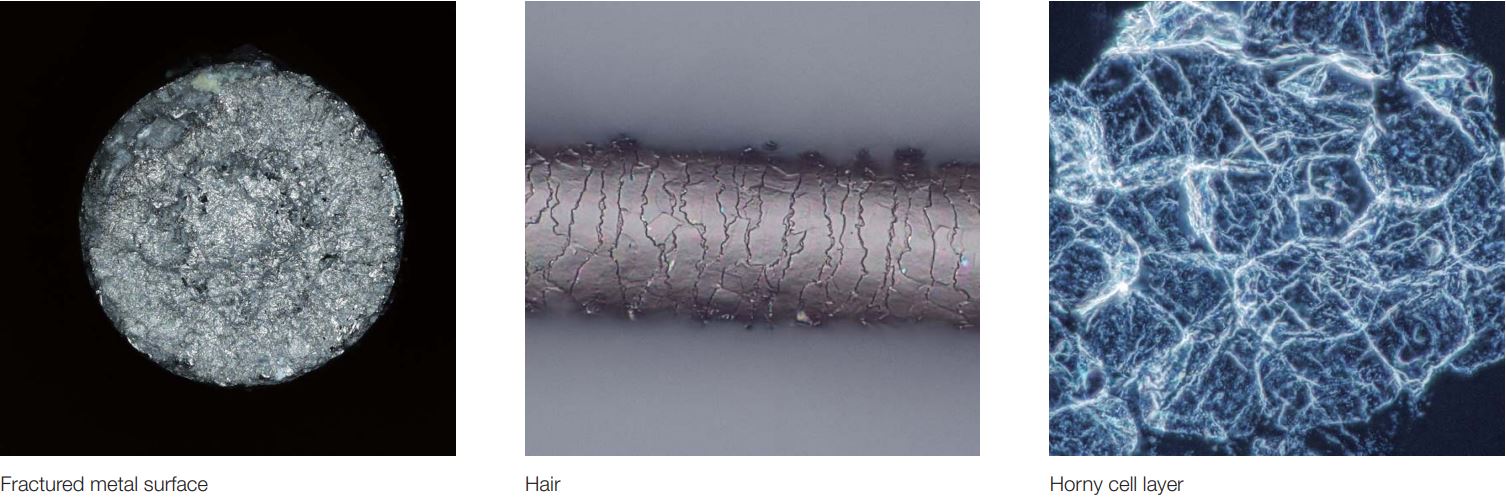

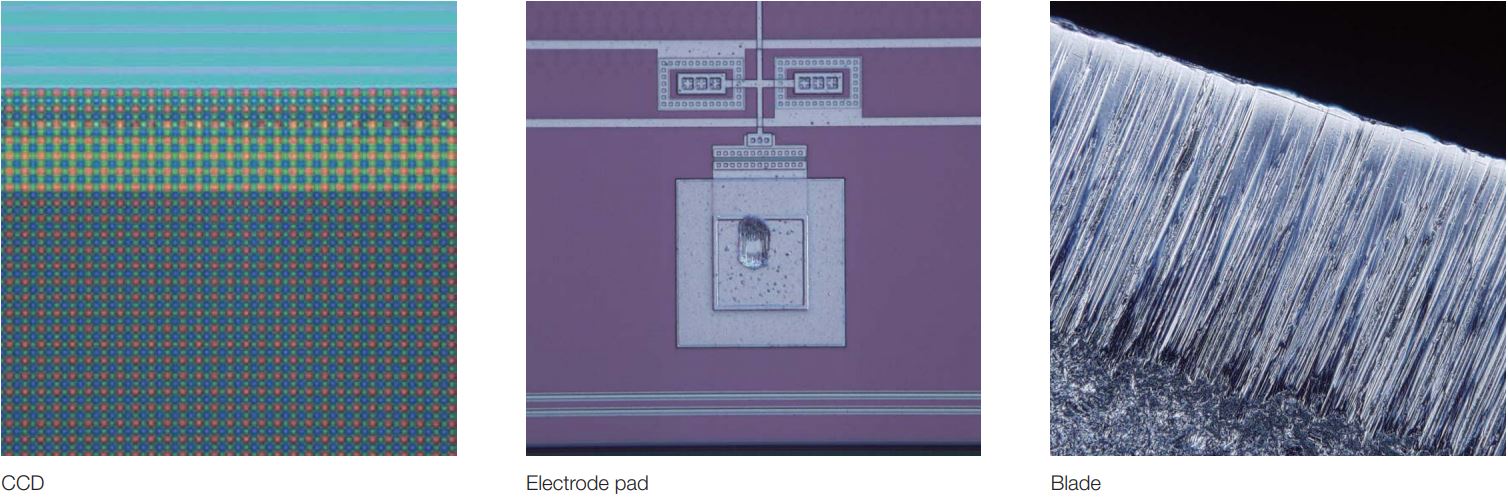

Applications

Specifications

Main frame

Zoom ratio

13.5X optical zoom (0.26X to 3.5X), 30X with digital zoom

Number of attaching objective lenses

up to 2 pieces

DSX dedicated objective lens

XLMPLFLN10X, XLMPLFLN40X

Mountable objective lens

UIS2 objective lens

MPLFLN1.25X, MPLFLN2.5X, MPLFLN5XBDP, MPLFLN10XBDP,

MPLFLN20XBDP, MPLFLN50XBDP, LMPLFLN10XBD,

LMPLFLN20X, LMPLFLN50X, MPLAPON50X

Accuracy and repeatability (X-Y plane)

Accuracy of magnification

±3%*2

Repeatability of magnification

3σn-1= ±2%

Repeatability (Z axis)

Repeatability of height

σn-1≤1μm*3

Illumination

Embedded standard

Bright field: LED, Dark field: LED

Optional illumination

High intensity LED*1 / Transmitted LED

Camera

Image sensor

1/1.8 inch, 2.01 megapixels, color CCD (total pixels: 2.10 megapixels)

Total pixels : 1688 (H) x 1248 (V)

Available pixels : 1628 (H) x 1236 (V)

Effective pixels : 1600 (H) x 1200 (V)

Cooling method

Peltier cooling

Scan mode

Progressive scan

Frame rate

15 fps/27 fps with binning mode

Image size

Normal : 1194 x 1194 (1:1)/1592 x 1194 (4:3)

Fine : 1194 x 1194 (1:1)/1592 x 1194 (4:3)

Super fine : 3594 x 3594 (1:1)/4792 x 3594 (4:3)

Sensitivity

ISO 100/200/400/800/1600 equivalent

Focusing unit

Stroke

95 mm

Resolution

0.01 μm

Maximum sample height

DSX dedicated objective lens

65 mm

UIS2 objective lens

95 mm

Stage

Motorized stage

Model

DSX-UFSSU

Stroke

100 x 100 mm

Load capacity

3 kg

Manual stage

Model

DSX-SFR

Stroke

100 x 100 mm

Load capacity

1 kg

LCD monitor

Size

23” with touch panel and Full HD color LCD monitor

Resolution

1920 (H) x 1080 (V)

Weight

(Main frame, Motorized stage, LCD monitor, Control box, Controller)

Approx. 38.6 kg

Input rating

100-120 V/220-240 V, 300 V A, 50/60 Hz

*1 Cannot be used with the embedded standard LED.

*2 Calibration by Olympus or dealer specialists necessary.

*3 Only if x20 or x50 objective use
