Available on backorder

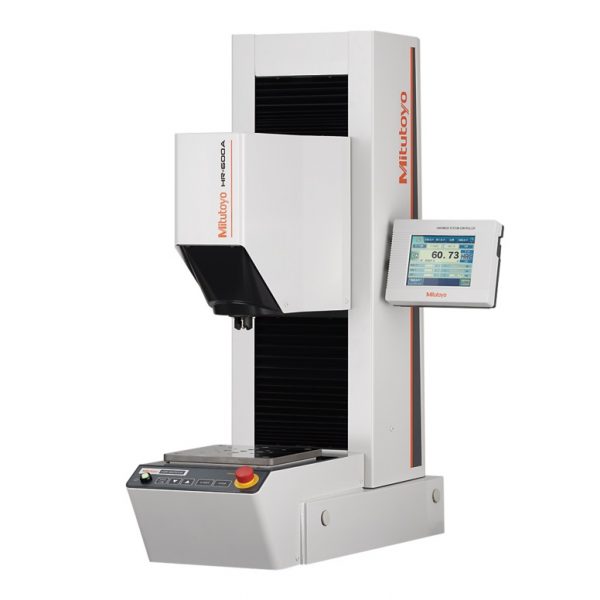

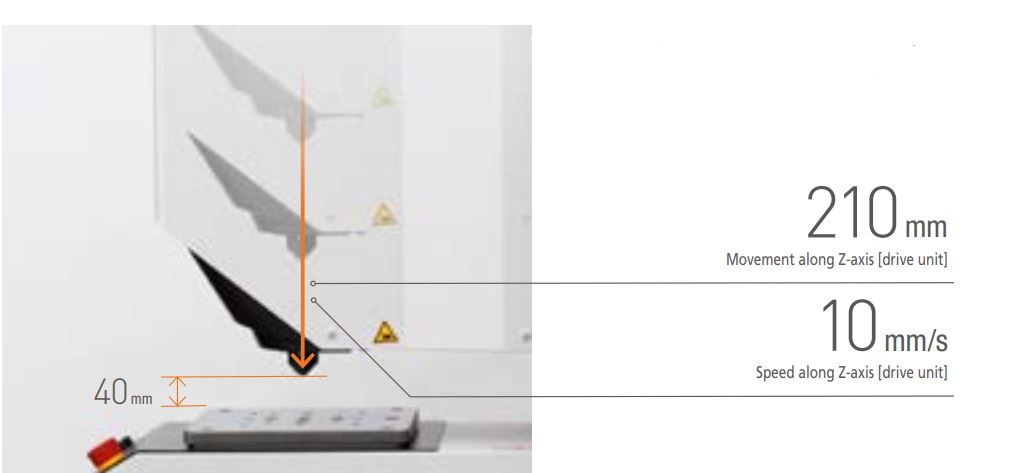

First Mitutoyo hardness testers with moving heads

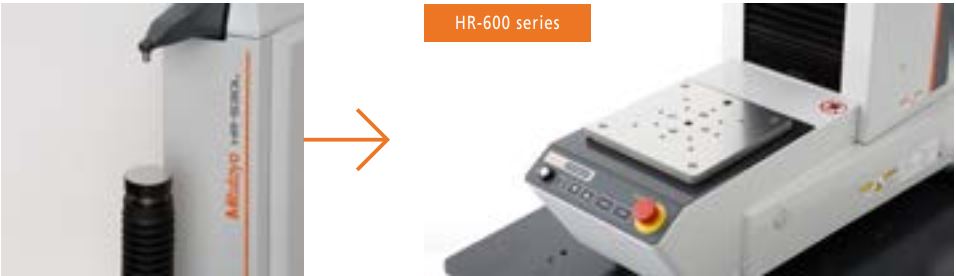

Larger tables expand the range of measurements
| Order No. | 810-520-11 | 810-520-13 | 810-521-11 | 810-521-13 | 810-522-11 | 810-522-13 | |
| Model | HR-620A | ||||||
| Unit (display unit) | metric | inch/mm | metric | inch/mm | metric | inch/mm | |
| Indenter type*1 | Diamond 1/16″ Steel ball |
Diamond 1/16″ Tungsten carbide ball |
ー | ー | |||
| Hardness testing methods |
Rockwell | JIS B 7726, ISO 6508-2, ASTM E18*2 | |||||
| Brinell*3 | JIS B 7724, ISO 6506-2, ASTM E10 | ||||||
| Plastic | ISO 2039-1 | ||||||
| JIS K 7202-2, ISO 2039-2, ASTM D785 | |||||||
| Indentation Brinell hardness | VDI / VDE 2616 | ||||||
| Indentation Vickers hardness | VDI / VDE 2616 | ||||||
| Initial test force N (kgf) |
Rockwell | 29.42 (3) 98.07 (10) | |||||
| Plastic | 9.807 (1) | ||||||
| 98.07 (10) | |||||||
| Indentation Brinell hardness | 98.07 (10) 490.3 (50) | ||||||
| Indentation Vickers hardness | 9.807 (1) | ||||||
| Test force N (kgf) |
Plastic | 49.03 (5) 132.4 (13.5) 358.0 (36.5) 962.1 (98.1) | |||||
| 588.4 (60) 980.7 (100) 1471 (150) | |||||||
| Rockwell | 147.1 (15) 294.2 (30) 441.3 (45) 588.4 (60) 980.7 (100) 1471 (150) | ||||||
| Brinell | 9.807 (1) to 2452 (250) | ||||||
| Indentation Brinell hardness | 612.9 (62.5) 1839 (187.5) 2452 (250) | ||||||
| Indentation Vickers hardness | 294.2 (30) 490.3 (50) | ||||||
| Power supply | AC100 to 200 V 50/60 Hz | ||||||
| Mass | 181 kg | ||||||
