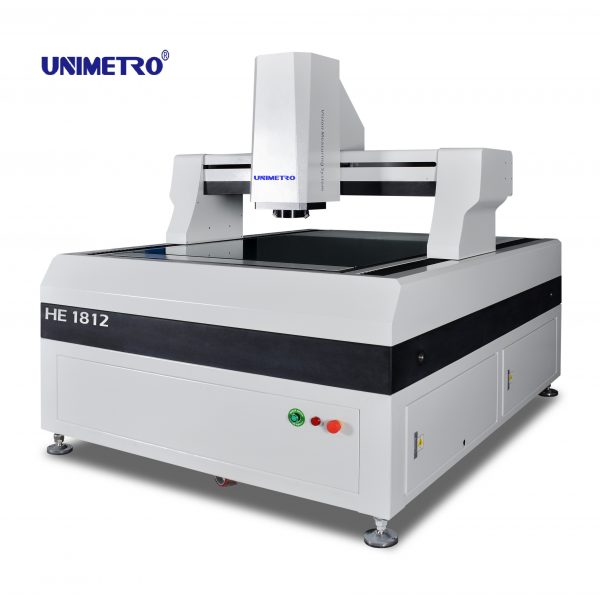

Ganty type
CNC CMM
HE1812

The HE series high accuracy gantry type Visual Measurement Systems combines high accuracy and high efficiency,offers high speed measuring for the geometric,elements,of different kinds of parts. The HE series is widely used in varies industries and products as PCB, copper clad laminate,pad glass,LCD modules,and insulation materials etc.

Finite elements analysis is introduced in the designing process of the HE series,ensure high rigidity and accurate mechanical structure.The machine base is using closed frame movable bridge type structure,which is simple and offers high loading capability and the best motion performance.

Visual Measurement Systems Features:
>> Movable gantry structure and the workpiece is fixed when measuring;
>> Four axis CNC full-automatic closed-loop control, full-automatic measurement;
>> 000 grade granite base and beam, stable and reliable;
>> Open grating ruler with resolution of 0.1 um, high precision and good stability;
>> Precision linear guide rail, grinding grade ball screw and Panasonic AC servo motor ensure the stability of positioning accuracy of machine motion system;
>> High resolution color camera to meet the requirements of clear observation and stable measurement;
>> 6.5x continuous automatic zoom lens, accurate automatic zoom, one pixel correction is enough;
>> The programmable 5-ring 8-zone LED surface light source and transmission parallel LED contour light source system can realize 256 level brightness adjustment intelligently;
>> The imported contact probe is configured to realize 3D measurement;
>> Immeasuring4.2 automatic image measurement software with independent property rights is provided as standard, which is powerful and easy to use;

Optical Measurement Equipment Optional Multi-sensor For 3D Measurement
>> Illumination:4/8/40 sections LED surface ring light; 48 sections 4 colors LED ring light; Movable 4 colors LED ring light
>> Lens:Manual dented zoom lens; Auto zoom lens,Manual dented zoom lens with co-axial light; Auto zoom lens with co-axial light.
>> Touch probe:Renishaw MCP kits,Measuring error <=0.75um; Renishaw PH6+TP20,Measuring error<=0.35um.
>> Laser sensor:KEYENCE non-contact laser sensor; White light measuring sensor.

SPECIFICATION
