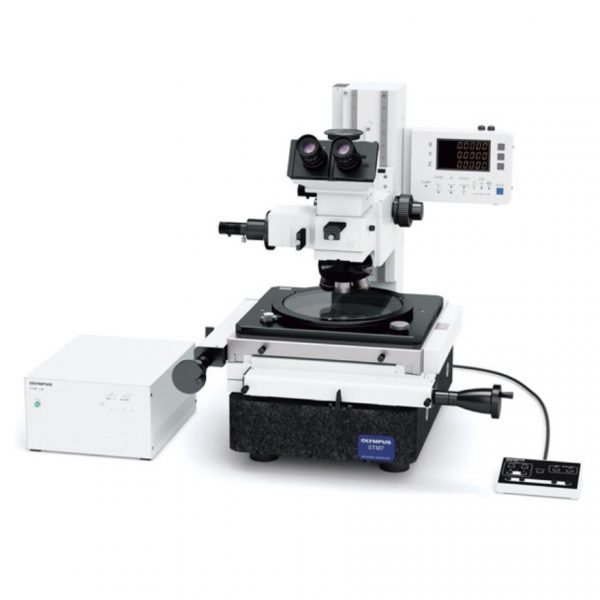

Measuring Microscope STM7-MF
200x200mm

Measurement Reliability Enhanced with a StageMounting Plate Crafted from Stone

To provide further assurance of measurement accuracy, the STM7 series uses a highly durable, vibration-resistant frame with a granite surface plate. As a result of this stability, measurements can be taken at sub-micron-levels while ensuring minimal error.

Continuing to Provide User-friendly, High-Precision, 3-axis Measurement as a Pioneer of Height Measurement

As modern manufacturing technology becomes increasingly miniaturized and precise, highly accurate measurements are even more essential—not only along the horizontal XY axes, but also along the Z-axis. Olympus has responded to such needs by being the fi rst to realize an autofocus system for measuring microscopes by means of the refl ective active, confocal method.

Observation Performance Refined through Years of Microscope Development

The STM7 series uses the same UIS2 infi nity-corrected optical system used in state-of-the-art optical microscopes. As a result, observed images have high resolution and high contrast, with aberration thoroughly eliminated to help ensure highly accurate measurement in minute detail.

Manual Z-axis Focusing Models

Simple and Highly-Precise Focusing System with Superior Repeatability

The Olympus’ focus navigator delivers highly reproducible height measurement by projecting a pattern within the fi eld of view and identifying vertical deviations. Slight errors can occur in height measurements taken with normal visual observation, even when focus appears to be sharp. The focus navigator, however, enables measurements to be made simply by matching up the marks thereby reducing operator subjectivity in measurement results.

Specification

Dimensions
