Microscope
Hyper
MF-UD2515B

Concept

Inspecting complex microstructures of ever-decreasing size demands ever-higher accuracy from measuring microscopes used to satisfy the manufacturing and quality control principle of Observation plus Measurement. Mitutoyo is committed to providing microscopes that meet this requirement as well as exceeding users’ expectations in terms of sophisticated functionality and ergonomic features that allow fatigue-free use over extended periods of time.

Core Technology

Over many years Mitutoyo has made significant contributions to the technologies that are key to the core technology of manufacturing industry: measurement. The experience and expertise gained is reflected in the design and manufacture of each individual component of these microscopes and can be seen most clearly in their sublime integration of optics, mechanics, and electronics.

Ergonomic Design

The microscope main unit has been designed with the emphasis on user friendliness and ease of operation. Mitutoyo
has executed the mechanical design to allow easy operation. Even after extended use, its fatigue-fighting design still provides a comfortable work-experience for the operator.

FS Optical System

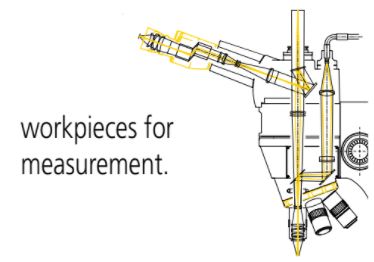

The FS optical system is respected more than ever before for its ability to enable measurement, observation and analysis with a leading-edge combination of long working distance and high NA. This optical system ensures high operability when measuring deep holes, steps, etc., or when setting up

Tilting Optical Tube

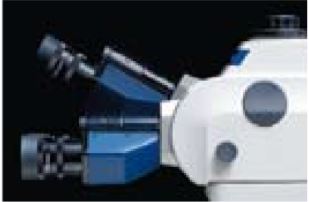

To reduce fatigue due to extended use, it is important that the operator use a microscope in an unforced posture. The eyepiece unit allows stepless adjustment of tilt angle so that, no matter what their physique, operators can always adjust the viewing position for comfortable working during any measuring task.

LAF Optical Tube

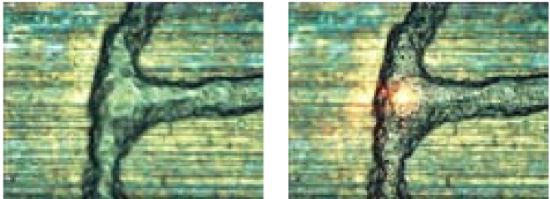

The LAF (Laser AF) optical tube can be selected as an option. The LAF system achieves high
repeatability when measuring minute steps, etc., enabling difficult measurements with minimum fatigue.

Front Operation

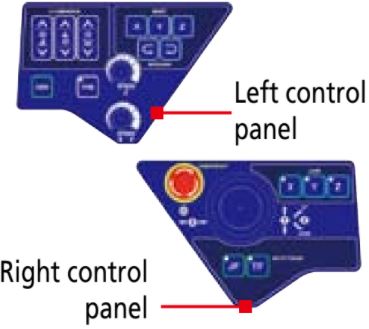

Controls are arranged to fall within easy reach of the operator on two control panels at the front of the microscope. This allows the operator to concentrate on measurement without having to look away from the eyepieces. Membrane technology makes the switches very durable.
