    MPLFLN-BDP

Objective Lens For Microscope
MPLFLN-BDP

Contact

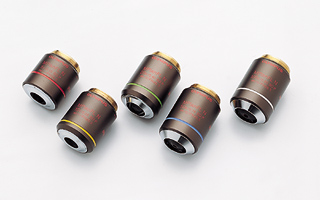

Objective Lens MPLFLN-BDP
Olympus
Contact

Available on backorder

Buy
+84 243 202 3000

Olympus’ MPLFLN-BDP lens is a one of our semi apochromat MPLFLN-BD objectives, this universal series provides the highest optimal performance in polarized light and differential contrast observation.

M Plan Semi-Apochromat MPLFLN-BDP

  • Objective lenses dedicated to Brightfield, Darkfield, Differential Interference Contrast (DIC) and polarized light
  • Plan semi-apochromat objective lenses corrected for apochromatic aberration at a high level
  • A line-up of objective lenses from 5x through 100x with working distance of 1mm or more
  • Unified pupil position from 5x through 100x to eliminate the need for switching DIC prism when changing objective lenses

Specifications

Magnification [X] 5 10 20 50 100
Numerical aperture (NA) 0.15 0.25 0.4 0.75 0.9
Working distance (WD) [mm] 12 6.5 3 1 1
Objective Field Number 26.5 26.5 26.5 26.5 26.5
Immersion medium Air/Dry Air/Dry Air/Dry Air/Dry Air/Dry
Spring loaded N/A N/A N/A N/A N/A
Correction collar N/A N/A N/A N/A N/A
Correction range of correction collar N/A N/A N/A N/A N/A
Iris N/A N/A N/A N/A N/A
Correction level of chromatic aberration Semi-apochromat Semi-apochromat Semi-apochromat Semi-apochromat Semi-apochromat
(FL) (FL) (FL) (FL) (FL)
Parfocalizing distance [mm] 45 45 45 45 45
Back focal plane (BFP) position -8 -8 -8 -8 -8
Type of screw thread W26X0.706 W26X0.706 W26X0.706 W26X0.706 W26X0.706
Brightfield(Reflected) Good Good Good Good Good
Brightfield(Transmitted) Good Good Good Good Good
Darkfield(Reflected) Good Good Good Good Good
Darkfield(Transmitted) N/A N/A N/A N/A N/A
DIC(Reflected) Good Good Good Good Good
DIC(Transmitted) N/A N/A N/A N/A N/A
Phase Contrast N/A N/A N/A N/A N/A
Relief Contrast N/A N/A N/A N/A N/A
Polarized Light Good Good Good Good Good
Fluorescence (B, G Excitation) Good Good Good Good Good
UV Fluorescence (at 365nm) Good Good Good N/A N/A
Multiphoton N/A N/A N/A N/A N/A
TIRF N/A N/A N/A N/A N/A
IR N/A N/A N/A N/A N/A
WLI N/A N/A N/A N/A N/A
Auto Focus N/A N/A N/A N/A N/A

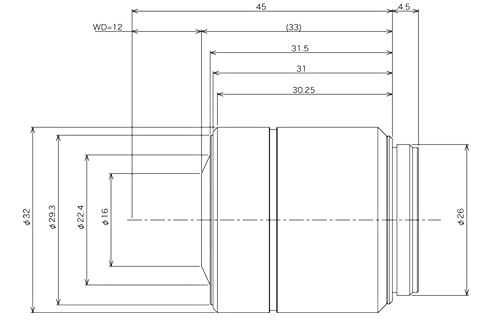

Dimensions
