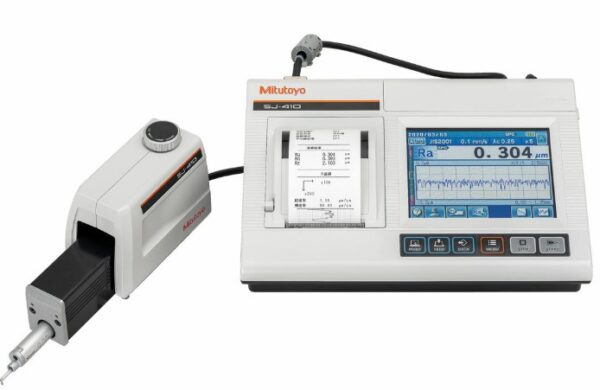

Portable Surface
Surftest
SJ-412

Contact
SJ-412
Mitutoyo
Contact

Available on backorder

Catalogue

Enhanced power for making measurements on site

Color-graphic LCD
The color-graphic LCD with excellent visibility displays calculated results and assessed profiles even clearer. This is useful fo  checking results without printing them out.

Backlight provided
A backlight improves usability in dim testing environments.



Touch screen for easier operations

The screen display can be switched between icon display and text display.

Easy to use and highly functional

This portable surface roughness tester is equipped with analysis functionality rivaling that of benchtop surface roughness testers.

Multilingual support

Password protection

Access to functions can be restricted by a password A pre-registered password can limit use of measurement conditions and other settings to the tester’s administrator.

More measuring functions than expected from a compact tester

Usually, a spherical or cylindrical surface (R-surface) cannot be evaluated, but, by removing the radius with a filter, R-surface data is processed as if taken from a flat surface.

Narrow space measuring function

Surface roughness measurement requires a run-up distance before starting the measurement (or retrieving data). When the SJ-410 Series measures, its run-up distance is normally set to  .5mm. This distance, however, can be shortened to 0.15mm using the narrow part measurement function (starting from the origin point of the drive unit). The function extends the possibility of measurement of narrow locations such as grooves in piston ring / O-ring mounts.

Specifications

Model No SJ-411
Measuring range X axis 50mm (2inch)
Z1 axis (detector unit) 800µm, 80µm, 8µm *Up to 2,400µm with an optional stylus
Detector Measuring principle Differential inductance
Resolution 0.01µm (800µm range) / 0.001µm (80µm range) / 0.0001µm (8µm range) 0.4µinch (32000µinch) / 0.04µinch (3200µinch) / 0.004µinch (320µinch)
Stylus tip 90°/5µm (200µinch)
Measuring force 4mN
Radius of skid curvature R40 mm (R1.57″)
Measuring method Skidded measurement / skidless measurement
Drive unit: X-axis Measuring speed 0.05, 0.1, 0.2, 0.5, 1.0mm/s (0.002, 0.004, 0.02, 0.04 inch/s)
Drive speed 0.5, 1, 2, 5mm/s (0.02, 0.04, 0.08, 0.2 inch/s)
Straightness 0.5µm / 50mm (20µinch/ 2inch)
Height-tilt adjustment unit Height adjustment 10mm (0.39inch)
Tilt adjustment ±1.5°
Standards JIS1982 / JIS1994 / JIS2001 / ISO1997 / ANSI / VDA
Parameters Ra, Rq, Rz, Ry, Rp, Rv, Rt, R3z, Rsk, Rku, Rc, RPc, RSm, Rmax*1 , Rz1max*2 , S, HSC, RzJIS*3 , Rppi, RΔa, RΔq, Rlr, Rmr, Rmr(c), Rσc, Rk, Rpk, Rvk, Mr1, Mr2, A1, A2, Vo, λa, λq, Lo, Rpm, tp*4 , Htp*4 , R, Rx, AR, W, AW, Wx, Wte, Possible Customize
Measured profiles Primary, Roughness, DF, Filtered waviness curve, R-Motif, W-Motif
Graph analysis BAC and ADC curves
Data compensation Parabola/ Hyperbola/ Ellipse/ Circle/ Conic/ Tilting, Compensation off
Filter 2CR, PC75, Gaussian filter
Cut-off length λc 0.08, 0.25, 0.8, 2.5, 8.0mm
λs *5 2.5, 8.0, 25mm (100, 320, 1000µinch)
Sample length 0.08, 0.25, 0.8, 2.5, 8.0, 25.0mm
Number of sampling lengths ×1, ×2, ×3, ×4, ×5, ×6, ×7, ×8, ×9, ×10, ×11, ×12, ×13, ×14, ×15, ×16, ×17, ×18, ×19, ×20
Arbitrary length 0.1~50mm
Functions Customization Desired parameters can be selected for calculation and display
Simple contour analysis function Step, Step volume, Dimensions, Coordinate difference
DAT function Helps to adjust leveling during skidless measurement
Real sampling function Samples stylus displacement for a specified time without engaging detector traverse.
Statistical processing Static measurement (max. 3 parameters) is possible. Static processing for MAX, MIN, AVERAGE, standard deviation, histogram and pass rate is possible
GO/ NG judgement*6 Max rule / 16% rule / Average rule / Standard deviation (1σ, 2σ, 3σ)
Storage functions 10 measuring conditions can be stored in internal memory
Printing function Measurement conditions / Calculation results / GO / NG judgement result / Calculation results for each sampling length / Measurement curve / BAC / ADC / Environmental setting information
Display languages Japanese, English, German, French, Italian, Spanish, Portuguese, Korean, Traditional Chinese, Simplified Chinese, Czech, Polish, Hungarian Turkish, Swedish, Dutch
Storage Internal memory: Measurement condition (10 sets) Memory card (option): 500 measurement condition, 10000 measuring data, 10000 text data, 500 statistic data, 1 backup of machine setting, the last ten traces (Trace 10)
External I/O USB I/F, Digimatic output, RS-232C I/F, External SW I/F
Power supply Battery Two-way power supply: battery (rechargeable Ni-MH battery) and AC adapter *Charging time: about 4 hours (may vary due to ambient temperature) *Endurance: about 1500 measurements (differs slightly due to use conditions / environment)
Power consumption 50W
Size (W×D×H) Display unit 275×198×109mm (10.83×4.29×7.80inch)
Height adjustment unit 130.9×63×99mm (5.16×2.48×3.90 inch)
Drive unit 154.5×35.8×46.6mm (6.08×1.41×1.83inch)
Mass Display unit 1.7kg
Height adjustment unit 0.4kg
Drive unit 0.64kg

Dimensions
