SNE 4500M Plus
SEC
Contact

Available on backorder

Catalogue

Cost-effective Table-top SEM with Max. 150,000x of magnification by miniaturizing modules.
Able to scan images with high resolution of 5nm by installation of variable aperture with ease of use



Able to use for Quality control, R&D and education purpose with various detectors which create surface information images (SE), and material informaiton images (BSE)

SE (Secondary Eletron)
▷ Creat images with the height level informaiton. Mostly used for surface inspection

BSE(BackScattered Eletron)
▷ Create images with material information(Elements)

The only Table-top SEM of which has 5-axis, enables unlimited movement of stage

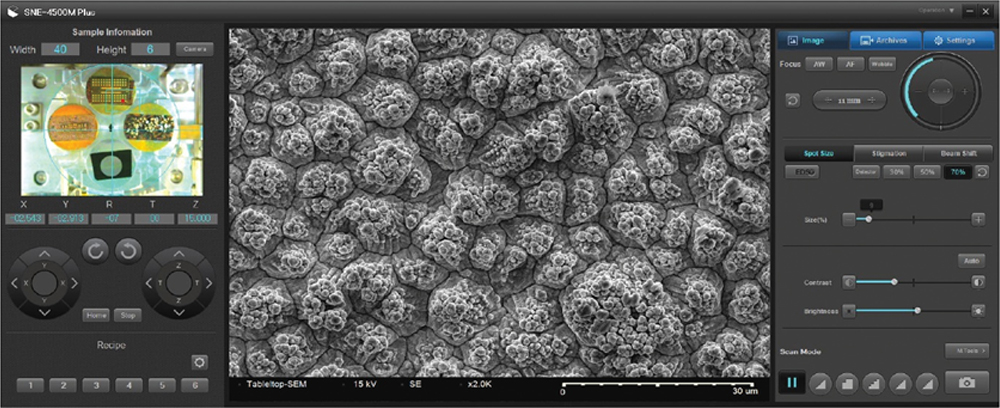

Easy and convenient image acquisition possible with “Click & Move” which is one of features of Motorized stage

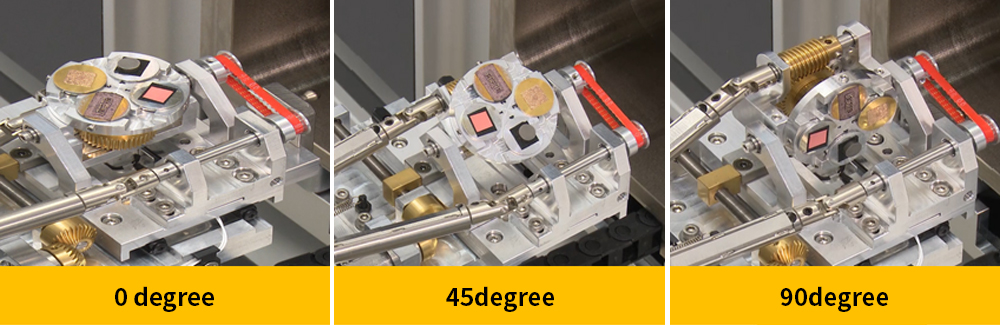

Able to get images of variable angles via Tilting -45°~90°, and easily analyze EDS

“Tilting -45˚ to 90˚ degree”

Specification

Electron System Resolution Plus A : 5nm (30kV, SE Image)
Plus B 5nm(SE), 8nm(BSE)
Magnification 20x~150,000x
Accelerating Voltage 1~30kV (1/5/10/15/20/30)
Detector Plus A : SE(Secondary Electron)
Plus B : SE/BSE(back Scattered Electron) *Dual Detector
Electron Gun Pre-centered Tungsten Filament Cartridge
Stage System Stage Traverse X : 40mm, Y : 40mm, R : 360˚, Z : 0 to 40mm, T : -45 to 90˚
5-axis Moterized
Max. Sample Size 80mm in Diameter x 35mm in Height
Image System Automation Function Auto Start, Auto Focus
Image Format BMP, JPEG, PNG, TIFF
Vacuum System Vacuum Mode Plus A : High Vacuum
Plus B : High & Low Vacuum(Multi)
Vacuum Pump Rotary Pump / Turbo Molecular Pump (Full Automation)
Dimensions Main Unit 390(W)x380(D)x560(H)mm, 88kg
Controller Unit 390(W)x325(D)x560(H)mm, 37kg
Rotary Pump 400(W)x160(D)x340(H)mm, 24kg
