Available on backorder
|
|
L:
|
58.2 mm
|
|
b:
|
7.3 mm
|
|
|
c:
|
32.5 mm
|
|
|
a:
|
17.5 mm
|
|
Accuracy:
|
±2 µm
|
|
Flatness:
|
0,3 µm
|
|
Parallelism:
|
2 µm mm
|
|
Anvil / Spindle:
|
Type A, flat/flat
|
|
Range:
|
0 – 25 mm
|
|
Mass:
|
330 g
|
|
Accuracy:
|
Refer to the list of specifications (excluding quantizing error)
|
|
Measuring face:
|
Carbide-tipped, micro-lap finish, stepped
|
|
Battery life:
|
Approx. 2,4 years
|
|
Delivered:
|
Including box, setting standard (from 25 mm upward), key, 1 battery
|
|
Maximum Permissible Error J MPE:
|
±2 µm
|
|
Digital step:
|
0,001 mm
|
|
Battery life:
|
Approx. 2,4 years
|
|
HOLD:
|
Yes
|
|
ORIGIN:
|
Yes
|
|
ZERO/ABS:
|
Yes
|
|
Auto Power OFF
after 20 min. non use: |
Yes
|
|
Data output:
|
Yes
|
|
Low voltage alarm:
|
Yes
|
|
Function lock:
|
Yes
|
|
Digital/Analog:
|
Digital
|
|
Inch-Metric:
|
Metric
|
|
Measuring spindle:
|
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
|
|
Parallelism:
|
2 µm
|
|
Scale:
|
Thimble and sleeve satin chrome finish, ø18 mm
|

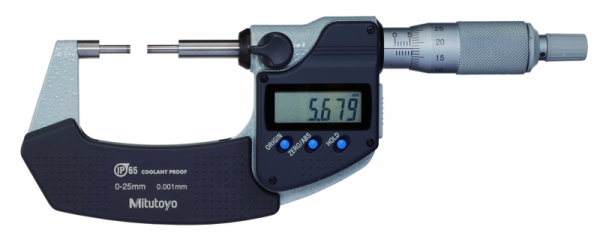

This Digimatic Spline Micrometer makes it easy for you to measure grooves and shaped parts. It offers you the following benefits:
