Available on backorder

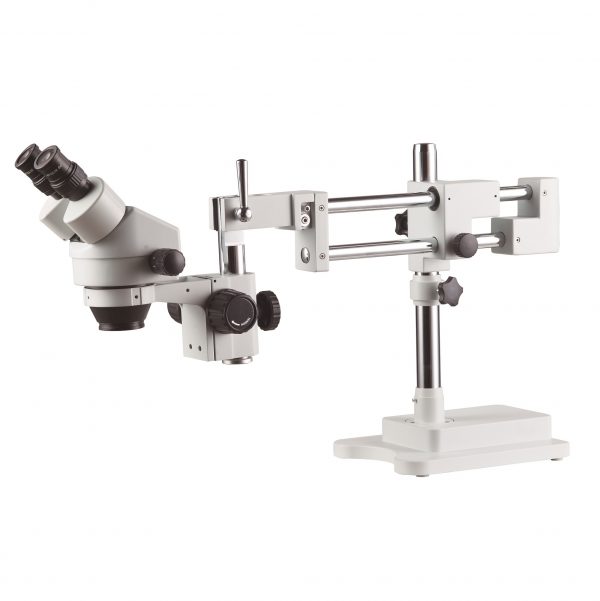

SZM7045 Series Stereo Zoom Microscope can provide crystal clear sharp images with high resolution and good depth within a broad field of view. Once brought in focus, images remains clear and sharp throughout the whole zoom range. It is widely used in electronic industry, educational demonstration and agricultural research for micro-object observation, inspection and measurement.
Eyepiece |
Standard |
Auxiliary Lens 0.5X |
Auxiliary Lens 1.5X |
Auxiliary Lens 2X |
||||
W.D. 100mm |
W.D. 165mm |
W.D. 45mm |
W.D. 30mm |
|||||
Mag. |
F.O.V |
Mag. |
F.O.V |
Mag. |
F.O.V |
Mag. |
F.O.V |
|
10X/20mm |
7.0X |
28.6mm |
3.5X |
57.1mm |
10.5X |
19mm |
14.0X |
14.3mm |
45.0X |
4.4mm |
22.5X |
8.9mm |
67.5X |
3mm |
90.0X |
2.2mm |
|
15X/15mm |
10.5X |
21.1mm |
5.25X |
42.8mm |
15.75X |
14.3mm |
21.0X |
10.7mm |
67.5X |
3.3mm |
33.75X |
6.7mm |
101.25X |
2.2mm |
135.0X |
1.7mm |
|
20X/10mm |
14.0X |
14.3mm |
7.0X |
28.6mm |
21.0X |
9.5mm |
28.0X |
7.1mm |
90.0X |
2.2mm |
45.0X |
4.4mm |
135.0X |
1.5mm |
180.0X |
1.1mm |
|
25X/9mm |
17.5X |
12.9mm |
8.85X |
25.4mm |
26.2X |
8.6mm |
35.0X |
6.4mm |
112.5X |
2.0mm |
56.3X |
4.0mm |
168.8X |
1.3mm |
225.0X |
1.0mm |
|
30X/8mm |
21.0X |
11.4mm |
10.5X |
22.9mm |
31.5X |
7.6mm |
42.0X |
5.7mm |
135.0X |
1.8mm |
67.5X |
3.6mm |
202.5X |
1.2mm |
270.0X |
0.9mm |
|
Magnification |
7X-45X, 3.5X-270X with optional eyepieces and objectives |
|||||||
Eyepiece |
WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses |
|||||||
Optional Eyepiece |
WF10X/20mm, WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm |
|||||||
Main Body |
Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired |
|||||||
Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters |
||||||||
Objective |
0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1 |
|||||||
Aux Lens |
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X |
ID.32mm for Pole
ID.76mm for Microscope Body
Dist.Centre-to-centre:155mm
The Vertical W.D.50mm
Expand the scope of operation and observe the object in any direction
Vertical Post:380mm
Diameter:Ф32mm
Horizontal moving:235mm
Base Size :210x260x50mm
With A1 Focusing Mount
