Available on backorder
|

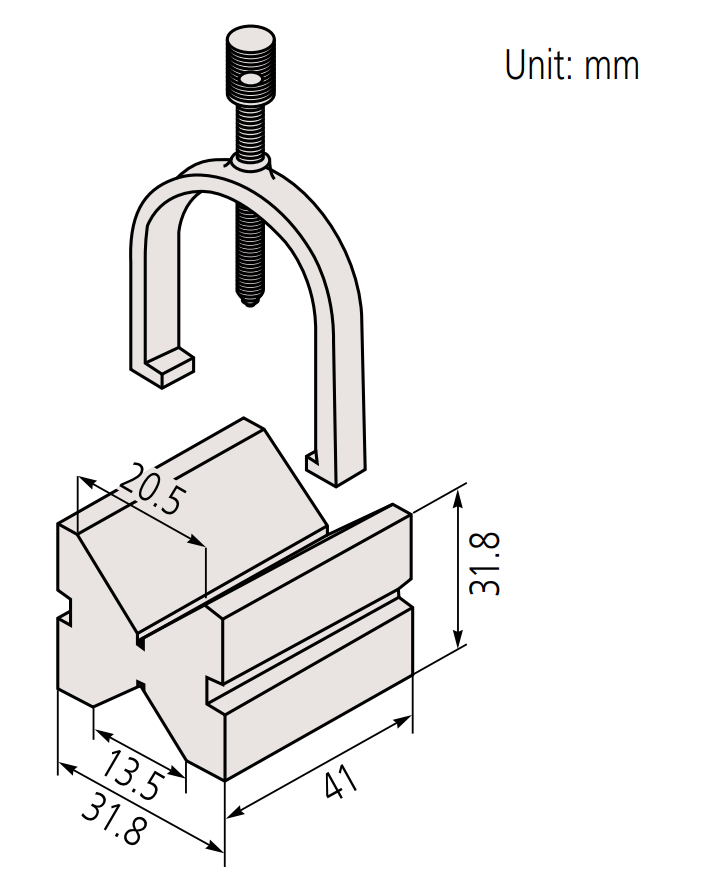

Length
[mm]: |
41
|
|
Width:
|
31.8 mm
|
|
Max. receiver for workpiece V-groove 1 Ø:
|
25
|
|
Max. receiver for workpiece V-groove 2 Ø:
|
16
|
|
Height:
|
31.8 mm
|
|
Mass:
|
0.65 kg
|
|
Delivered:
|
In pairs
|
|
Parallelism between V-groove and all side surfaces:
|
6 µm
|
|
Perpendicularity between V-grooves and back surface:
|
9 µm
|
|
Hardness:
|
58-63 HRC
|
|
Difference of the height of the pair:
|
12 μm
|
|
Symmetry of the V-grooves:
|
6 µm
|
|
Inch-Metric:
|
Metric
|

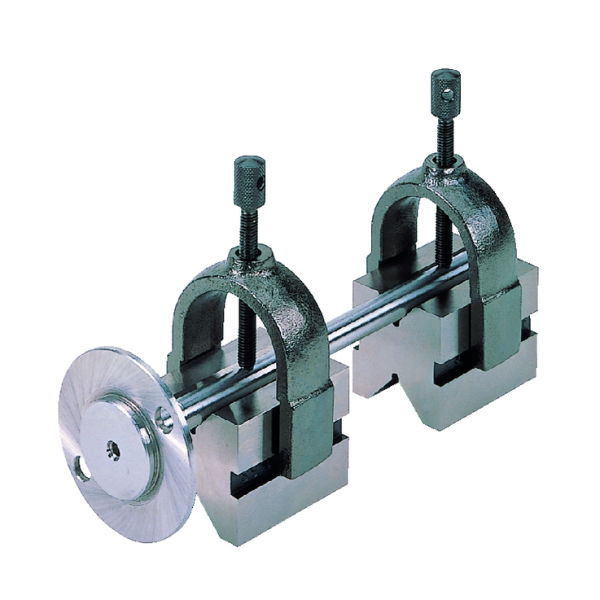

These Hardened Steel V-Blocks have clamp brackets and offer you the following benefits:
