Available on backorder
|
X-ray Tube |
130 kV / 200 µA |
|
Min. Resolution |
6~15 µm |
|
Detector |
8 M Pixel FPD |
|
Chip Size |
Min : 8 x 6 (mm) , Max : 20 x 20 (mm) |
|
Defects |
Non-wet, Open, Short, Big / Small ball |
|
Dimension |
2,300(W) x 2,400(D) x 2,120(H)mm / 4,800kg |

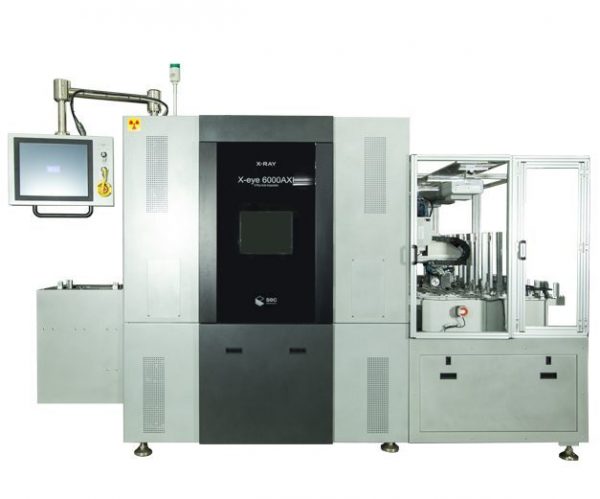

3D CT X-ray Inspection System for POP(Package on Package)
3D automatic X-ray inspection system for POP(Package on Package), having the latest semiconductor layering technology.
From loading to judgement of NG/Good & sorting out of POP products would be made automatically.
And results would be saved into basic data based to help SPC. It has the fastest inspection speed of 2.5sec/FOV.
Cu pillar Bump non wet
POP Bump Short
Applications
SEC is the best inspection system company developing & selling industrial X-ray inspection system and SEM(Scanning Electron Microscope).We develop and offer linear accelerator and semiconductor packaging system for LCD driver IC as well.
Since established in 1991, based on over 20 years of accumulated technical know-how, we have been continuously developing backbone of e-beam inspection equipment in Korea.
SEC has its own competitiveness against global companies by continuously localizing X-ray generater and developing new technologies.
Also, go through continuous technology development and aware of the current economic and technological environment, we will continue to constantly challenged to expand business area and move into the future Global Leader.
SEC stands for ‘second’; a standard unit of time, which comes in our basic value to meet customer satisfaction by delivering punctual response for customer’s request.
” Superior Service & Exciting Challenge! ”
From 21th century, we build our vision “Superior Service & Exciting Challenge!”
that pursue our challenge spirit as well as punctuality.
SEC will strive to keep the principle of providing excellent products with reasonable price at the right time and to satisfy customers with best service.
