X-eye 6200
SEC
Contact

Available on backorder

Catalogue

X-ray Tube

160 kV / 500 µA (option 130 KV / 300 µA)

Min. Resolution

0.8 ~ 15 µm

Table Size

Min : 50 x 50 (mm), Max : 330 x 250 (mm)

Detector

1.6 M Pixel FPD

Defects

BGA : Short, Bridging, Void

Chip : Manhattan, Miss align, Short

Wire Bonding : Sweep, Broken, Double Bonding, Missing

Objects

BGA, Chip, QFN, QFP, Wire Bonding
Dimension 1,000(W) x 1,360(D) x 1,450(H)mm / 2,000kg



In-Line X-ray Inspection System
Automatically in-line inspect Solder joint defects of PCBA, and other defects on Hidden Components.
Able to judge Good/NG fast with inspection speed of 1sec/FOV and the program can set ROIs conveniently.
Performing X-ray inspection in various production site, integrated with other manufacturing equipements.

  • High speed 2D In Line inspection System (0.5 sec/FOV)
  • Hybrid Tube with long life span for In-line purpose (10,000hrs/Filament)
  • WAXI : Wire Automatic X-ray Inspection Detection of wire defects possible (Shorts, sweep, mssing, etc)

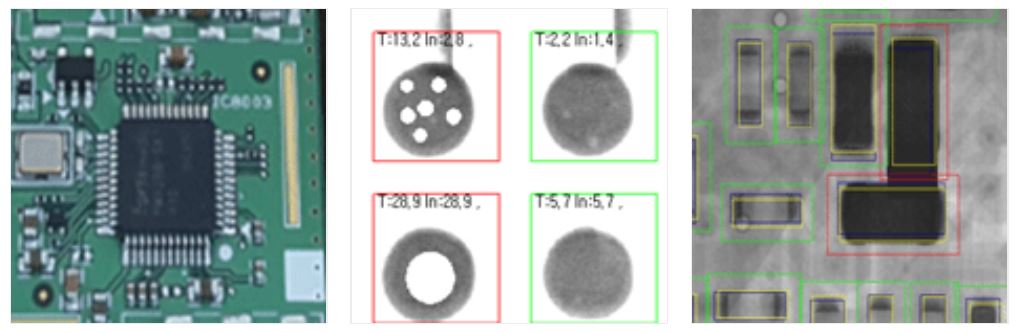

SMT Chip BGA / 2D Inspection

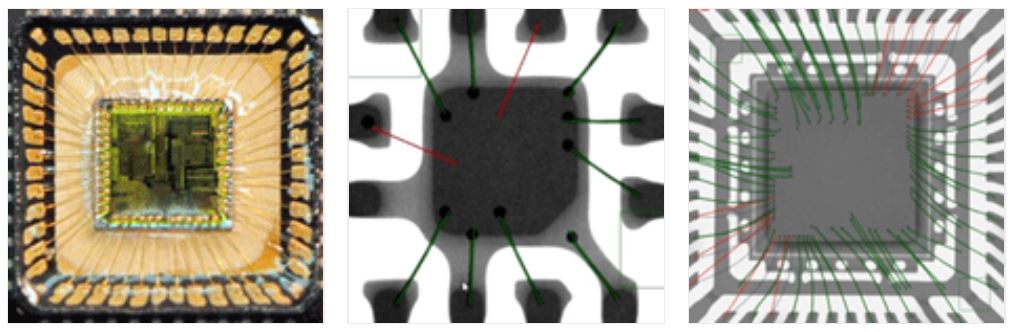

Wire Bonding / 2D Inspection

Applications

SEC is the best inspection system company developing & selling industrial X-ray inspection system and SEM(Scanning Electron Microscope).We develop and offer linear accelerator and semiconductor packaging system for LCD driver IC as well.

Since established in 1991, based on over 20 years of accumulated technical know-how, we have been continuously developing backbone of e-beam inspection equipment in Korea.
SEC has its own competitiveness against global companies by continuously localizing X-ray generater and developing new technologies.

Also, go through continuous technology development and aware of the current economic and technological environment, we will continue to constantly challenged to expand business area and move into the future Global Leader.
