X-ray Machine
X-eye
6300

Contact
X-eye 6300
SEC
Instock

Catalogue

X-ray Tube

160 kV / 500 µA

Min. Resolution

0.8 ~ 15 µm

Table Size

Min : 50 x 50 (mm), Max : 330 x 250 (mm)

Detector

12 inch FPXD

CT Scan Method

Oblique CT

Objects

BGA, Through Hole, BGA, Chip, QFN, QFP

Defects

BGA Short, Bridging, Open, De-wet, Void, etc

Foot print

1,360 x 1,880 x 1,700 mm Control Box : 640 x 950 x 1,190 mm

Weight

4,200kg

X-ray Machine With High-speed In-Line 3D CT Inspection System
Automatically inspects the defects of products in customer’s line with high-speed 3D CT tomography.
Able to inspect every defects of Double-sided PCBA & BGA mounted components precisely by solving overlapped X-ray image issue.
Inspection speed of 4 sec/FOV from loading to automatic Good/NG judgement.

  • High speed 3D In Line Inspection System (~4.3 sec/FOV)
  • Hybrid Tube with long life span for In-line purpose (10,000hrs/Filament)
  • Best Solution for both-side layered PCB

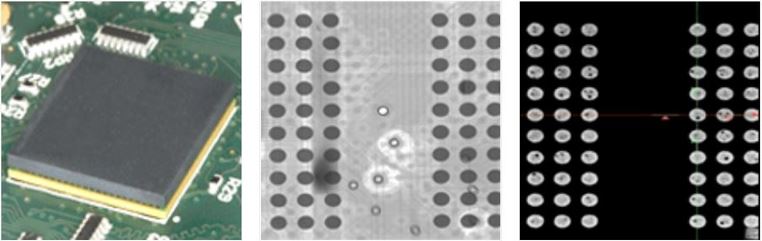

BGA Void / 3D Inspection

Through Hole Filling / 3D Inspection

Applications



SEC is the best inspection system company developing & selling industrial X-ray inspection system and SEM(Scanning Electron Microscope).We develop and offer linear accelerator and semiconductor packaging system for LCD driver IC as well.

Since established in 1991, based on over 20 years of accumulated technical know-how, we have been continuously developing backbone of e-beam inspection equipment in Korea.
SEC has its own competitiveness against global companies by continuously localizing X-ray generater and developing new technologies.

Also, go through continuous technology development and aware of the current economic and technological environment, we will continue to constantly challenged to expand business area and move into the future Global Leader.
SEC stands for ‘second’; a standard unit of time, which comes in our basic value to meet customer satisfaction by delivering punctual response for customer’s request.
” Superior Service & Exciting Challenge! ”
From 21th century, we build our vision “Superior Service & Exciting Challenge!”
that pursue our challenge spirit as well as punctuality.
SEC will strive to keep the principle of providing excellent products with reasonable price at the right time and to satisfy customers with best service.
