Available on backorder
|
Range:
|
0 – 300 mm
|
|
Base (W x T):
|
101.6 x 16 mm
|
|
Number of rods:
|
12
|
|
Mass:
|
790 g
|
|
Delivered:
|
Including box, key and 1 battery
|
|
Scale:
|
Thimble and sleeve satin chrome finish, ø18 mm
|
|
Measuring span:
|
25 mm
|
|
Spindle pitch:
|
0,5 mm with spindle lock
|
|
Zero point errors of rods:
|
±4 µm (0-150 mm)
±6 µm (0-300 mm) |
|
Micrometer Head Feed (0-25 mm) (excluding quantizing error):
|
±3 µm
|
|
Flatness of reference surface (base):
|
2 µm
|
|
Flatness of measuring face (rod):
|
0.3 µm
|
|
Parallelism between measuring face (rod) and reference surface (base):
|
(4+L/50) µm
L = max. measuring length (mm) |
|
Measuring face:
|
Hardened, precision ground, micro-lap finish
|
|
Base:
|
Hardened tool steel
|
|
Battery life:
|
approx. 2,4 years
|
|
DATA (output with cable) / HOLD (display value):
|
Yes
|
|
Lock function:
|
Yes
|
|
Auto Power OFF
after 20 min. non use: |
Yes
|
|
PRESET 2 x:
|
Yes
|
|
Low voltage alarm:
|
Yes
|
|
Data output:
|
Yes
|
|
ZERO/ABS:
|
Yes
|
|
Digital/Analog:
|
Digital
|
|
Inch-Metric:
|
Metric
|

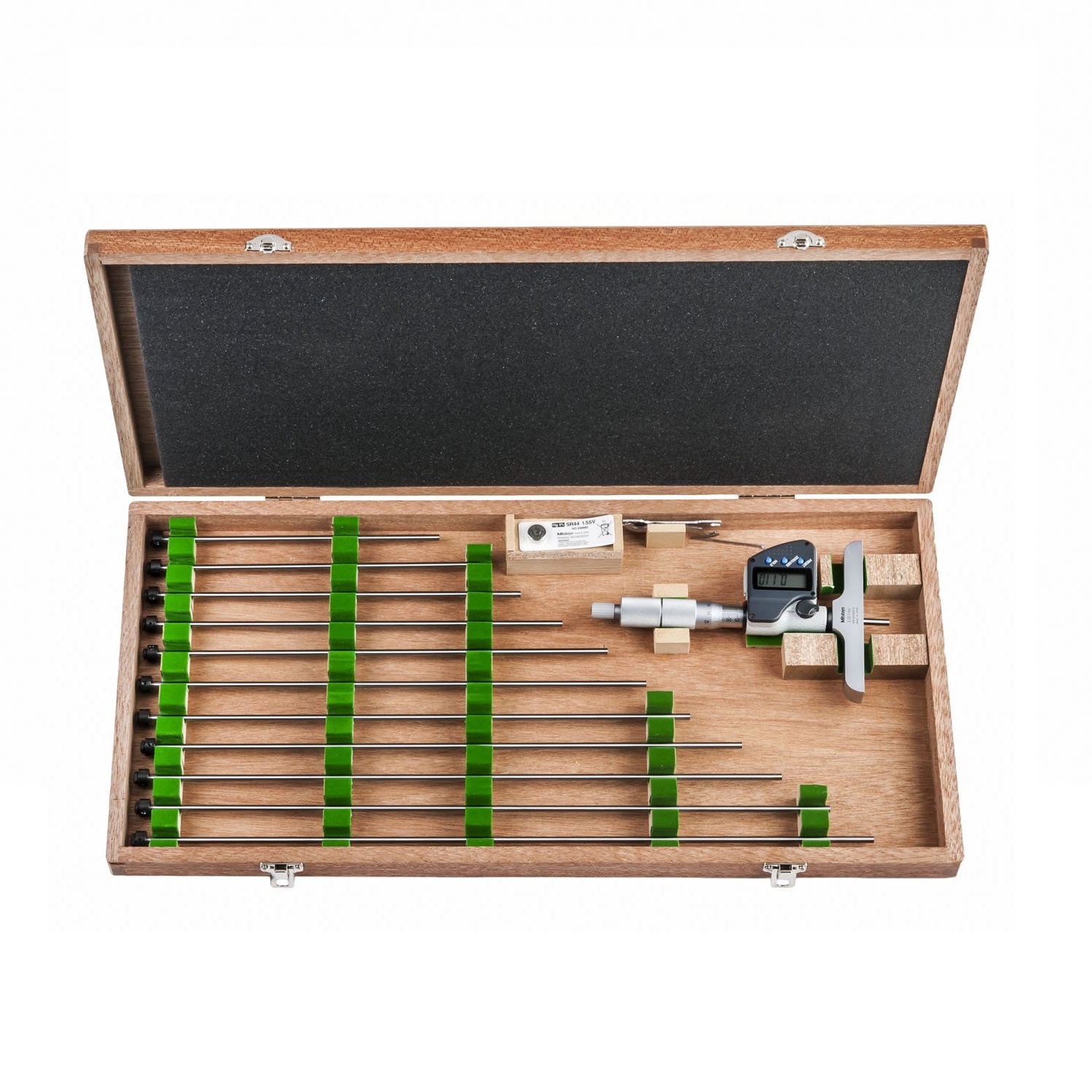

This interchangeable rod type micrometer can be used for wide range measurements. It offers you the following benefits:
