Non-Contact
Probe

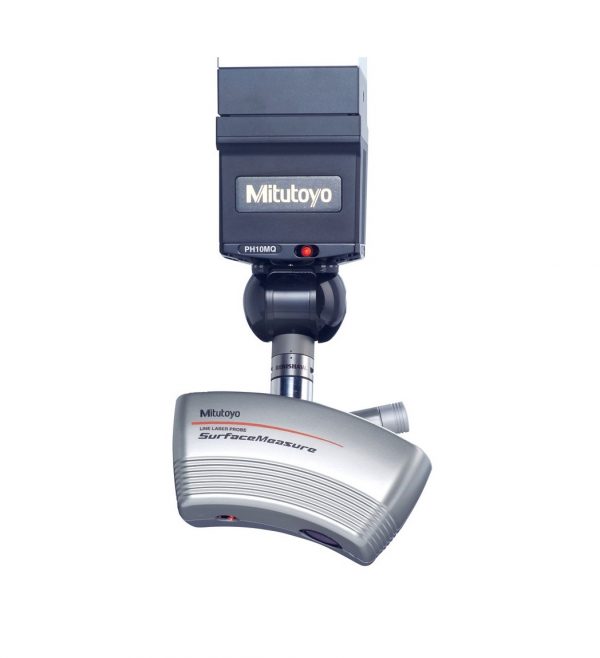

SurfaceMeasure

New scanning probe automatically adjusts to workpiece surface characteristics to deliver highly efficient measurements. With a conventional laser probe, laser intensity and camera sensitivity must be adjusted according to the environment and the workpiece material. In contrast, the SurfaceMeasure 606, which automatically adjusts these factors, enables simpler and more comfortable laser scanning.

Specifications:

• Working distance: 3.66″(93mm)
• Max. scan width: 2.36″(60mm)
• Measuring range: 2.36″(60mm)
• Scanning error: 12 μm [1σ/ sphere fit]
