Stereo Microscope
SZX16
0.7x-11.5x

A Wide Zoom Range

With a zoom range of 0.7x to 11.5x, users can observe fine details while maintaining a wide field of view without replacing objective lenses.

Large Selection of Objective Lenses

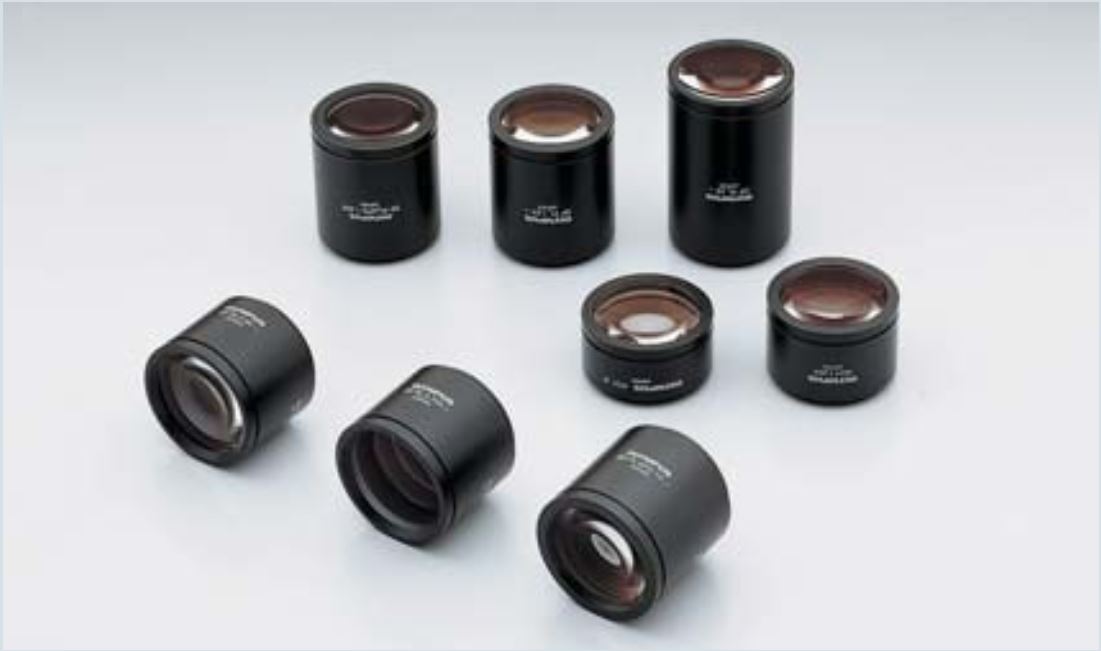

Lineup of Objective Lenses

The astigmatism-free SDF series of objectives provide high-resolution and high-contrast images. Select from six different lenses based on your specimen requirements.

With the combination of a large, seamless zoom ratio and a comprehensive range of parfocal objectives (0.5X, 1.0X, 1.6X, and 2.0X), the SZX16 takes you from a macro-view to a micro-view. The range of resolution and magnification choices helps make your work efficient and precise so you get more information from your samples.

Versatile Illumination Solutions

Stands and Illumination Units

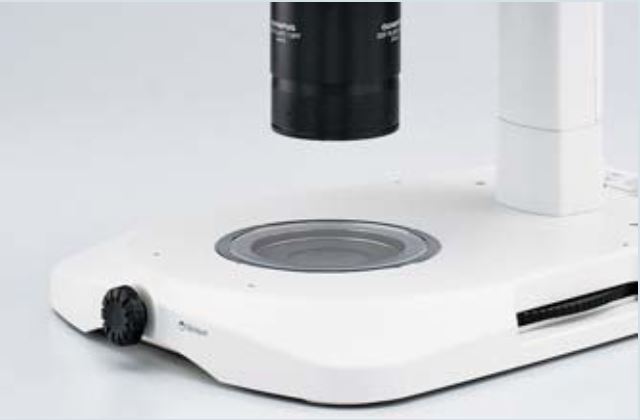

Low-profile LED Illumination Base

The Olympus SZX2 series features the unique Olympus LED base system for fine control of transmitted illumination and bright, even images. With the ultra-slim 40 mm base, the SZX2 series has the ergonomic stage height available . Moreover, a novel carousel makes it easy to select and control brightfield, darkfield, and oblique illumination. The long-life LEDs do not heat the stage or the sample, greatly enhancing the flexibility for material stereo microscopy.

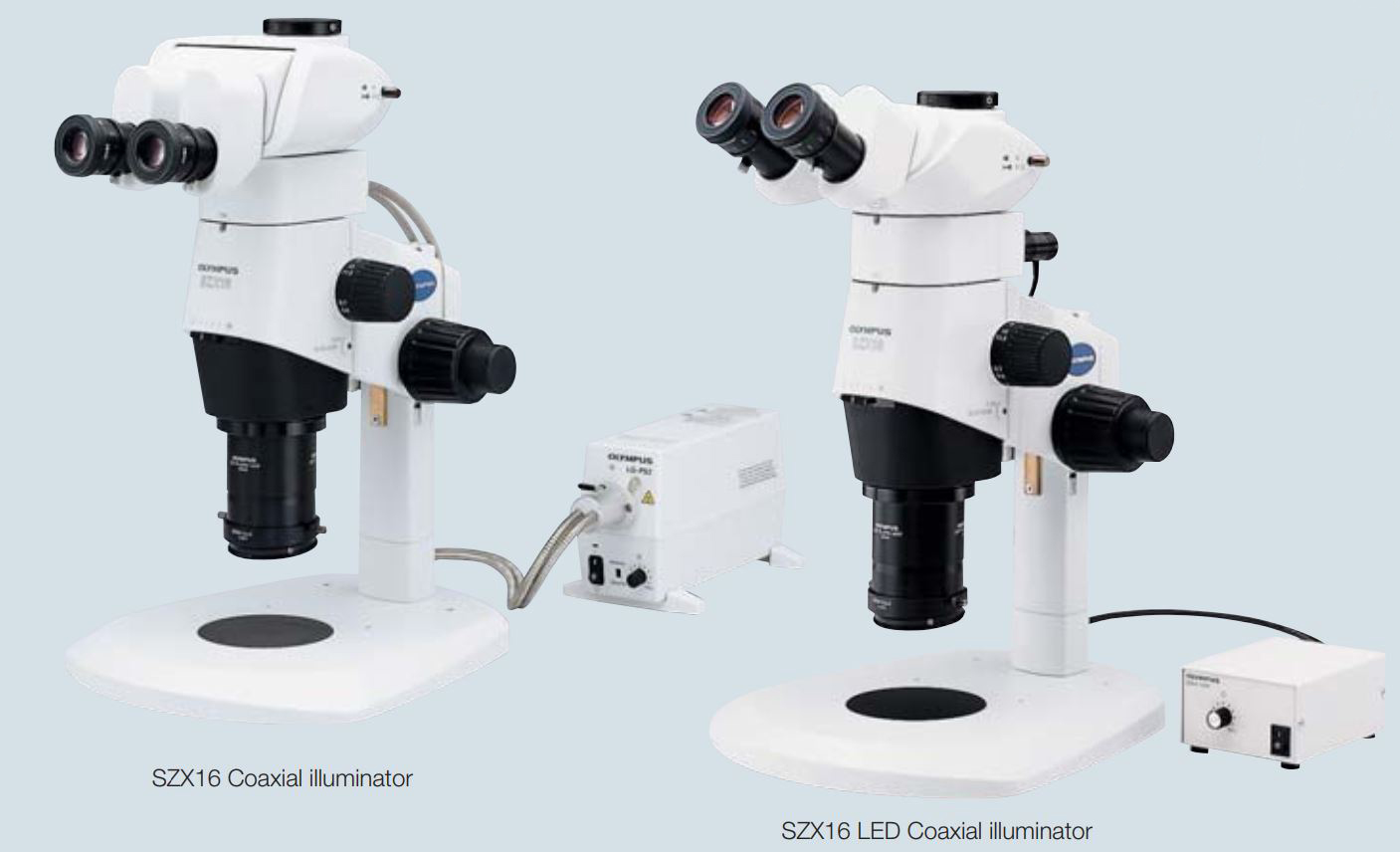

Selectable Reflected Light Illumination Lineup

Versatile reflected illumination units include the ring light illuminator and coaxial illuminator. Choose the illumination system based on your specific application requirements.

High Performance Cameras

With the SZX16 you will want to document or show live digital views of your sample. By utilizing a trinocular head and moving the objective in the axial imaging pathway a perpendicular view of the sample is obtained. Attaching the Olympus DP cooled digital camera produces a very flexible imaging station. This is designed for high resolution documentation (up to 17.3 mega pixels) as well as high-speed imaging for live views. The advanced interface enables excellent color reproduction and no visible color shifts during sample movement.

Image Analysis Software

OLYMPUS Stream imaging  software offers all the tools required to undertake simple 2D measurements through complex analysis in an easy to use environment and supports a multitude of operations including observation, report generation, database creation, and archiving. The SZX16 motorized focus drive makes digital documentation efficient and fully automatic with extended focal imaging (EFI). EFI enables users to easily create pseudo-3D images.

Olympus offers a complete line up of digital cameras and analysis/measurement software. Your Olympus representative will help you choose which products best meet your requirements.

The versatile SZX16 microscope is designed for very demanding applications with the ability to resolve 900 line pair/mm. Utilize the full zoom range (0.7x–11.5x) with our dual turret. The extendable eyepoint adjuster provides comfortable posture for users of different heights.

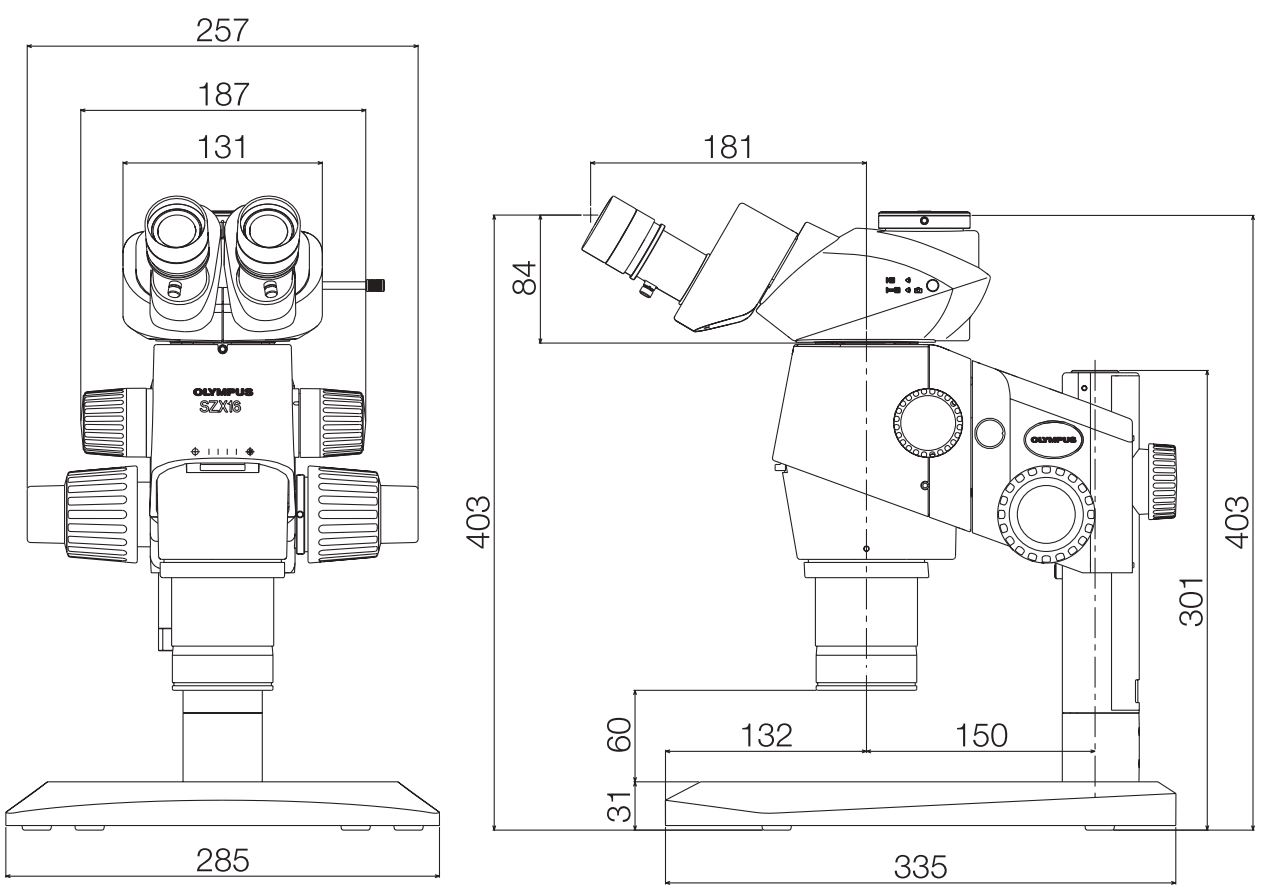

Dimensions
