Thông số kỹ thuật Panme 293-130
|
Mass:
|
400 g
|
|
Digital step:
|
0,000005″/0,00002″ or 0,0001 mm/0,0005 mm
|
|
Instrumental error:
|
± 0,00002″
|
|
Flatness:
|
0,000012″
|
|
Accuracy:
|
Refer to the list of specifications
(excluding quantizing error) |
|
Measuring face:
|
Carbide-tipped, micro-lap finish, ø3.2 mm
|
|
Measuring surface:
|
ø3.2 mm, carbide tipped, micro-lap finish
|
|
Measuring system:
|
Electromagnetic induction type ABS rotary sensor
|
|
Battery life:
|
Approx. 2 years
|
|
Delivered:
|
Including box, key, driver, 1 battery, heat insulating cover, certificate of inspection
|
|
Maximum Permissible Error J MPE:
|
±0,00002″
|
|
Power supply:
|
Lithium battery (CR-2032) x 1
|
|
Battery life:
|
Approx. 2 years
|
|
PRESET:
|
Yes
|
|
ON/OFF:
|
Yes
|
|
Auto Power OFF
after 20 min. non use: |
Yes
|
|
Function lock:
|
Yes
|
|
Data output:
|
Yes
|
|
Low voltage alarm:
|
Yes
|
|
HOLD:
|
Yes
|
|
Resolution switching:
|
Yes
|
|
Digital/Analog:
|
Digital
|
|
Inch-Metric:
|
Inch/Metric
|
|
Measuring spindle:
|
With spindle lock, ø6,35 mm, spindle pitch 0,635 mm
|
|
Power supply report:
|
UN 38.3 Test Summary Report
|
|
Parallelism:
|
0,6 µm
|
|
Scale:
|
Thimble and sleeve satin chrome finish, ø 25 mm
|

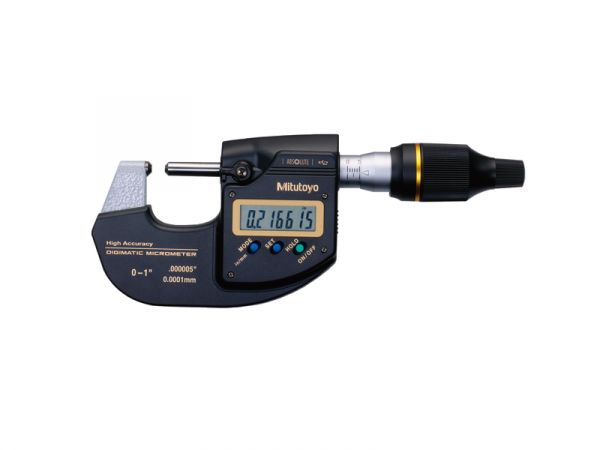

This Micrometer enables 0.1 μm resolution measurements and is ideal for customers who need to make highly accurate measurements with a hand-held tool (such as Gauge R & R analysis).
The Absolute High-Accuracy Micrometer offers the following benefits:
