Bộ hiệu chuẩn độ sâu 515-571
0-300mm

Liên hệ
bộ 515-571
Mitutoyo
Liên hệ

Cho phép đặt hàng trước

Catalogue

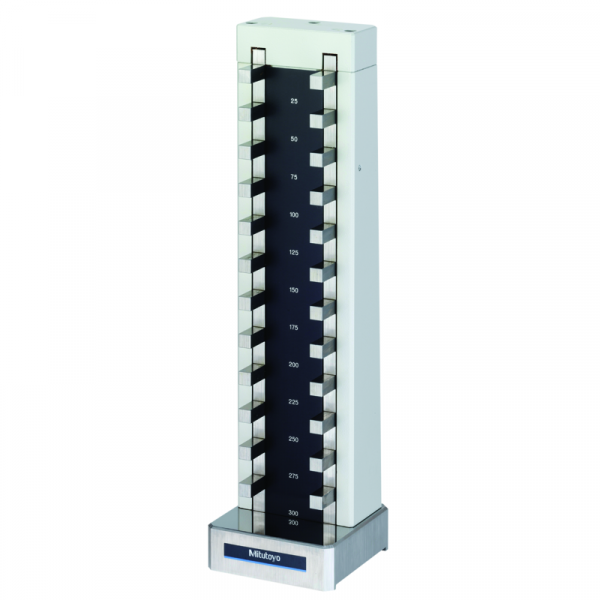

Bộ hiệu chuẩn đo sâu 515-571

 Thông số kỹ thuật bộ hiệu chuẩn 515-571

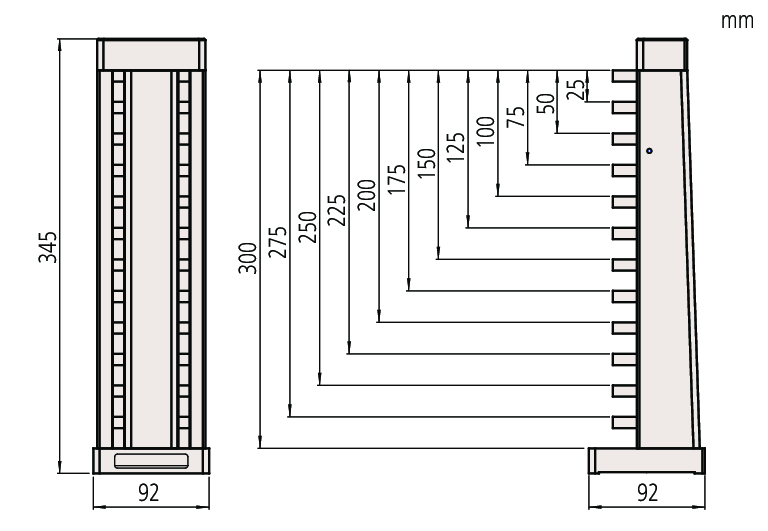

515-571.eps

Range:
0 – 300 mm
Reference length :
25, 50, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300 mm
Mass:
17 kg
Anvil block accuracy:
±0.5 µm
Block pitch accuracy:
±(1+L/150)µm L= lenght to check (mm)
Inch-Metric:
Metric

This Depth Micro Checker offers you the following benefits:

  • The Depth Micro Checker is designed to let you check and help set the range-end points of a depth micrometer.
  • A 25mm carbide gauge block is provided as the reference surface.

Xem thêm Thước đo sâu Mitutoyo tại đây.
