Chân đế gá đồng hồ so 7002
ø8mm, ø9.53mm

Liên hệ
Đế 7002
Mitutoyo
Liên hệ

Cho phép đặt hàng trước

Catalogue

Chân đế gá đồng hồ so 7002

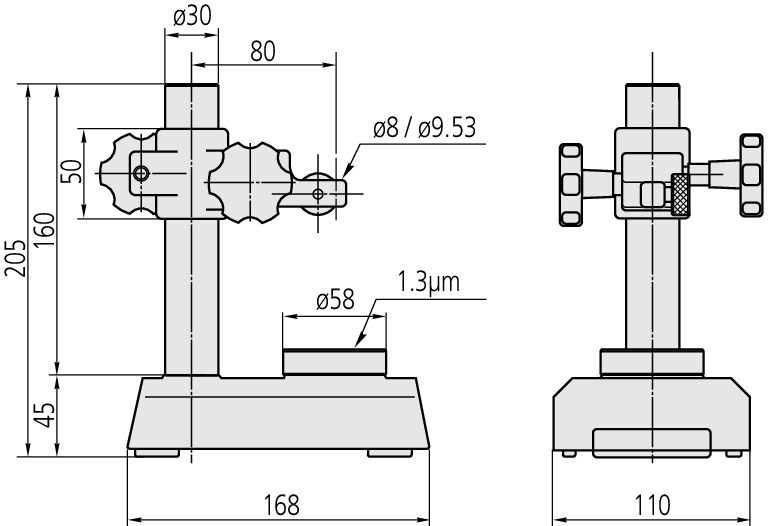

 Thông số chân đế 7002

7002.eps

Effective table dimensions:
Ø 58 mm
Column Ø:
30 mm
Max. measurement height
:
95 mm
Measuring table:
Flat (101461)
Mass:
4 kg
Base size :
168 x 110 mm mm
Fine adjustment:
1 mm
Table flatness:
1,3 µm
Stem hole ø:
9,53 mm, 8 mm with bush (standard accessory)
Perpendicularity table-stem hole:
0.4/100 mm

This gauge stand with hardened steel anvil offers you the following benefits:

  • Standard version with round anvil
  • Dial Gage Stands are designed for comparison measurements of size using a dial indicator or Digimatic Indicator.
  • Vertical fine adjustment is available with one-touch control thanks to the parallel spring suspension

Xem thêm Chân đế Mitutoyo tại đây.
