Chân đế từ gá đồng hồ so 7031B
ø6mm, ø8mm, ø9.53mm (3/8”)

Liên hệ
Đế 7031B
Mitutoyo
Liên hệ

Cho phép đặt hàng trước

Catalogue

Chân đế gá đồng hồ so 7031B

 Thông số chân đế 7031B

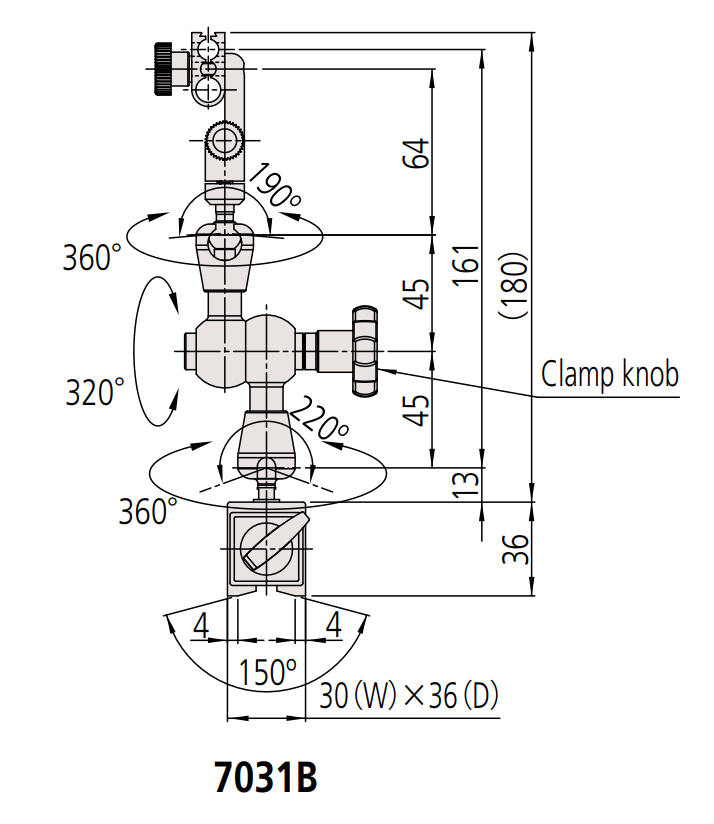

7031B.eps

Clamping device:
magnetic
Magnetic force (vertical):
300 N
Base size
(LxWxH):
36 x 30 x 36 mm
Total height:
214 mm
Fine adjustment °:
±4
Stem hole ø:
6 mm, 8 mm, 9.53 mm
Working radius:
159 mm
Thread Arm/Base:
M5 x 0.8
Mass:
0.59 kg

This jointed magnetic stand offers you the following benefits:

  • It comes with a mechanical locking system and allows fine adjustment.
  • You can also fix a dial indicator in any position by mechanically clamping the articulated arm.

Xem thêm Chân đế Mitutoyo tại đây.
