Chân đế từ gá đồng hồ so 7033B
ø6mm, ø8mm, ø9.53mm (3/8”)

Liên hệ
Đế 7033B
Mitutoyo
Liên hệ

Cho phép đặt hàng trước

Catalogue

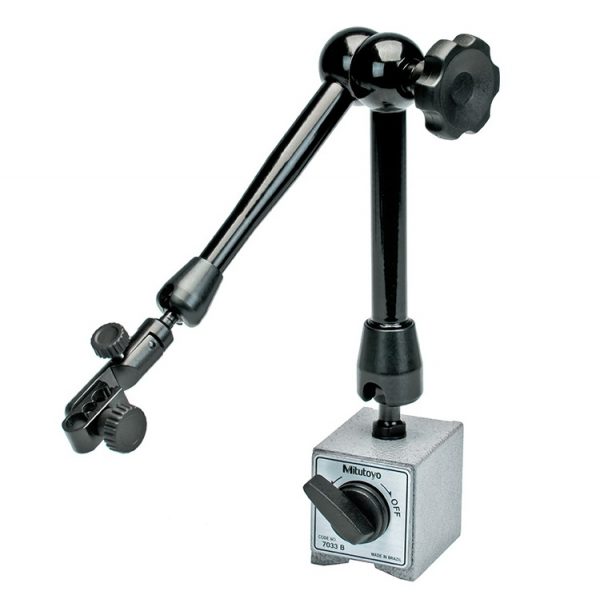

Chân đế gá đồng hồ so 7033B

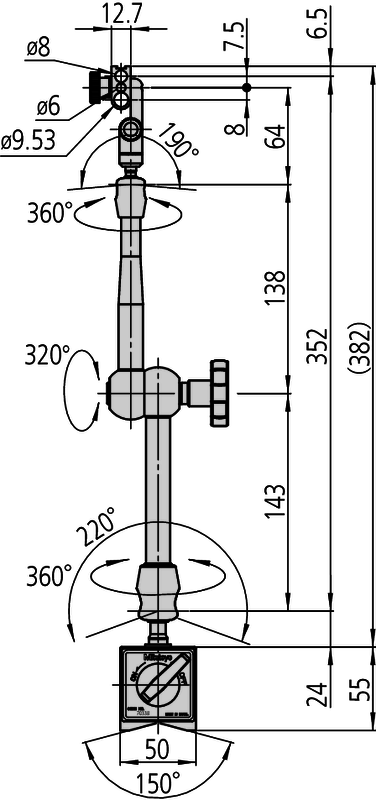

 Thông số chân đế 7033B



7033B.eps

Clamping device:
magnetic
Magnetic force (vertical):
600 N
Base size
(LxWxH):
59 x 50 x 55 mm
Total height:
425 mm
Fine adjustment °:
±4
Stem hole ø:
6 mm, 8 mm, 9.53 mm
Working radius:
352 mm
Thread Arm/Base:
M8 x 1.25
Mass:
1.75 kg

This jointed magnetic stand offers you the following benefits:

  • It comes with a mechanical locking system and allows fine adjustment.
  • You can also fix a dial indicator in any position by mechanically clamping the articulated arm.
