Đồng hồ đo độ dày 547-313
0-10mm

Liên hệ
547-313.
Mitutoyo
Liên hệ

Cho phép đặt hàng trước

Catalogue

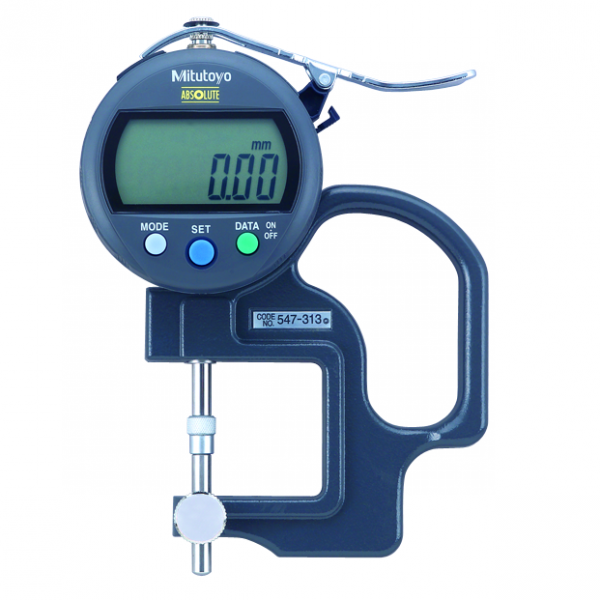

Đồng hồ đo độ dày 547-313

 Thông số đồng hồ 547-313



547-313.eps


Max. measuring depth:
30 mm
Type:
Adjustable anvil, interchangeable
Inch-Metric:
Metric
Range:
0 – 10 mm
Data output:
Yes
Digital step:
0,01 mm
Mass:
275 g
Measuring force:
≤ 1,5 N
Scale:
Capacitance type ABSOLUTE linear encoder
Parallelism:
10 µm mm
Max. response speed:
Unlimited
Contact point:
Thread M 2.5 x 0.45 mm
Alarm:
Low voltage, counting value composition error, overflow error, tolerance limit setting error (ID-C only)
Power supply:
1 battery SR-44
Battery life:
approx. 7000 hours
Accuracy:
±10 µm
(excluding quantizing error)
PRESET:
Yes
Counting direction switchable:
Yes
ZERO/ABS:
Yes
GO/±NG judgement:
Yes
Digimatic data output:
Yes
ON/OFF:
Yes
DATA (output with cable) / HOLD (display value):
Yes
Lock function:
Yes
Calculation function (with formula):
Yes

FEATURES

The Thickness Gages offer a quick and efficient means of inspection with their convenient grip handle, thumb trigger and spring-loaded spindle. The various models cover a wide range of applications.

  • Wide range of applications with various types of measuring faces (on the spindle and anvil).
  • The digital models incorporate Mitutoyo’s popular ID-C and ID-S Series Digimatic Indicators to provide error-free LCD readings as well as data output for SPC analysis
