Đồng hồ so chân gập
513-415-10E
1 mm

Liên hệ
Đồng hồ 513-415-10E
Mitutoyo
Liên hệ

Cho phép đặt hàng trước

Catalogue

Đồng hồ so chân gập 513-415-10E

 Thông số kỹ thuật đồng hồ so 513-415-10E

513-415-10E.eps
L1
[mm]:
44,5
L2
[mm]:
41
L3
[mm]:
27
Ø D:
40 mm



Range:
1 mm
Graduation:
0.01 mm
Scale:
0-50-0
Mass:
45 g
Contact point:
Thread M 1.7 x 0.35
Long stylus:
Yes
Delivered:
In a box with stem ø8 mm, stylus ø2 mm
MPE any half revolution:
8
Inch-Metric:
Metric
Hysteresis:
4
Repeatability:
3
Digital/Analog:
Analog

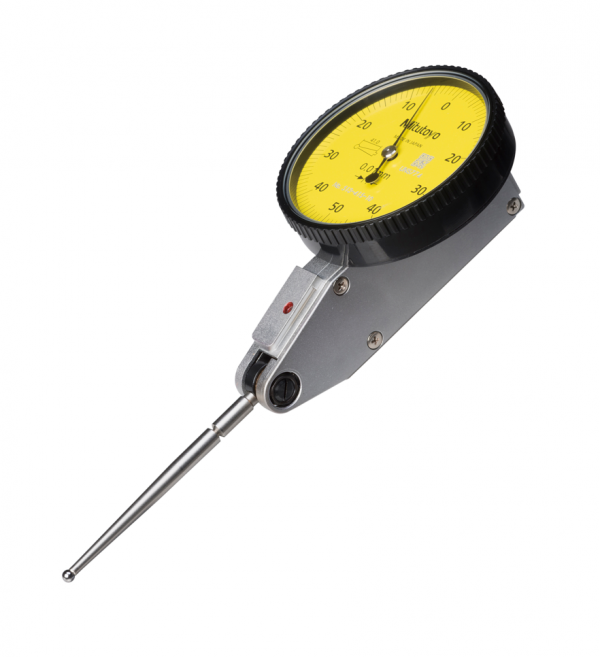

This is a Dial Test Indicator (Lever Type) which offers you the following benefits:

  • Drastically enhanced durability, sensitivity and visibility.
  • Glare-free flat crystal face allows easy reading of graduations.
  • O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
  • The stylus length is on the dial face to reorder a replacement
  • Multi-layer coatings on the crystal.
