Đồng hồ so chân gập
513-464-10E
0,8 mm/0,01mm

Liên hệ
Đồng hồ 513-646-10E
Mitutoyo
Liên hệ

Cho phép đặt hàng trước

Catalogue

Đồng hồ so chân gập 513-464-10E

 Thông số kỹ thuật đồng hồ so 513-464-10E

513-464-10E.eps
L1
[mm]:
20,9
L2
[mm]:
17,4
Ø D:
29.2 mm



Range:
0,8 mm
Graduation:
0.01 mm
Scale:
0-40-0
Mass:
41 g
Contact point:
Thread M 1.7 x 0.35
Compact type:
Yes
Delivered:
In a box with stem ø8 mm, stylus ø2 mm
MPE any half revolution:
6
Inch-Metric:
Metric
Hysteresis:
3
Repeatability:
3
Digital/Analog:
Analog

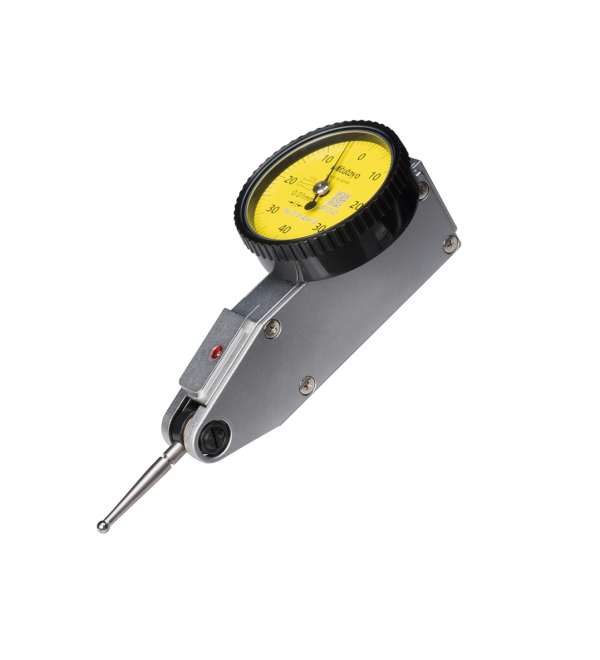

This is a Dial Test Indicator (Lever Type) which offers you the following benefits:

  • Drastically enhanced durability, sensitivity and visibility.
  • Glare-free flat crystal face allows easy reading of graduations.
  • O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
  • The stylus length is on the dial face to reorder a replacement
  • Multi-layer coatings on the crystal.
