Đồng hồ so cơ khí
2929S-60
0,8mm ; 0,01mm

Liên hệ
Đồng hồ 2929S-60
Mitutoyo
Liên hệ

Cho phép đặt hàng trước

Catalogue

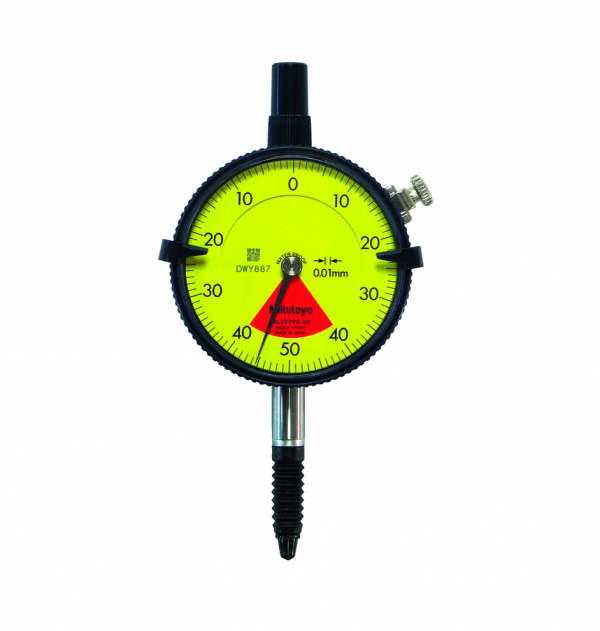

Đồng hồ so cơ khí 2929S-60

 Thông số kỹ thuật đồng hồ so 2929S-60

2929S-60.ai
F:
12.3 mm
I:
7.6 mm
Scale:
40-0-40
Inch-Metric:
Metric
Range:
0.8 mm
Graduation:
0.01 mm
MPE any 1/10
revolution:
5 µm
Mass:
146 g
C:
57 mm
D:
17.7 mm
E:
20 mm
G:
29.2 mm
Stem:
8 mm
Contact point:
Carbide tipped, thread: M 2.5 x 0.45 mm
Delivered:
with certificate of inspection, limit indicators
One revolution:
Yes
Shockproof:
Yes
IP64:
Yes
Range:
7 µm
Digital/Analog:
Analog
H MPE (Hysteresis):
3 µm
R MPE (Repeatability):
3 µm

This is a one revolution, metric dial indicator. It offers you the following benefits:

  • Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed without tools.
  • No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.
  • It eliminates the possibility of reading errors due to miscounting multiple revolutions.
