Đồng hồ so điện tử
543-563D
60,9mm ; 0,0005mm

Liên hệ
Đồng hồ 543-563D
Mitutoyo
Liên hệ

Cho phép đặt hàng trước

Catalogue

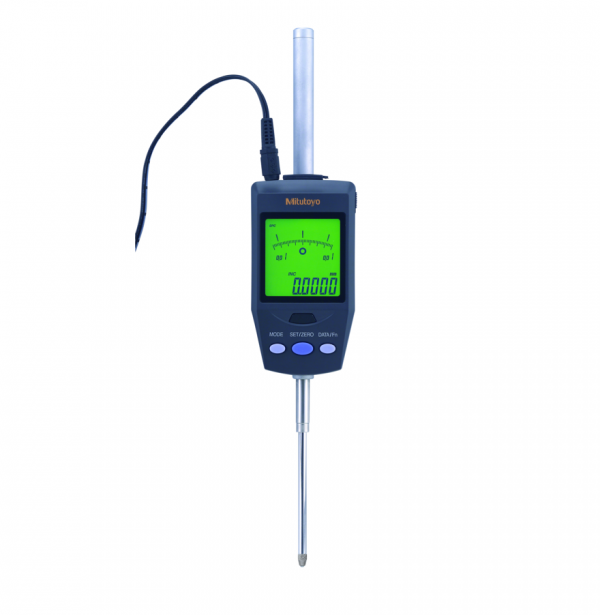

Đồng hồ so điện tử 543-563D

 Thông số kỹ thuật đồng hồ so 543-563D

543-563D.eps
Range:
60.9 mm
Inch-Metric:
Metric
Digital step:
0,0005 mm/0,001 mm
Max. Permissible Error (Total Range):
0,0025 mm
H MPE (Hysteresis):
0,0025 mm
Type:
EN ISO Standard
Mass:
305 g
Data output:
Yes
Measuring force:
≤2,5 N N
Digital step:
Switchable, 0,0005 mm / 0,001 mm
Scale:
Photoelectric linear encoder
Max. response speed:
1000 mm/s
Stem Ø:
8 mm
Contact point:
Carbide ball, thread M 2.5 x 0.45 mm
Alarm:
Counting value composition error, overflow error, tolerance setting error
Power supply:
AC adapter 6 V DC, 2A
Display:
LCD, character height: 9.5 mm
Protection:
IP30
Max. response speed:
1000 mm/s
Remarks:
RS-232 input / output is applicable with appropriate connecting cable (1m: 21EAA130 or 2m: 21EAA131).
Delivered:
Including AC-Adapter, spindle lifting handle
PRESET:
Yes
Counting direction switchable:
Yes
ZERO:
Yes
GO/±NG judgement:
Yes
Digimatic data output:
Yes
ON/OFF:
Yes
DATA(output with cable)/HOLD(display value):
Yes
Lock function:
Yes
Selectable resolution:
Yes
Max/Min/Runout value:
Yes
RS-232C Output/Input:
Yes
RS-232C Input*:
Yes
Analog bar resolution switchable:
Yes
Function lock:
Yes
Digital/Analog:
Digital

This is a superior multi-function indicator that gives you high accuracy and high resolution of 0.0005mm.
The Digimatic Indicator ID-H offers you the following benefits:

  • 2-colour LCD backlight (green and red) provides you with visual GO/±NG tolerance judgement and analogue bar-graph display.
  • You can display the maximum, minimum or range (runout value).
  • Lifting mechanism over 30mm with cable release (optional).
  • You can carry out zero-setting and presetting with the optional remote controller, without having to touch the indicator.
  • The remote control system can be implemented in advance with the built-in RS-232 interface and a PC.
  • External power supply via AC-Adapter.
