    543-575
    12,7mm ; 0,001mm

Đồng hồ so điện tử
543-575
12,7mm ; 0,001mm

Liên hệ
Đồng hồ 543-575
Mitutoyo
Liên hệ

Cho phép đặt hàng trước

Mua ngay

Catalogue

+84 243 202 3000

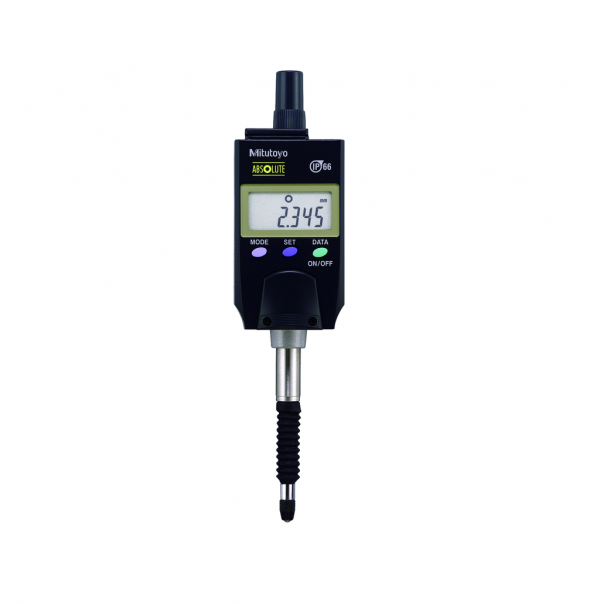

Đồng hồ so điện tử 543-575

 Thông số kỹ thuật đồng hồ so 543-575

543-575.eps

Range:
12.7 mm
Digital step:
0,01/0,001 mm
Inch-Metric:
Metric
Max. Permissible Error (Total Range):
0,003 mm
H MPE (Hysteresis):
0,002 mm
Type:
EN ISO Standard
Mass:
130 g
Data output:
Yes
Measuring force:
≤2,5 N N
Scale:
Capacitance type, ABSOLUTE linear encoder
Max. response speed:
Unlimited
Stem Ø:
8 mm
Contact point:
Carbide ball, thread M 2.5 x 0.45 mm
Alarm:
Low voltage, counting value composition error, overflow error, tolerance limit setting error
Power supply:
1 battery SR-44
Battery life:
approx. 7000 hours
Display:
LCD, character height: 6.2 mm
Protection:
IP66
Max. response speed:
Unlimited
Delivered:
Including 1 battery
PRESET:
Yes
Low voltage alarm:
Yes
Counting direction switchable:
Yes
GO/±NG judgement:
Yes
Digimatic data output:
Yes
ON/OFF:
Yes
DATA(output with cable)/HOLD(display value):
Yes
External
PRESET / ZERO:
Yes
Digital/Analog:
Digital

This is a slim back-plunger model that is highly resilient and robust.
The ABSOLUTE Digimatic Indicator ID-N offers you the following benefits:

  • It slim body design is ideal for multi-point measurements.
  • The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
  • It has excellent resistance against water and dust (IP66 protection level) allowing you to use it in machining situations that include splashing coolant fluid.
  • Switchable display orientation gives you more mounting options.
  • You can perform GO/±NG judgement by setting the upper and lower tolerances.

Xem thêm đồng hồ so tại đây.
