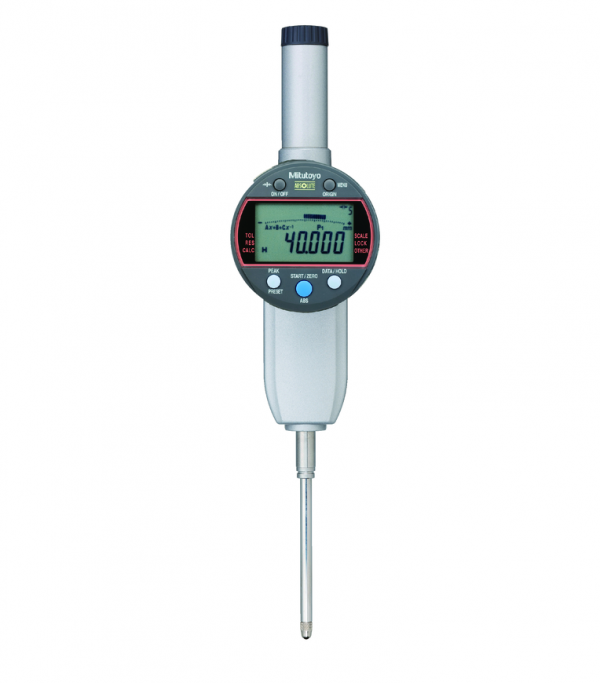

Thông số kỹ thuật đồng hồ so 543-595B
|
Range:
|
50,8 mm
|
|
Repeatability:
|
0,002 mm
|
|
Inch-Metric:
|
Metric
|
|
Range:
|
50,8 mm mm
|
|
Max. Permissible Error (Total Range):
|
0,006 mm
|
|
Hysteresis:
|
0,002 mm
|
|
Type:
|
EN ISO Standard
|
|
Mass:
|
260 g
|
|
Data output:
|
Yes
|
|
Measuring force:
|
≤2,3 N N
|
|
Scale:
|
Capacitance type, ABSOLUTE linear encoder
|
|
Max. response speed:
|
Unlimited
|
|
Stem Ø:
|
8 mm
|
|
Contact point:
|
Carbide ball, thread M 2.5 x 0.45 mm
|
|
Alarm:
|
Low voltage, ABS composition error, overflow error, tolerance limit setting error
|
|
Power supply:
|
1 battery CR-2032
|
|
Battery life:
|
Standard mode: approx. 1 year
fast mode: approx. 4.5 month |
|
Digital step:
|
0,001 mm
|
|
Display:
|
LCD, character height 8 mm, rotatable 330°
|
|
Protection:
|
IP42
|
|
Max. response speed:
|
Unlimited
|
|
Measurement frequency (MAX/MIN/RANGE):
|
Standard mode: 10 times/s
fast mode: 50 times/s (plunger speed max. 50 µm/s for peak measurement) |
|
Delivered:
|
Including 1 battery
|
|
Low voltage alarm:
|
Yes
|
|
ZERO/ABS:
|
Yes
|
|
GO/±NG judgement:
|
Yes
|
|
Digimatic data output:
|
Yes
|
|
ON/OFF:
|
Yes
|
|
DATA (output with cable) / HOLD (display value):
|
Yes
|
|
MAX/MIN/RANGE:
|
Yes
|
|
Lock function:
|
Yes
|
|
Selectable resolution:
|
Yes
|
|
Fast measurement mode:
|
yes
|
|
Calculation function (with formula):
|
Yes
|
|
PRESET 3x:
|
Yes
|
|
Analog bar resolution switchable:
|
Yes
|
|
Function lock:
|
Yes
|
|
Power supply report:
|
UN 38.3 Test Summary Report
|
|
Digital/Analog:
|
Digital
|
This indicator allows you to use a calculation function for the measured value Ax+B+Cx-1
