Đồng hồ so điện tử
543-781
12,7mm ; 0,01mm

Liên hệ
Đồng hồ 543-781
Mitutoyo
Liên hệ

Cho phép đặt hàng trước

Catalogue

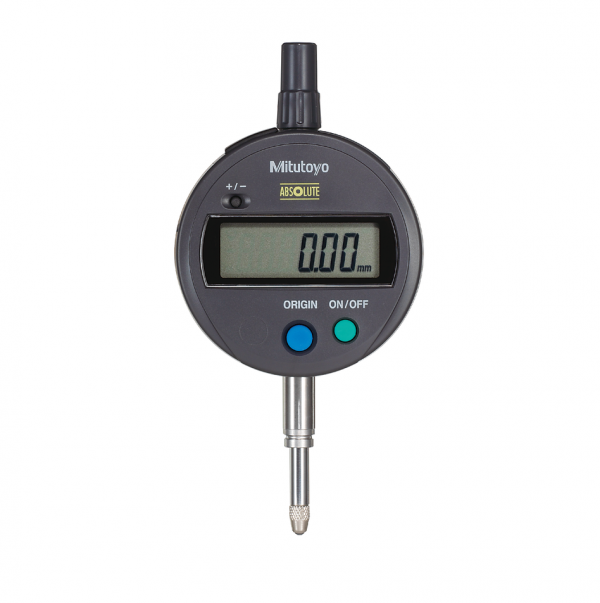

Đồng hồ so điện tử 543-781

 Thông số kỹ thuật đồng hồ so 543-781

543-781.ai

Range:
12.7 mm
Digital step:
0,01 mm
Repeatability:
0,01 mm
Inch-Metric:
Metric
H MPE (Hysteresis):
0,02 mm
Type:
EN ISO Standard
Mass:
150 g
Data output:
Yes
Measuring force:
≤ 1,5 N
Scale:
Capacitance type, ABSOLUTE linear encoder
Max. response speed:
Unlimited
Stem Ø:
9,52 mm
Contact point:
Carbide ball, thread M 2.5 x 0.45 mm
Alarm:
Low voltage, counting value composition error
Power supply:
1 battery SR-44
Battery life:
approx. 18000 hours (0.001 mm type),
approx. 20000 hours (0.01 mm type)
Display:
LCD, character height 9 mm
Protection:
IP42
Max. response speed:
Unlimited
Delivered:
Including 1 battery
Low voltage alarm:
Yes
Counting direction switchable:
Yes
ORIGIN (ABS-Zero):
Yes
Digimatic data output:
Yes
ON/OFF:
Yes
Digital/Analog:
Digital

This is a standard model of indicator that is reliable and easy to use.
The ABSOLUTE Digimatic Indicator ID-S offers you the following benefits:

  • The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
  • You can access all functions by using the large, user-friendly buttons on the front of the indicator.
  • Large character height of 9 mm provides good readability.
  • Exceptional battery life.
