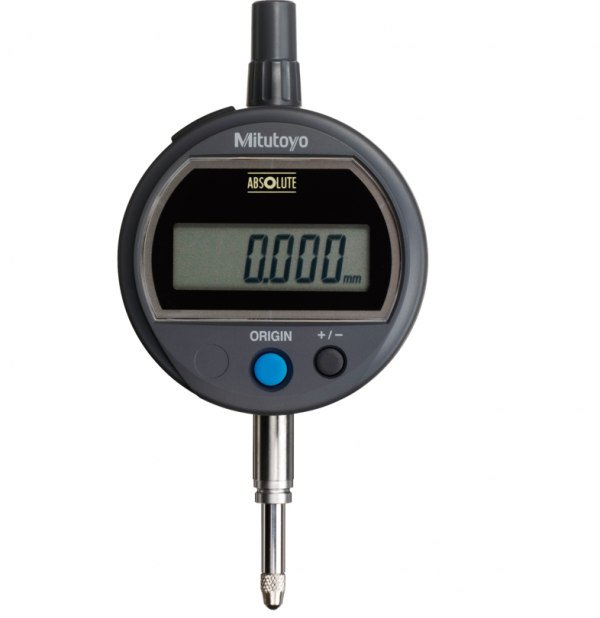

Đồng hồ so quang năng 543-500
12,7mm/ 0,001 mm

Giá: Liên hệ

Mã:540-500

Nhà sản xuất:Mitutoyo

Tình trạng:Liên hệ

Cho phép đặt hàng trước

Xem thêm:

Đồng hồ so quang năng 543-500

Thông số kỹ thuật đồng hồ so 543-500

Range:	12.7 mm
Digital step:	0,001 mm
Repeatability:	0,002 mm
Inch-Metric:	Metric
Range:	12,7 mm mm
Data output:	Yes
Max. permissible error of indication:	0,003 mm
Hysteresis:	0,002 mm
Mass:	150 g
Scale:	Capacitance type, ABSOLUTE linear encoder
Max. response speed:	Unlimited
Stem Ø:	8 mm
Contact point:	Carbide ball, thread M 2.5 x 0.45 mm
Alarm:	Counting value composition error
Power supply:	Solar cell usable from 40 Lux illumination
Display:	LCD, character height 9 mm
Protection:	IP-40
Max. response speed:	Unlimited
Remarks:	This digital indicator has data output but no integrated data button so for USB Input Tool Direct Cable (see optional accessory) the USB-ITPAK Software is required.
Counting direction switchable:	Yes
ORIGIN (ABS-Zero):	Yes
Digimatic data output:	Yes
Digital/Analog:	Digital

The ABSOLUTE Digimatic Solar Indicator ID-SS offers you the following benefits:

The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
There‘s no battery to change.
The solar cell is operates from just 40 Lux.
Super-capacitor charge storage enables you to work in low-level lighting conditions of less than 40 Lux.
You can access all functions by using the large,
user-friendly buttons on the front of the indicator.
Large character height of 9 mm provides good readability.

Xem thêm Đồng hồ so tại đây.
