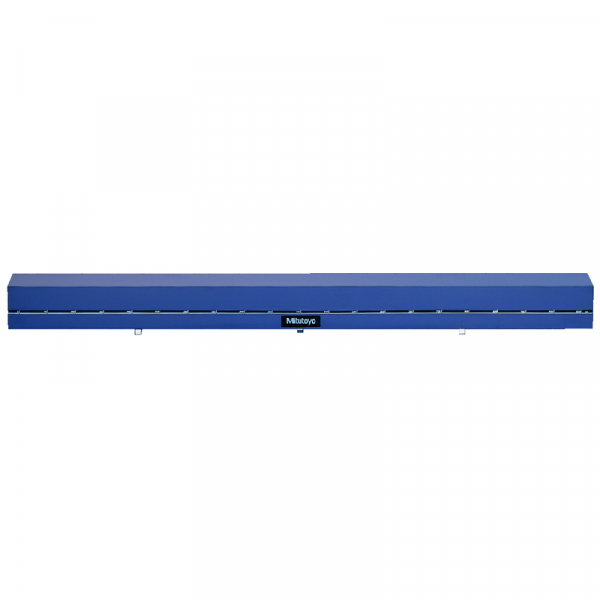

Dưỡng đo độ thẳng bằng sứ 311-359
1300 mm

Giá: Liên hệ

Mã:Dưỡng 311-359

Nhà sản xuất:Mitutoyo

Tình trạng:Liên hệ

Cho phép đặt hàng trước

Xem thêm:

Dưỡng đo độ thẳng bằng sứ 311-359

Thông số Dưỡng đo độ thẳng bằng sứ 311-359

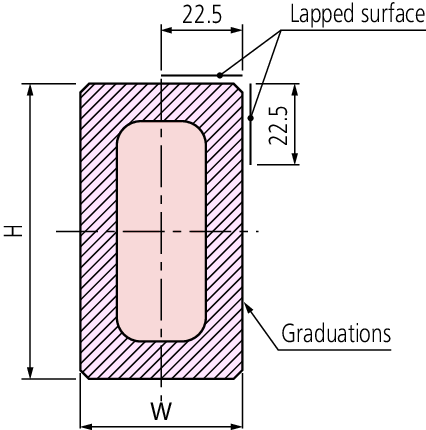

311-359.eps

Size (L x W x H)	1340 x 45 x 80mm
Length [mm]:	1300 mm
Straightness:	1.5 µm
Mass:	10 kg
Delivered:	In a wooden box, with calibration certificate, 3pcs. support blocks (ceramic), gloves
Double faced model:	With two reference faces for checking straightness in two orthogonal directions
Graduation:	50 mm step scala
Inch-Metric:	Metric

The CERA Straight master is used for inspecting the straightness of travel of moving elements and offers you the following benefits:

You can use it on equipment such as machine tools, CMMs, form measuring machines and semiconductor related equipment.
It has precision lapped reference surfaces.
Three types are available: high accuracy, ultra high accuracy and a double face model.
