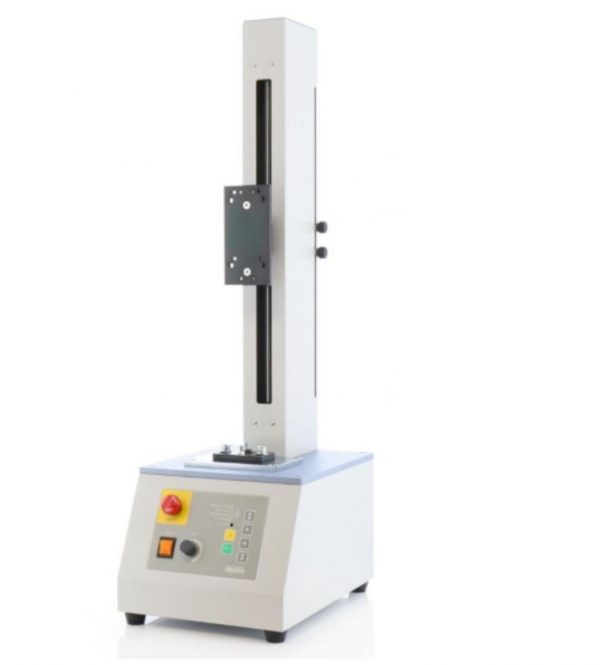

Giá đỡ máy đo lực IMADA
MX-1000N

Liên hệ
MX-1000N .
IMADA
Liên hệ

Cho phép đặt hàng trước

Catalogue

Features of IMADA MX-1000N Test Stand

  • Achieves high repeatability with constant testing speed and position
  • Performs in 3 modes, including continuous cycle mode for repetitive testings
  • Handles a wide range of testing applications to meet your testing requirements with options such as -S (length scale) and -L (long stroke)*-L option only available for IMADA MX-1000N
  • Offers overload prevention and force control function when connected with force gauge*Activated when ZTS/ZTA series force gauge and CB-508 cable are used together
Model  MX-1000N
Capacity  1000N
Speed  8-240mm/min
Max. Sample Height *1  Approx. 420mm
Stroke Limit  Controllable with upper and lower knob
Measuring Modes  Manual mode, Single cycle mode, Continuous cycle mode
Functions  Emergency stop, force control (*2), overload prevention (*2, *3)
Operating temperature
humidity
0 to +40 degree Celsius
35 to 70% (avoid condensation)
Voltage  AC100 to 240V, 50/60Hz
(Select from 100, 120 and 230V. Accessories are provided accordingly.)
Power Consumption
Weight  Approx. 24kg
Accessories  Operation manual, power cable, spare fuse, tools
GF-2 (Grip mounting adaptor)
Available Options
*4*5*6
-E: Speed and length meter
-S: Length scale
-L: Extended stroke by 250mm
-V120: Speed 4 to 120mm/min
-V400: Speed 15 to 400mm/min
-V600: Speed 20 to 600mm/min
-V800: Speed 27 to 800mm/min
-V1200: Speed 40 to 1200mm/min
Mountable
Force Gauge
*7
Mechanical Force Gauge: FB, PS, PSM series
Digital Force Gauge: DST, DSV, ZTS, ZTA series (Up to 1000N)
Mechanical Force Gauge: PSH series
Digital Force Gauge: ZTS, ZTA series (Over
2500N)
